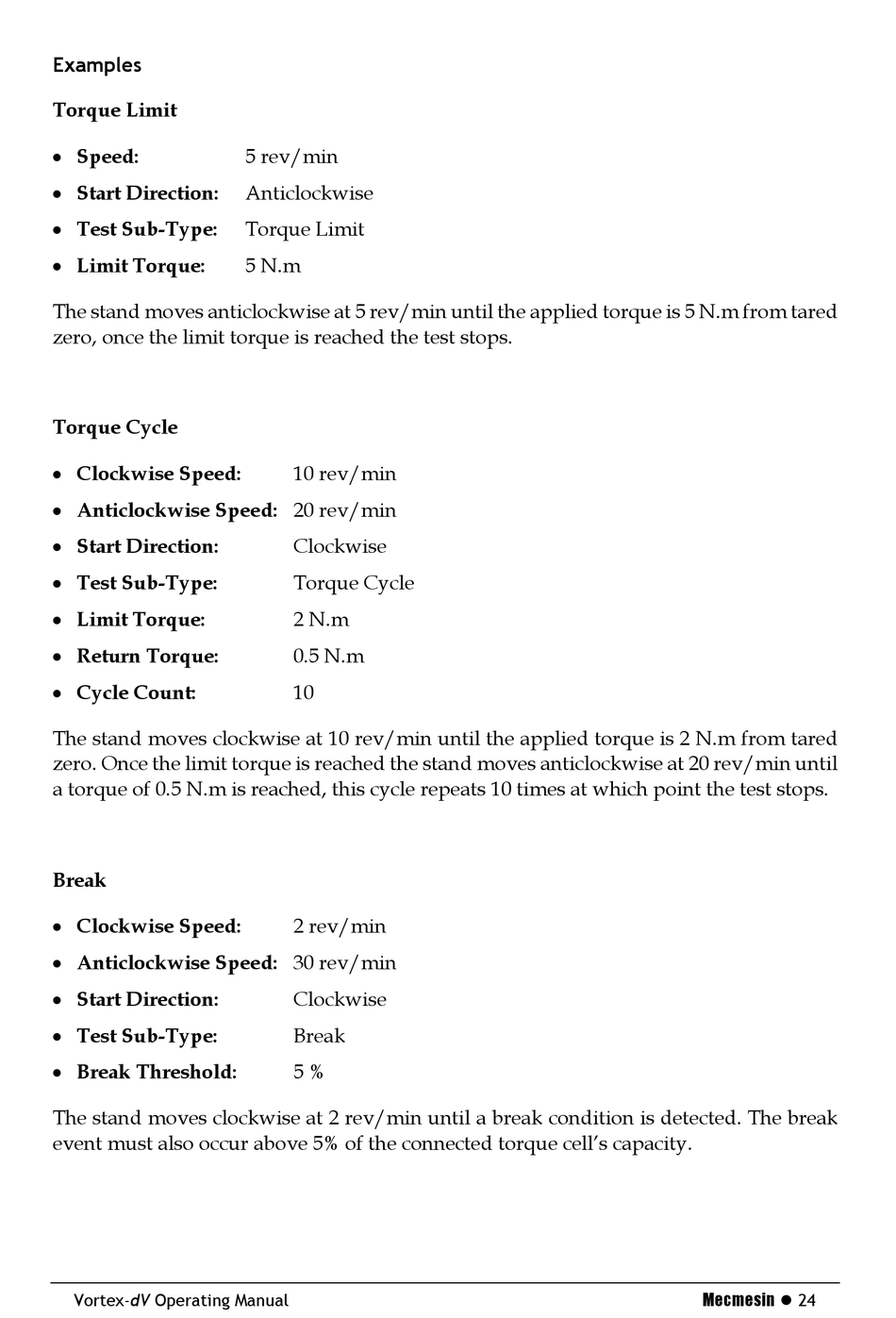

Examples

Torque Limit
 Speed:
 Start Direction:
 Test Sub-Type:
 Limit Torque:
The stand moves anticlockwise at 5 rev/min until the applied torque is 5 N.m from tared
zero, once the limit torque is reached the test stops.
Torque Cycle
 Clockwise Speed:
 Anticlockwise Speed: 20 rev/min
 Start Direction:
 Test Sub-Type:
 Limit Torque:
 Return Torque:
 Cycle Count:
The stand moves clockwise at 10 rev/min until the applied torque is 2 N.m from tared
zero. Once the limit torque is reached the stand moves anticlockwise at 20 rev/min until
a torque of 0.5 N.m is reached, this cycle repeats 10 times at which point the test stops.
Break
 Clockwise Speed:
 Anticlockwise Speed: 30 rev/min
 Start Direction:
 Test Sub-Type:
 Break Threshold:
The stand moves clockwise at 2 rev/min until a break condition is detected. The break
event must also occur above 5% of the connected torque cell's capacity.
Vortex-dV Operating Manual
5 rev/min
Anticlockwise
Torque Limit
5 N.m
10 rev/min
Clockwise
Torque Cycle
2 N.m
0.5 N.m
10
2 rev/min
Clockwise
Break
5 %
Mecmesin  24
