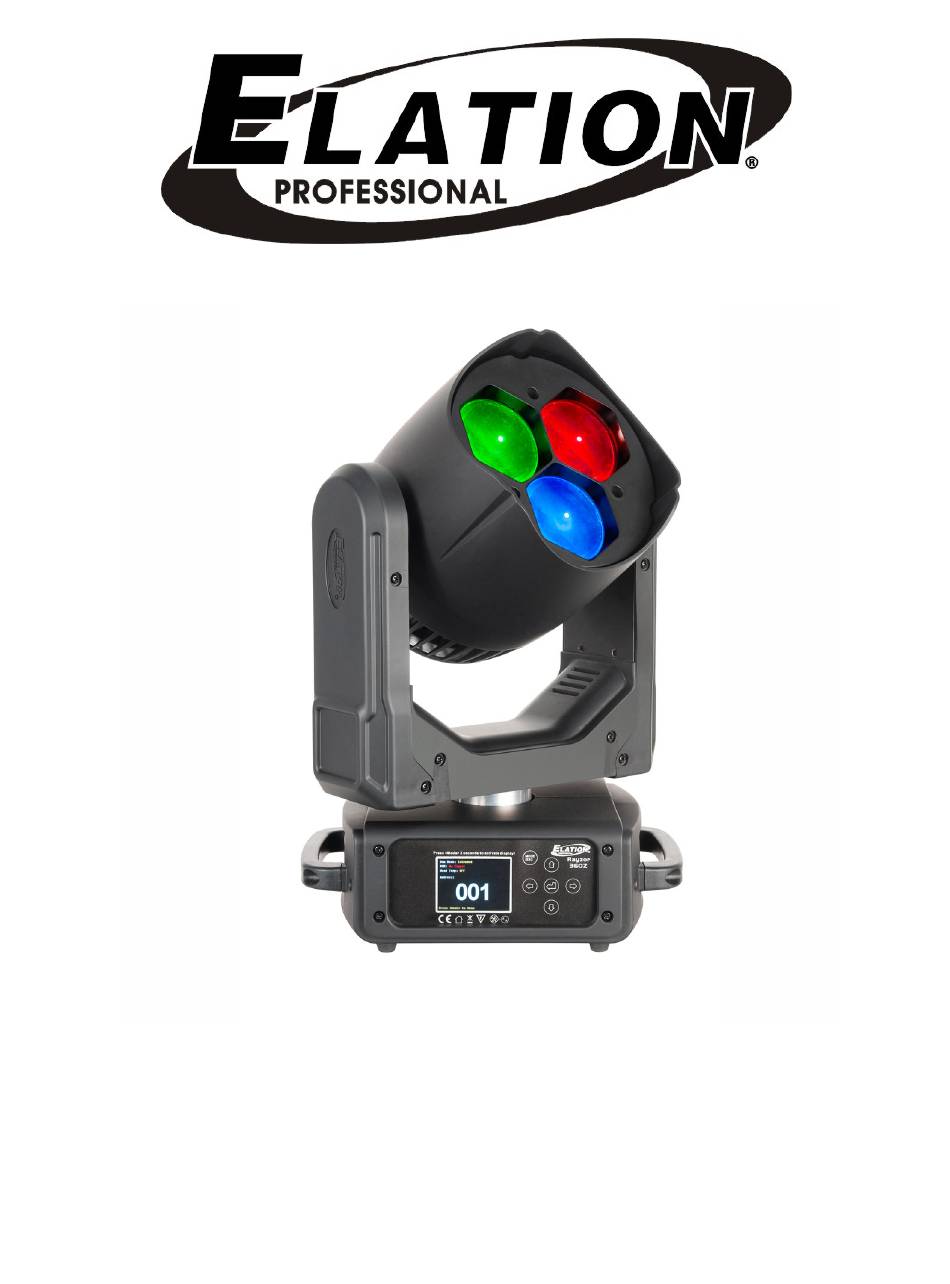

  • Page 1 RAYZOR 360Z™ user manual...
  • Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Installation Guidelines System Menu DMX Channel Functions and Values LED Pixel Control Error Codes Specifications Optional Accessories...

  • Page 4: General Information

    BOX CONTENTS Omega Bracket Power Cable CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Limited Warranty (Usa Only)

    B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 9: Fixture Overview

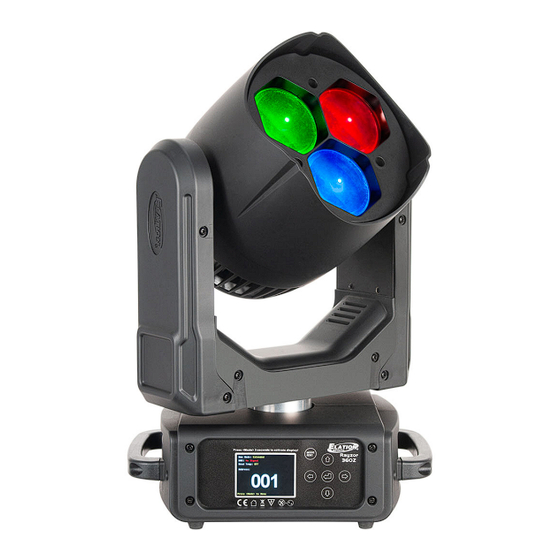

    F I X T U R E O V E R V I E W 1. LED Lens Array 2. LCD Menu Function Display 3. MODE/ESC Button 4. ENTER Button 5. LEFT Button 6. DOWN Button 7. RIGHT Button 8. UP Button 9.

  • Page 10: Installation Guidelines

    I N S T A L L A T I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 11 I N S T A L L A T I O N G U I D E L I N E S OMEGA BRACKET INSTALLATION Insert the Omega Bracket into the matching holes on the bottom of the fixture. Secure the Omega Bracket to the fixture by turning each quick-lock fastener ¼...
  • Page 12 I N S T A L L A T I O N G U I D E L I N E S CLAMP INSTALLATION When mounting fixture to truss, be sure to secure an appropriately rated professional grade rigging clamp to the included Omega Bracket using an M10 screw fitted through the center hole of the Omega Bracket.
  • Page 13 LEDs. This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 14: System Menu

    S Y S T E M M E N U The fixture includes an easy to navigate system menu. The control panel (see image below) located on the front of the fixture, provides access to the main system menu and is where all necessary system adjustments are made to the fixture.
  • Page 15 ELATION RAYZOR 360Z S Y S T E M M E N U Features are subject to change without any prior written notice. Supports Software Versions: ≥ 2.0.1 MAIN MENU SUB MENU OPTIONS / VALUES (Default Settings in BOLD) Set DMxX Address...
  • Page 16 ELATION RAYZOR 360Z S Y S T E M M E N U Features are subject to change without any prior written notice. Supports Software Versions: ≥ 2.0.1 MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD)
  • Page 17 PERSONALITY - Status Settings - Address Via DMX When ON, define the desired DMX address via an external controller. 1.   Connect the fixture to the external controller and power ON. 2.   Set the DMX value of Channel 1 on the controller to (7). 3.
  • Page 18 PERSONALITY - Dimming Modes Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre). PERSONALITY - Reset Default (011) ONLY QUALIFIED TECHNICIANS SHO ULD PERFORM THI S FUNCTION. NOTE: SAVED WHITE BALANCE IS ERASED AFTER A RESET IS PERFORMED. This function restores all fixture settings to the factory default settings. The password is 011 and must be entered each time a reset is performed.
  • Page 19 EFFECT ADJUST – Calibration ONLY QUALIFIED TECHNICIANS SHO ULD PERFORM THI S FUNCTION. This function allows small adjustments to be made to the Pan, Tilt, and Zoom movements to compensate for ware or in the event a sensor has been knocked slightly out of place. Because improper use of this function can result in undesired operation this function has been password protected.
  • Page 20 EDIT PROGRAM – Record Controller – Working With Built-In Program [continued] To start an Auto Program proceed as follows: 1. Slave Setting • Select “Function Mode”. • Press ENTER to confirm. • Select “Set to Slave”. • Press ENTER to confirm. •...
  • Page 21 EDIT PROGRAM – Record Controller – Working With Built-In Program [continued] 4. Program Selection for Edit Program • Select “Edit Program”. • Press ENTER to confirm. • Select “Edit Program”. • Press ENTER to confirm. • Select the desired program to edit specific scenes into a specific program. •...
  • Page 22 WHITE BALANCE SETTING This feature provides the ability to individually adjust the maximum dimmer intensity for each LED color (Red, Green, Blue, White, Amber, Cyan, U.V.) and store these values as a White Balance preset. This can be a useful tool when the output intensity of a group of same model fixtures with varying usage times, needs to be calibrated to match as much as possible.

  • Page 23: Dmx Channel Functions And Values

    D M X C H A N N E L F U N C T I O N S A N D V A L U E S ELATION RAYZOR 360Z DMX Channel Values / Functions (32 DMX Channels) Supports Software Versions: ≥ 2.0.1 Features are subject to change without any prior written notice.
  • Page 24 ELATION RAYZOR 360Z DMX Channel Values / Functions (32 DMX Channels) Supports Software Versions: ≥ 2.0.1 Features are subject to change without any prior written notice. *Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.
  • Page 25 ELATION RAYZOR 360Z DMX Channel Values / Functions (32 DMX Channels) Supports Software Versions: ≥ 2.0.1 Features are subject to change without any prior written notice. *Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

  • Page 26: Led Pixel Control

    ELATION© RAYZOR 360Z™ DMX Channel Values / Functions (32 DMX Channels) Supports Software Versions: ≥ 2.0.1 Features are subject to change without any prior written notice. *Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings.

  • Page 27: Error Codes

    E R R O R C O D E S When power is applied, the unit will automatically enter a “Reset/Test” mode. This mode brings all the internal motors to a home position. If there is an internal problem with one or more of the motors an error code will flash in the display in the form of “XXer”...

  • Page 28: Specifications

    S P E C I F I C A T I O N S SOURCE (3) 60W Osram™ RGBW LEDs 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. EFFECTS Motorized Zoom Fill RGBW Pixel Control...
  • Page 29 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
  • Page 30 DIMENSIONAL DRAWINGS Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

  • Page 31: Optional Accessories

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp DRCZ360Z 4-Pack Road Case For RAYZOR 360Z AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable CAT6PRO5 5 ft. (1.5m) CAT6 EtherCON Cable NEU088 3 ft.
