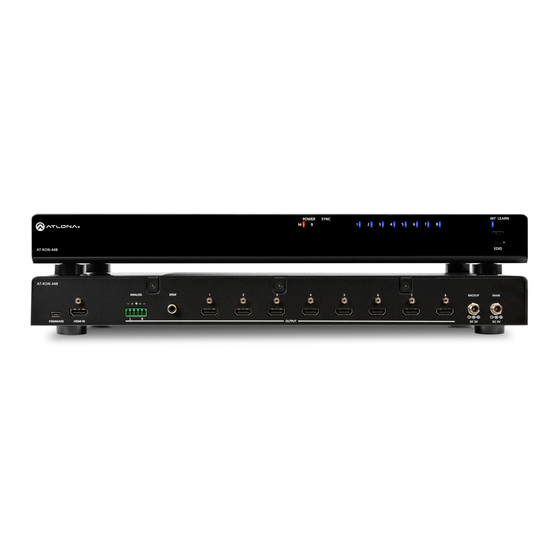

4K HDR Eight-Output HDMI Distribution Amplifier
AT-RON-448
The Atlona Rondo™ series are HDMI distribution amplifiers for high dynamic range (HDR)
formats. They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma
sampling, as well as HDMI data rates up to 18 Gbps. The Rondo series are ideal for applications
requiring the latest as well as emerging 4K/UHD and HDR sources and displays. They are
compatible with all video resolutions, audio formats, and color space formats supported in the
HDMI 2.0a specification, plus the ability to pass metadata for HDR content. The Rondo Series
HDMI distribution amplifiers include EDID management features, front panel LED indicators
for power and signal status, and the capability to cascade several units without compromising
performance.
Package Contents
1 x AT-RON-448
1 x 5 V DC power supply
1 x Captive screw connector, 5-pin
2 x Rack ears
4 x Rubber feet
4 x Screws
1 x Installation guide
IMPORTANT: Visit http://www.atlona.com/product/AT-RON-448 for the latest firmware
updates.
1
Installation Guide
AT-RON-448
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-RON-448
Summary of Contents for Atlona AT-RON-448
-
Page 1: Installation Guide
4K HDR Eight-Output HDMI Distribution Amplifier AT-RON-448 The Atlona Rondo™ series are HDMI distribution amplifiers for high dynamic range (HDR) formats. They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The Rondo series are ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. -
Page 2: Panel Descriptions
“internal” and “learn” modes. that is on a different circuit than the main power supply. Additional power supplies Connect a mini USB cable to this port to can be purchased through Atlona. update the firmware. -
Page 3: Installation
Side View Unbalanced Installation Connect an HDMI cable from the UHD/HD source to the HDMI IN port on the AT-RON-448. Connect up to eight display/sink devices to the HDMI OUT ports on the rear panel of the AT-RON-448. OPTIONAL: Connect the included 5-pin captive screw connector from the ANALOG port to the input of an analog output device. -
Page 4: Mounting Instructions
LEARN LED will blink. EDID learn is complete when the LEARN LED glows solid blue. Mounting Instructions The AT-RON-448 provides two rack ears, which can be used to mount the unit in a standard rack unit. Rack installation Remove the front two case screws from the sides of the case. - Page 5 Installation Guide AT-RON-448 Attach the included rack ears to each side of the AT-RON-448 using the case screws. L E A IN T L E A IN T N - 4 - R O Install the AT-RON-448 into a rack, using four rack screws.
- Page 6 AT-RON-448 Free-standing The AT-RON-448 can be placed freestanding on top of a desk, a table, or in a cabinet. To prevent damage to the surfaces or unnecessary movement of the unit, four feet have been included. Turn the unit upside down.
-
Page 7: Connection Diagram
Installation Guide AT-RON-448 Connection Diagram L E A IN T AT-RON-448 L E A IN T N -4 -R O Laptop HD/UHD Displays... -
Page 8: Troubleshooting
