4K HDR Two/Four-Output HDMI
AT-RON-442 & AT-RON-444 Installation Guide
Please check http://www.atlona.com/AT-RON-442 or
http://www.atlona.com/AT-RON-444 for the most recent
The Atlona Rondo™ series are HDMI distribution amplifiers for high dynamic range (HDR) formats.
They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as
well as HDMI data rates up to 18 Gbps. The Rondos are ideal for applications requiring the latest
as well as emerging 4K/UHD and HDR sources and displays. They are compatible with all video
resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus
the ability to pass metadata for HDR content.
Package Contents
AT-RON-442
• 1 x Unit
• 1 x Female captive screw connector
2 pin: Power
• 2 x Rack ears
• 4 x Rubber feet
• 4 x Screws
• 1 x 5V power supply
• 1 x Installation guide
atlona.com
Distribution Amplifier
firmware update or manual.

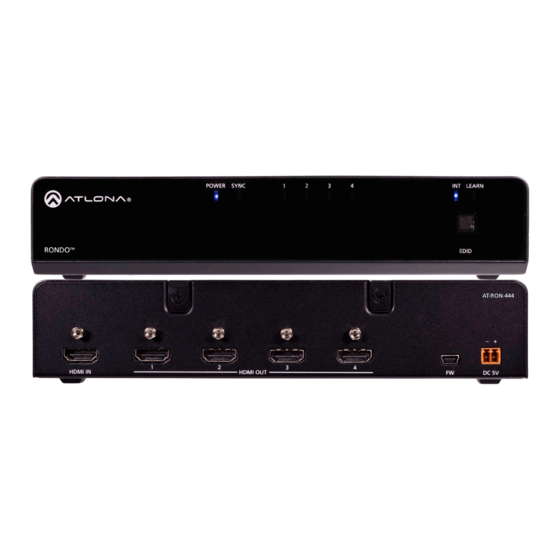

AT-RON-444
• 1 x Unit
• 1 x Female captive screw connector
2 pin: Power
• 2 x Mounting plates
• 4 x Rubber feet
• 4 x Screws
• 1 x 5V power supply
• 1 x Installation guide
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona Rondo AT-RON-442
Summary of Contents for Atlona Rondo AT-RON-442
- Page 1 The Atlona Rondo™ series are HDMI distribution amplifiers for high dynamic range (HDR) formats. They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.
- Page 2 6. HDMI OUT - Connect HDMI displays here 7. FW port - Connect a Mini USB to USB A cable for updating with a computer Note: Firmware updates can be found at http://www.atlona.com/product/AT-RON-442 or 444 8. DC 5V port - Connect included 5V power supply here Mounting The Rondo comes with mounting brackets and mounting plates.
- Page 3 To switch between internal and learn modes, press and hold the EDID button. While EDID is being learned, the learn led will blink. EDID learn is complete when the EDID learn LED goes solid. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 4 1. How do I update my unit? Firmware and instructions can be found and downloaded from the firmware tab at http://www.atlona.com/product/AT-RON-442 or AT-RON-444 2. Does the Rondo have control? The only control is through the front panel for EDID. Press the EDID button to switch between Internal and Learn EDID modes 3.
