Page 1: User Manual

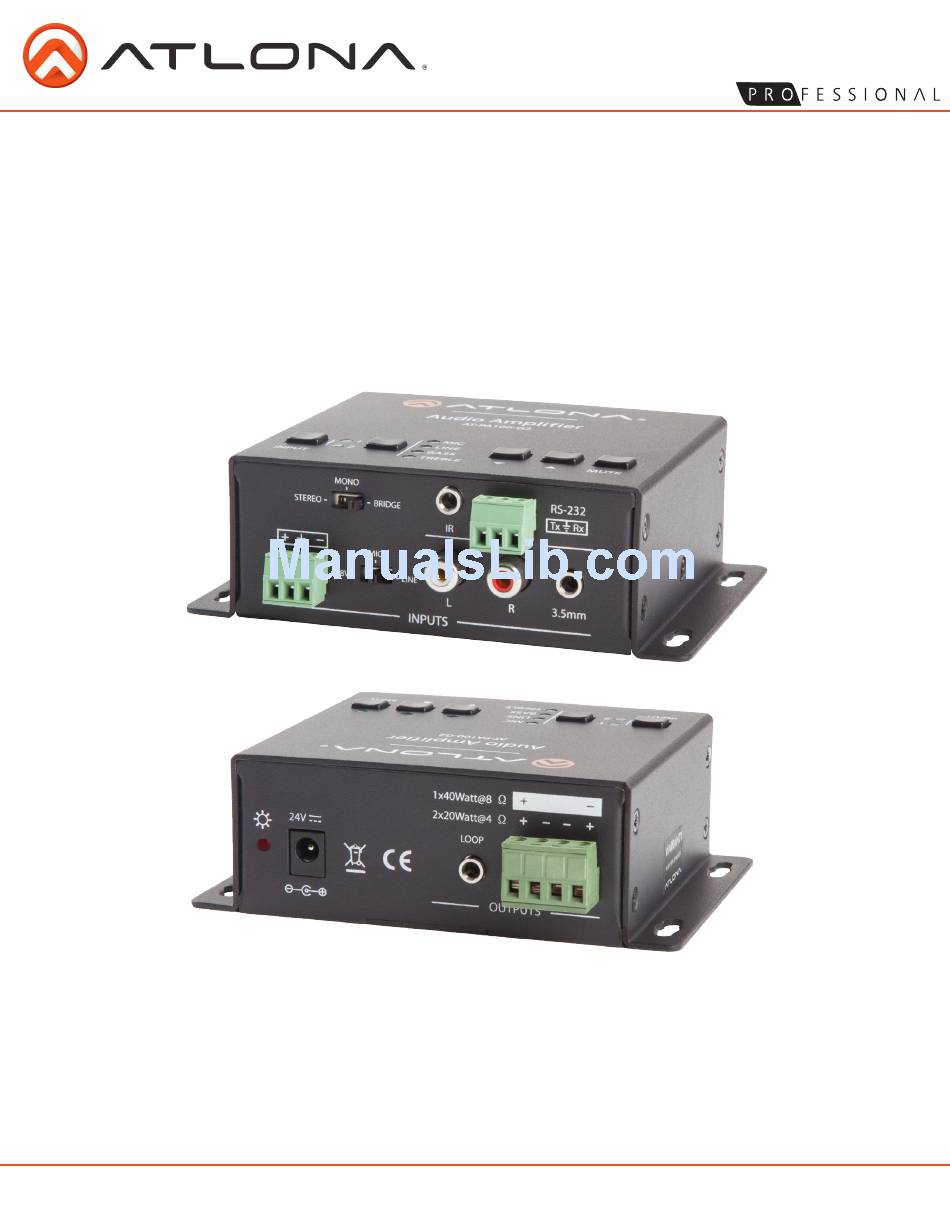

Atlona Stereo/Mono Audio Amplifier AT-PA100-G2 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
6. MIC Connection .................... 6 7. Output Connection .................... 7-8 8. Connection and Installation .................... 8 9. RS-232 ....................9-10 10. Safety Information .................... 11 11. Warranty .................... 12 12. Atlona Product Registration .................... 13 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Small, energy efficient, and affordable the Atlona Stereo/Mono Audio Amplifier fits the needs of most offices, classrooms and more. Unlike traditional A/B amplifiers the Class D audio amplifier is energy efficient and easily integrated behind a TV where space is limited. -
Page 4: Specifications

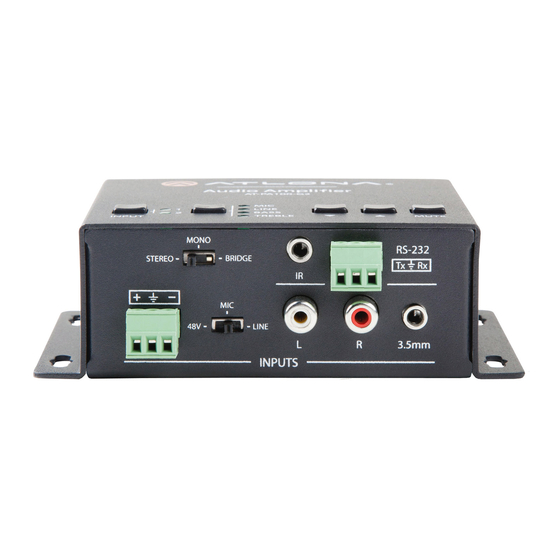

4. Captive Screw Input: Connect a MIC 5. Audio input switch: Switch between 48V Phantom powered condenser MIC, Dynamic MIC, or LINE 6. L/R audio: Connect Analog audio into this port 7. 3.5mm audio: Connect Analog audio into this port Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
3. Volume adjustment buttons: Use the up and down arrows to turn the volume up or down or adjust the level of the Bass and Treble 4. Mute button: Use to mute the Line volume Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Mic Connection
Either Unbalanced connection may be used. NOTE: The MIC input has a power saving standby mode. When the MIC does not receive an audio signal for 8 seconds it will go into mute/standby mode. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Output Connection
L (20W) R (20W) Mono (dual) When Mono is selected, the audio output is Dual Channel Mono and will output 20W per channel in this mode. Mono Channel (20W) Mono Channel (20W) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Connection And Installation
Bridged Bridged audio will combine both L and R channels into one and outputs 40W to a single Mono speaker. Channel (40W) Connection and Installation Line Input MIC Input Line Input Mono: 40W Stereo Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Rs-232
Bass level down 607% Treble of LINE: 04 Treble level up 608% Treble of LINE: 04 Treble level down 609% A: 1 -> 1 Resets back to default settings Volume: 50 Bass: 04 Treble: 04 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 10 Preset the treble level, [xx] arranges from [00] to [08]. Example: 905% --> Treble of LINE: 05 Do not use a carriage return at the end of the commands. “.” and “%” terminate the commands. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 11: Safety Information
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools. Use only accessories recommended by Atlona to avoid fire, shock, or other hazards. Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. -
Page 12: Warranty
Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 13: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
