4K/UHD
Two-Output HDMI to HDBaseT
AT-UHD-CAT-2

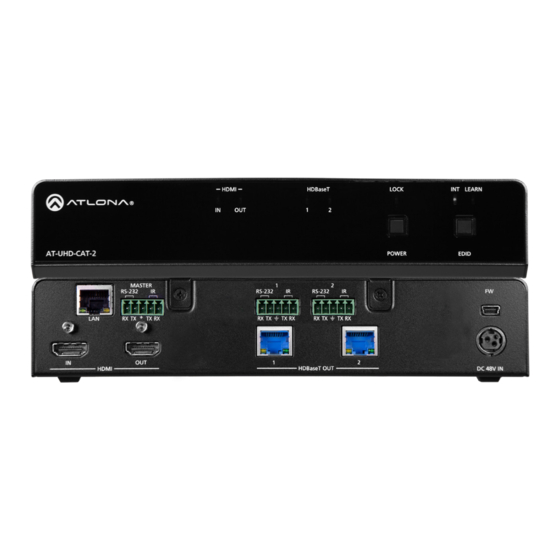

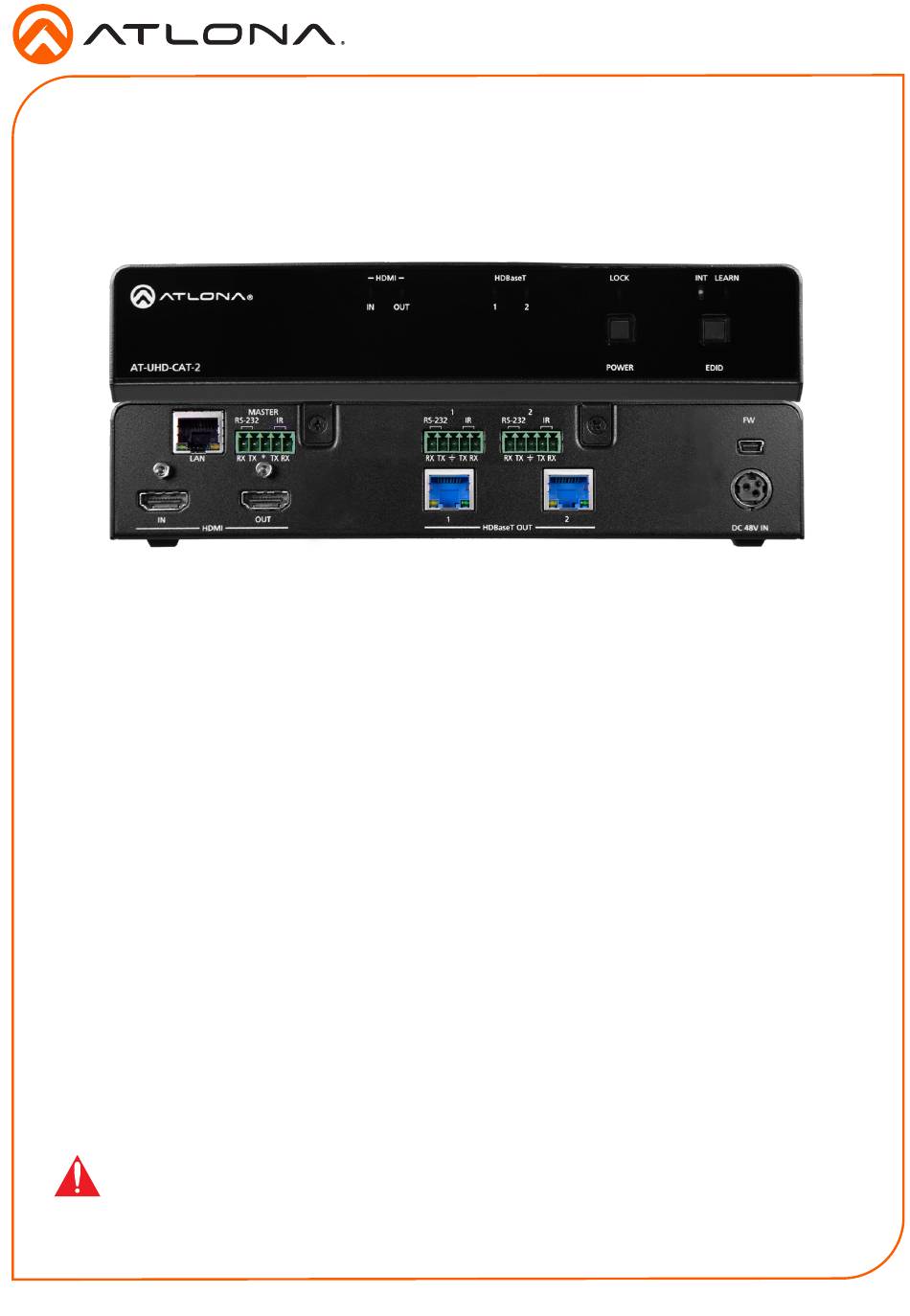

The Atlona AT-UHD-CAT-2 is a 4K/UHD HDMI to HDBaseT distribution amplifier featuring pass-
through HDMI input connections, two HDBaseT outputs, and display control capability. Each
output transmits AV and control signals up to 230 ft. (70 m) @ 1080p and 130 ft. (40 m) @ 4K/
UHD. Features include 4K/UHD @ 60 Hz with 4:2:0 color subsampling, HDCP 2.2 compliance,
EDID management, and PoE for powering remote receivers. A wide variety of consumer
displays may be controlled by the UHD-CAT-2 using CEC. Designed for commercial distribution
applications, the UHD-CAT-2 is control system-friendly and integrates with any TCP/IP, RS-232,
or IR control system and features a 1U, half-rack width enclosure with external, international
power supply. The UHD-CAT-2 is ideal for use with the AT-UHD-EX-70C-RX HDBaseT receiver,
AT-HDVS-200-RX HDBaseT receiver and HD scaler, or AT-HDVS-SC-RX HDBaseT receiver and
4K/UHD scaler.
Package Contents
1 x AT-UHD-CAT-2
3 x Captive screw connector, 5-pin
1 x Rack ear (short)
1 x Rack ear (long)
2 x Mounting plates
4 x Mounting screws
1 x 48 V DC power supply
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-UHD-CAT-2 for the latest firmware
updates and User Manual.
Distribution Amplifier
™
1
Installation Guide
AT-UHD-CAT-2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-UHD-CAT-2
Summary of Contents for Atlona AT-UHD-CAT-2
-
Page 1: Installation Guide
™ AT-UHD-CAT-2 The Atlona AT-UHD-CAT-2 is a 4K/UHD HDMI to HDBaseT distribution amplifier featuring pass- through HDMI input connections, two HDBaseT outputs, and display control capability. Each output transmits AV and control signals up to 230 ft. (70 m) @ 1080p and 130 ft. (40 m) @ 4K/ UHD. -
Page 2: Panel Descriptions
Connect a mini USB-to-USB cable from LEARN this port, to a computer, to update the This LED indicator will flash when a firmware of the AT-UHD-CAT-2. downstream EDID is being read into memory. Refer to the User Manual for DC 48V more information. - Page 3 The AT-UHD-CAT-2 provides three RS-232 ports. The RS-232/IR MASTER port is used to control the AT-UHD-CAT-2 using a control system or other DTE equipment. RS-232/IR 1 and RS-232/IR 2 ports are used in conjunction with the HDBaseT OUT 1 and HDBaseT OUT 2 ports.
-
Page 4: Installation
IP Configuration By default, the AT-UHD-CAT-2 is set to DHCP mode, allowing a DHCP server (if present) to as- sign the unit an IP address. If a DHCP server is not found within 15 seconds, then the unit will be placed in Auto IP mode and use a self-assigned IP address within the range of 169.254.xxx.xxx. -
Page 5: Connection Diagram
Installation Guide AT-UHD-CAT-2 Connection Diagram Display LE AR IN T se T W ER A T- D -C A T- AT-UHD-CAT-2 Laptop 0- R V S- A T- LI N -2 32 2 D IO AT-HDVS-200-RX SC AL IN PU... -
Page 6: Accessing The Web Gui
The AT-UHD-CAT-2 includes a built-in web GUI, which allows easy management and control of all features. Follow the instructions below to access the web GUI. Make sure that an Ethernet cable is connected between the LAN port on the AT-UHD-CAT-2 and the network. -
Page 7: Mounting Instructions
Installation Guide AT-UHD-CAT-2 Mounting Instructions The AT-UHD-CAT-2 can be mounted in different ways, based on the number of units that are being installed. The AT-UHD-CAT-2 can be mounted in a rack or on/under any flat surface. Single-unit rack installation Attach the included small rack ear to one side of the AT-UHD-CAT-2, using the included screws. - Page 8 Installation Guide AT-UHD-CAT-2 Dual-unit rack installation Turn both units upside-down on a flat surface, next to each other, as shown. Position the included mounting plates over the holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plate should face upward.
- Page 9 Installation Guide AT-UHD-CAT-2 Flat surface Turn the unit upside down on a flat surface. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plates should face upward.
-
Page 10: Troubleshooting
The front-panel buttons • Check to make sure that the AT-UHD-CAT-2 is not locked. are not working. If the LOCK LED indicator is blue, then the unit is locked. • To unlock the unit using the web GUI, login and click the Lock toggle button to the UNLOCK position. - Page 11 Installation Guide AT-UHD-CAT-2 Notes...
- Page 12 • © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
