Page 1: Distribution Amplifiers

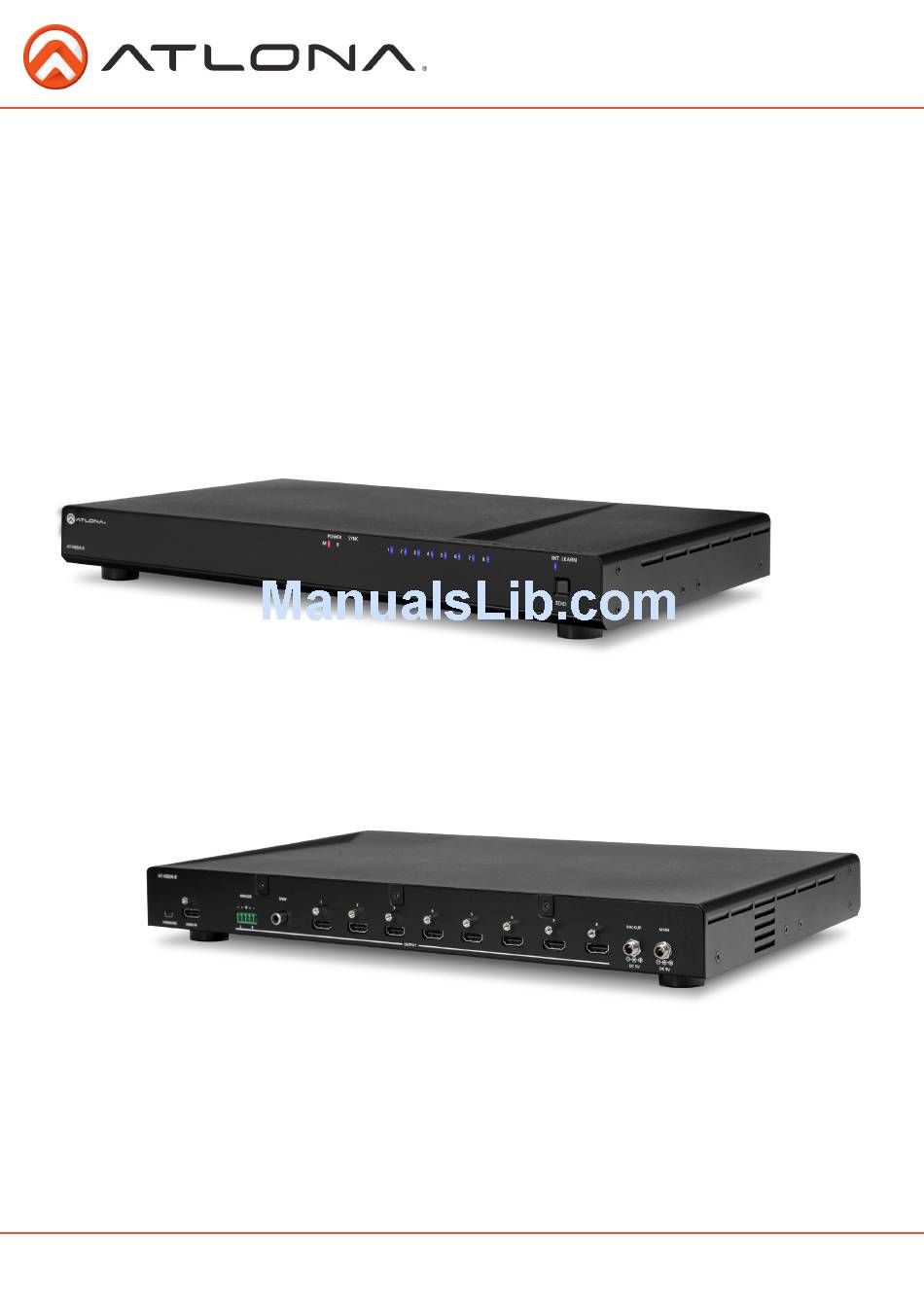

Atlona HDMI Distribution Amplifiers AT-HDDA-8 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
DVI .................. 5 6. Captive Screw .................. 5 7. Connection and Installation .................. 6 8. Specifications .................. 7 9. Safety Information .................. 8 10. Warranty .................. 9-10 11. Atlona Product Registration .................. 10 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction With 4kx2k pass through the Atlona HDMI Distribution Amplifiers offer high definition solutions for multi display installations. Field upgradable, with a built in USB port, ensures seamless firmware updating. With EDID learning mode, the HDDA provides a solution for incompatibilities and intermittent signals. -
Page 4: Rear Panel
POWER SYNC INT LEARN Back Panel EDID AT-HDDA-8 AT-HDDA-8 BACKUP MAIN SPDIF ANALOG FIRMWARE HDMI IN OUTPUT DC 5V DC 5V 1. Firmware port: Mini USB port used for firmware updating 2. Analog Audio OUT: De-embeds 2Ch audio to an audio amplifier (ex. AT-PA100-G2) 3. -
Page 5: Dvi
Everything works Captive Screw Captive screw balanced audio connector is an added feature on the Atlona HDMI Distribution Amplifier. The Captive screw connectors allow you to cut cables down to a suitable length, reducing cable clutter while providing a more reliable connection. -
Page 6: Connection And Installation
Connection and Installation BluRay player POWER SYNC INT LEARN EDID AT-HDDA-8 AT-HDDA-8 BACKUP MAIN SPDIF ANALOG FIRMWARE HDMI IN OUTPUT DC 5V DC 5V Display 1 AT-PA100-G2 Display 2 Speaker Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Specifications
2.72 kg Rack Size 1 U, 19 in. standard electronics rack Temperature Operating Storage 32°F to 104°F -4°F to 140°F 0°C to 40°C -20°C to 60°C Certifications CE, FCC, RoHS, cULus for power supplies Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: At-Hdda
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 10: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
