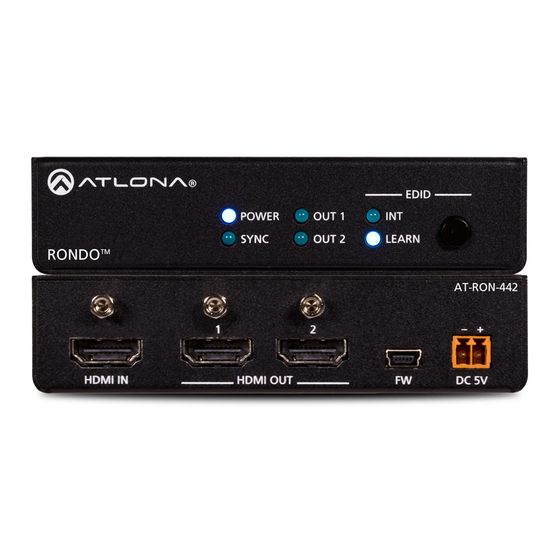

4K HDR Two / Four-Output HDMI Distribution Amplifier
AT-RON-442 / AT-RON-444
The Atlona Rondo™ series are HDMI distribution amplifiers for high dynamic range (HDR)
formats. They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma
sampling, as well as HDMI data rates up to 18 Gbps. The Rondo series are ideal for applications
requiring the latest as well as emerging 4K/UHD and HDR sources and displays. They are
compatible with all video resolutions, audio formats, and color space formats supported in the
HDMI 2.0a specification, plus the ability to pass metadata for HDR content. The Rondo Series
HDMI distribution amplifiers include EDID management features, front panel LED indicators
for power and signal status, and the capability to cascade several units without compromising
performance.
Package Contents
AT-RON-442
1 x AT-RON-442
1 x 5V DC power supply
1 x Phoenix terminal block, 2-pin
2 x Rack ears
4 x Rubber feet
4 x Screws
1 x Installation guide
IMPORTANT: Visit http://www.atlona.com/product/AT-RON-442 and http://www.atlona.
com/product/AT-RON-444 for the latest firmware updates.
AT-RON-444
1 x AT-RON-444
1 x 5V DC power supply
1 x Phoenix terminal block, 2-pin
2 x Mounting plates
1 x Long rack ear
1 x Short rack ear
4 x Rubber feet
4 x Screws
1 x Installation guide
1
Installation Guide
AT-RON-442 / AT-RON-444
Advertisement
Table of Contents
Related Manuals for Atlona AT-RON-442
Summary of Contents for Atlona AT-RON-442

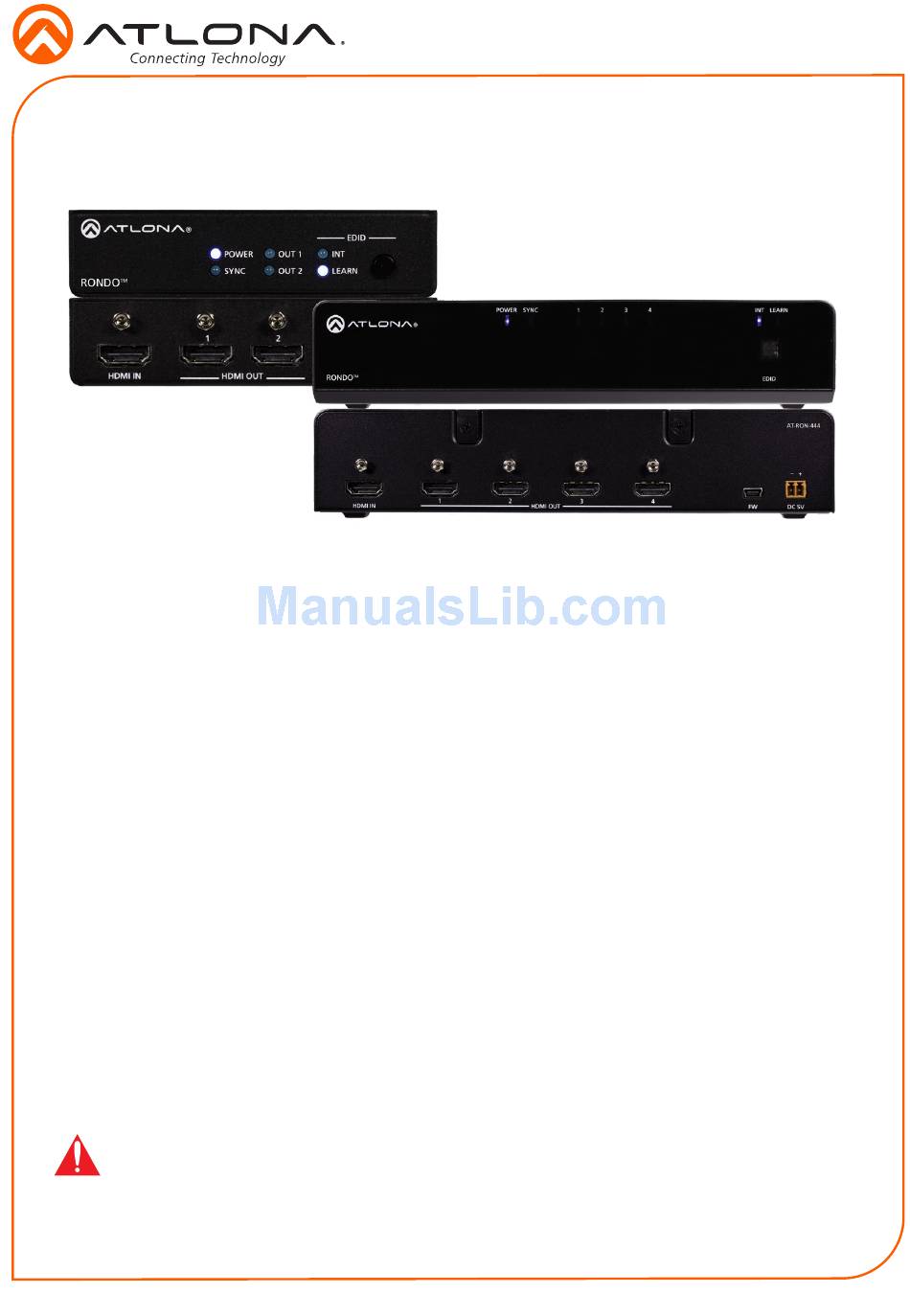

- Page 1 4K HDR Two / Four-Output HDMI Distribution Amplifier AT-RON-442 / AT-RON-444 The Atlona Rondo™ series are HDMI distribution amplifiers for high dynamic range (HDR) formats. They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.
- Page 2 Installation Guide AT-RON-442 / AT-RON-444 Panel Descriptions AT-RON-442 EDID POWER OUT 1 SYNC OUT 2 LEARN RONDO AT-RON-442 HDMI IN HDMI OUT DC 5V POWER EDID button This LED indicator will glow solid blue Press this button to switch between INT when the unit is powered.
- Page 3 Installation Guide AT-RON-442 / AT-RON-444 AT-RON-444 POWER SYNC LEARN RONDO EDID AT-RON-444 HDMI IN HDMI OUT DC 5V POWER EDID button This LED indicator will glow solid blue Press this button to switch between when the unit is powered. “internal” and “learn” modes.
- Page 4 Black Installation Connect an HDMI cable from the UHD/HD source to the HDMI IN port on the AT-RON-442/ AT-RON-444. Connect display/sink devices to the AT-RON-442/AT-RON-444 to the HDMI OUT ports. The AT-RON-442 supports up to two outputs. The AT-RON-444 supports up to four outputs.
- Page 5 Installation Guide AT-RON-442 / AT-RON-444 Repeat steps 1 through 3 to attach the second mounting bracket to the opposite side of the unit. Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended.
- Page 6 -R O EDID The AT-RON-442 and AT-RON-444 provide two EDID modes: internal (INT) and LEARN. Internal mode selects the highest common resolution and audio between the source and all displays. NOTE: 4K, 3D, and multichannel audio may not be available when using INT (internal) EDID mode.
- Page 7 Installation Guide AT-RON-442 / AT-RON-444 Connection Diagrams AT-RON-442 AT-RON-442 N -4 -R O HD/UHD display HD/UHD display Laptop AT-RON-444 AT-RON-444 N -4 A T- HD/UHD display HD/UHD display HD/UHD display Laptop HD/UHD display...
- Page 8 • © 2017 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
