Page 1: User Manual
Atlona 1 by 2 HDMI Distribution Amplifier AT-HDDA-2 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
Rear Panel ..................4 5. EDID ..................4 6. Connection and Installation ..................5 7. Specifications ..................6 8. Safety Information ..................7 9. Warranty ..................8 10. Atlona Product Registration ..................9 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction With 4kx2k pass through the Atlona 1 by 2 HDMI Distribution Amplifier offers a high definition solution for multi display installations. Field upgradable, with a built in USB port, ensures seamless firmware updating. With EDID learning mode, the HDDA provides a solution for incompatibilities and intermittent signals. -
Page 4: Rear Panel

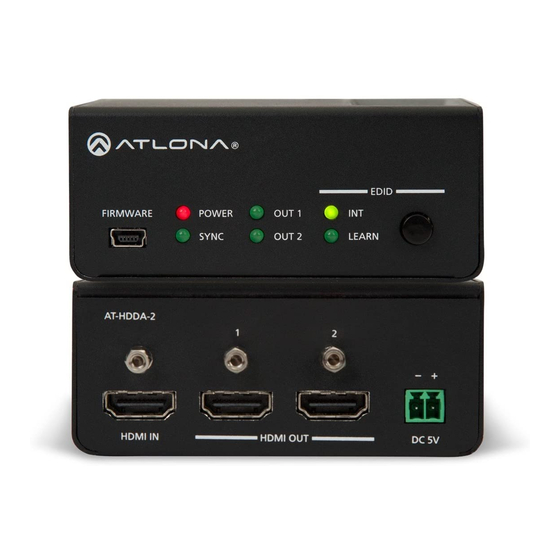

FIRMWARE POWER OUT 1 SYNC OUT 2 LEARN Back Panel AT-HDDA-2 HDMI OUT DC 5V HDMI IN 1. HDMI IN: Connect to an HDMI source 2. HDMI OUT: Connect to a display 3. DC 5V: Captive screw power connector EDID (Extended Display Identification Data) When the HDDA is completely connected and turned on it will load the Internal EDID™... -
Page 5: Connection And Installation
12 bit (up to) Yes DVI won’t work HDMI only HDMI 12 bit (up to) Yes Everything works Connection and Installation EDID FIRMWARE POWER OUT 1 SYNC OUT 2 LEARN AT-HDDA-2 HDMI OUT DC 5V HDMI IN Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Specifications
25 x 103 x 155 (mm) Weight 0.26 lbs 0.12 kg Temperature Operating Storage 32°F to 104°F -4°F to 140°F 0°C to 40°C -20°C to 60°C Certifications CE, FCC, RoHS, cULus for power supplies Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 9: 10. Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
