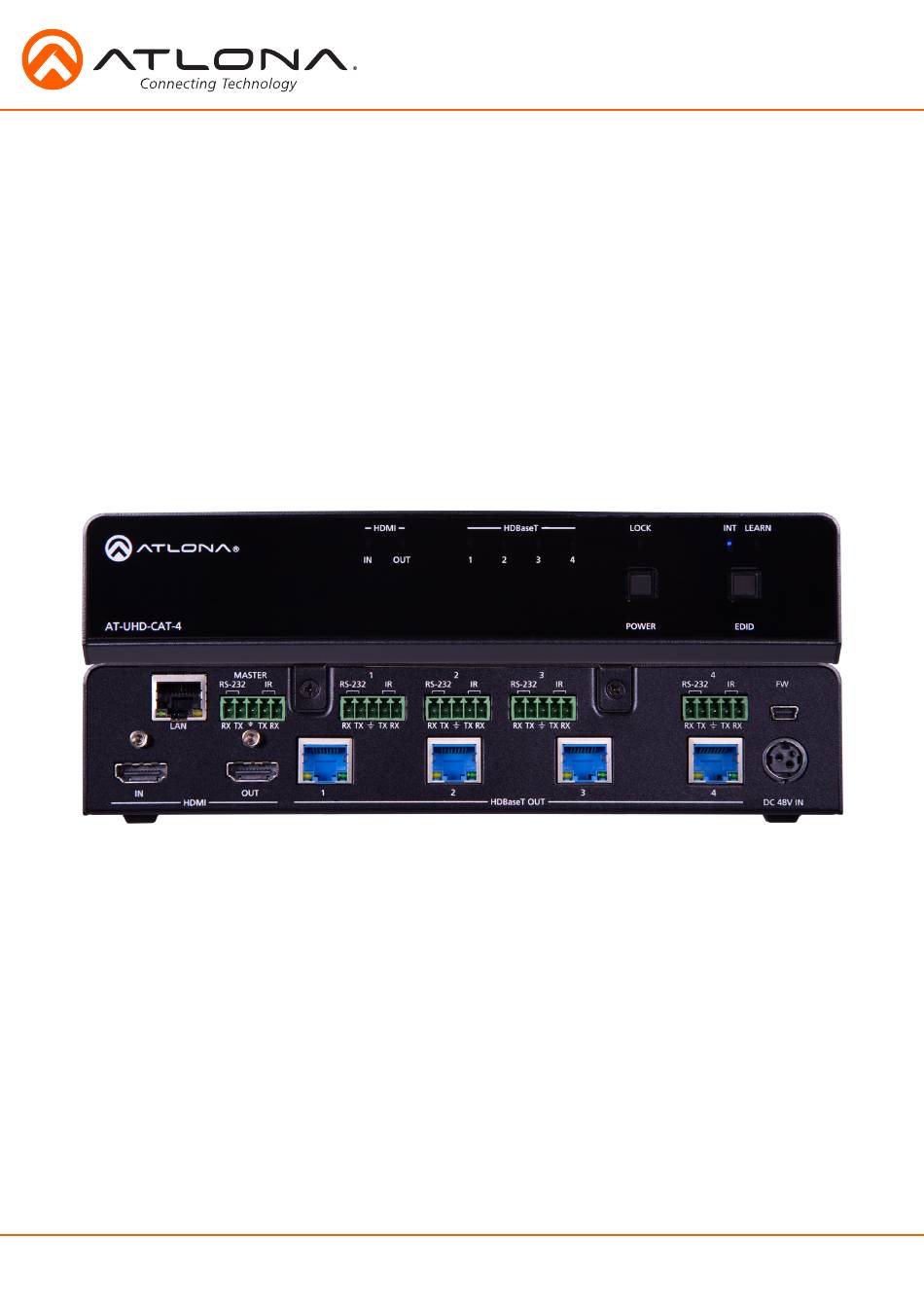

- Page 1 4K/UHD 4-Output HDMI to HDBaseT Distribution Amplifier AT-UHD-CAT-4 User Manual Please check http://www.atlona. com/product/AT-UHD-CAT-4 for the most recent firmware update or manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
9. IR ..................13 10. Connection Diagram ..................14 11. Control Drivers ..................14 12. Updating ..................14 13. Specifications ..................15 14. Safety ..................16 15. Warranty ..................17-18 16. Registration ..................18 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

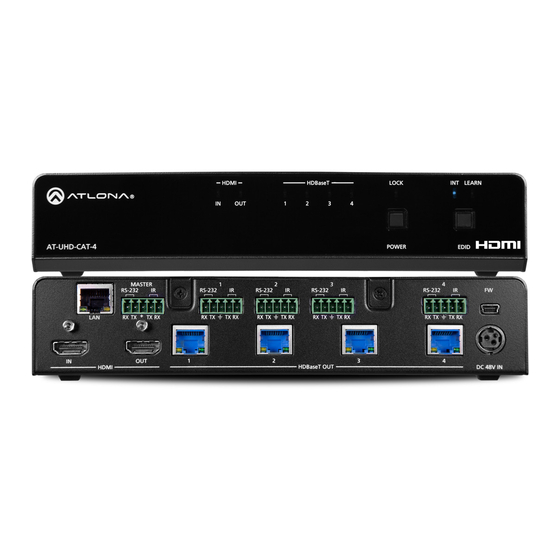

Introduction The Atlona AT-UHD-CAT-4 is a 4K/UHD HDMI to HDBaseT™ distribution amplifier featuring pass-through HDMI input connections, four HDBaseT outputs and display control capability.Each output transmits AV and control signals up to 230 ft. (70 m) @ 1080p and 130 ft. (40 m) @ 4K/ UHD. -
Page 4: Panel Description
Panel Description Front Panel HDMI HDBaseT LOCK LEARN AT-UHD-CAT-4 POWER EDID MASTER RS-232 RS-232 RS-232 RS-232 RS-232 1. HDMI LED - Illuminates when receiving/transmitting signals RX TX RX TX RX TX 2. HDBaseT LEDs - Illuminates when connected to a compatible PoE receiver 3. -
Page 5: Category Cable
Using the wrong size connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in interference with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Tcp/Ip And Gui
TCP/IP WebGUI Atlona has created an easy to use webGUI for initial setup and later changes to the configuration of the UHD-CAT. To begin, connect the LAN port of the UHD-CAT to your network. Type the IP address of the UHD-... -
Page 7: Rs-232
Console - Adjust the RS-232 parameters of the CAT-4 to make it compatible with control systems. Save - Once the RS-232 parameters are changed, press the save button to make it live on the unit. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 8 Admin password can also be changed. Be sure to write this information down as admin is the only profile allowed to add/remove users. Note: Default username= “root” and password= “Atlona” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 9 Reset to Default - Reset the device to factory settings Firmware Update - Use this feature to find and load the MCU firmware to the switcher Note: Firmware can be found and downloaded from http://www.atlona.com/product/AT-CAT-4/ page under the firmware tab...
- Page 10 We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.
-
Page 11: Connection
Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the CAT-4 now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 12: Commands
PWON Power ON PWOFF PWOFF Stand-by PWSTA PWON/PWOFF Get system power status Type AT-UHD-CAT-4 Brings up the model information Version Y Version Y Brings up the software versions e.g. Version boot e.g. Version boot firmware [mcu] boot [boot] vtxY [vtxY]... - Page 13 System IR is typically used to connect to control system processors. This input is used to control the UHD-CAT. Note: The IR receiver is optional for the UHD-CAT. The compatible IR receiver (AT-IR-CS-RX) can be purchased through atlona.com. The wires of the emitter and receiver have been marked to differenciate the pin outs.
-
Page 14: Connection Diagram
CAT-4 Firmware. Note: Atlona is constantly improving and updating features and stability. It is recommended that you check to make sure you are on the most current firmware before installation, especially when using a control system. -
Page 15: Specifications
Rack Unit 1/2 rack, 1RU Weight Device 1.66 kg 3.70 lbs Certification Unit CE, FCC Power Supply CE, FCC, Level VI, RoHS, cULus, RCM, CCC *4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 16: Safety
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 17 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 18: Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
