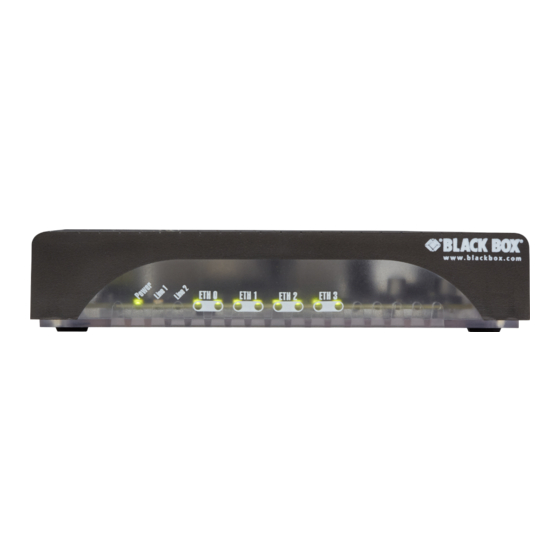

Black Box LB510A-R3 User Manual

Ethernet extender 4-port
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
LB510A-R3
ETHERNET
EXTENDER,
4-PORT
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM
ETH 3
ETH 2
ETH 1
ETH 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB510A-R3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LB510A-R3

Summary of Contents for Black Box LB510A-R3

  • Page 1 USER MANUAL LB510A-R3 ETHERNET EXTENDER, 4-PORT 24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM ETH 3 ETH 2 ETH 1 ETH 0...

  • Page 2: Table Of Contents

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 SAFETY PRECAUTIONS ..................................3 1. SPECIFICATIONS ................................... 4 2. OVERVIEW ...................................... 6 2.1 Introduction .......................................6 2.2 What’s Included ......................................6 2.3 Hardware Description ....................................6 2.3.1 Front Panel ........................................... 6 2.3.2 Back Panel ...........................................7 3.

  • Page 3: Safety Precautions

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 SAFETY PRECAUTIONS TECHNICAL SUPPORT 1.877.877.2269 SAFETY PRECAUTIONS IMPORTANT: This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment.

  • Page 4: Specifications

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 TABLE 1-1. SPECIFICATIONS SPECIFICATION DESCRIPTION G.SHDSL (ATM/EFM) Support ITU-T G991.2/G.994.1 standards • Support ITU-T G.998.1 (G.bond) • TC-PAM line modulation 16,32,64 & 128 • CO or CPE Mode •...
  • Page 5 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 TABLE 1-1 (CONTINUED). SPECIFICATIONS SPECIFICATION DESCRIPTION Switching and Quality of Service • IEEE 802.1D • 802.1Q/802.1P • Link Scheduling Management • DHCP Client/Server/Relay • SNMP v1, v2, v3 •...

  • Page 6: Overview

    ETSI G.SHDSL G.991.2 standard, the LB510A-R3 enables providers to extend their reach-and-range by delivering rate-adaptive nx64 symmetrical speeds up to 15.3 Mbps over a single pair of wires. If you need even more bandwidth, the LB510A-R3 can bond as many as two pairs (4 wires) for up to 30 Mbps. ...

  • Page 7: Back Panel

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 TABLE 2-1. FRONT PANEL COMPONENTS COMPONENT IN FIGURE 2-1 DESCRIPTION LED turns on when power is supplied to the unit. Power LED LED is off when no power is supplied to the unit. One LED for each port.

  • Page 8: Installation

    1.877.877.2269 3.1 CONNECT THE LINE INTERFACE To function properly, the LB510A-R3 must be connected using a twisted-pair, unconditioned, dry, metal wire, between 19 (0.9-mm) and 26 AWG (0.4-mm). Leased circuits that run through signal equalization equipment are not acceptable. The Ethernet Extender has an RJ-45 interface jack (DSL) that conforms to the T568B standard. Any standard Category 5e cable can be used to directly connect two extenders.

  • Page 9: Status Leds

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: INSTALLATION TECHNICAL SUPPORT 1.877.877.2269 3.4 STATUS LEDS The LEDs indicate the status of power, DSL link, and Ethernet connections. NOTE: When off, the LED indicators are clear; when lit, the indicators are yellow. TABLE 3-1.

  • Page 10: Configuration

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 4.1 OPTIONS If the factory-installed configuration needs to be adjusted, you can configure the device by using: Š DIP switches (while powered off) Š Š Web Wizards through HTTP access Š...

  • Page 11: Dip Switches

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 4.2 DIP SWITCHES The DIP switches enable you to configure the CO/CPE and TCPAM/Rate preset. These settings are applied when the device powers on, and they cannot be changed while the device is powered on.

  • Page 12: Wizard Interface

    Š password: [blank, just press the Enter key] Š FIGURE 5-1. LOGIN SCREEN The LB510A-R3 includes a Web Wizard within the GUI. The Icon to the wizard is in the top right corner of your browser as shown in Figure 5-2. FIGURE 5-2. WEB WIZARD HOME PAGE 1.877.877.2269...
  • Page 13 SUPPORT 1.877.877.2269 Once the wizard icon is selected, you will have the options of supported set-ups as shown in Figure 5-3. Click on LB510A-R3 Basic Setup. FIGURE 5-3. CHOOSE WIZARD Clicking on the LB510A-R3 Basic Setup will bring up the most common configurations used on the Ethernet Extender.
  • Page 14 - Static: Create your own IP address, netmask and gateway (optional–the gateway is required for remote management). - DHCP: The LB510A-R3 management port will accept an IP address from a DHCP server. - Both: This choice will assign two IP addresses (one static and one DHCP to the management port - Management VLAN ID: (Optional) define a VLAN ID for management traffic.
  • Page 15 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: WIZARD INTERFACE TECHNICAL SUPPORT 1.877.877.2269 When you choose the save and reboot option, a prompt will ask you to confirm. If the configuration is correct, select Yes as shown in Figure 5-6.

  • Page 16: Cli Operation And Configuration

    CHAPTER 6: CLI OPERATION AND CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 You can connect a PC to configure the LB510A-R3 Ethernet Extender using the CLI. 6.1 CONNECT WITH SSH 1. Connect the Ethernet cable. 2. Connect the power supply. 3. Connect via SSH to the extender through its IP address: – Default IP address: 192.168.200.10 4.
  • Page 17 <description> SERVICE MODE Configures the number of pairs (wires) you want to use. The LB510A-R3 will default to the maximum number of wires available on your version of the G.SHDSL.bis CPE: LB510A-R3 (4-wire). node~(prt-dsl)[0/0]# service-mode { 2-wire | 4-wire } SHUTDOWN Disables or enables DSL port(s).
  • Page 18 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: CLI OPERATION AND CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 EXIT Goes back to parent mode. node~(prt-dsl)[0/0]# exit SHOW Displays all the configured options of the LB510A-R2 DSL port(s) node(cfg)# show port dsl 0 0 1.877.877.2269 BLACKBOX.COM...

  • Page 19: Appendix A. Regulatory Information

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.1 EMC Š FCC Part 15, Class A Š Š EN55022, Class A Š Š EN55024 Š A.2 SAFETY Š UL 60950-1/CSA C22.2 N0. 60950-1 Š...

  • Page 20: Industry Canada Notice

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.5 INDUSTRY CANADA NOTICE This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met.

  • Page 21: Appendix B. Disclaimer/Trademarks

    B.1 DISCLAIMER Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation may revise this document at any time without notice.
  • Page 22 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ ________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ 1.877.877.2269 BLACKBOX.COM...
  • Page 23 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ ________________________________________________________________________________________________ _______________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ ________________________________________________________________________________________________ __________________________________________________________________________________________________ 1.877.877.2269 BLACKBOX.COM...
  • Page 24 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TECHNICAL SUPPORT 1.877.877.2269 © COPYRIGHT 2018. BLACK BOX CORPORATION. ALL RIGHTS RESERVED. LB510A-R3_USER_REV1.PDF...
