Black Box LB532A-M User Manual

Black Box LB532A-M User Manual

Deesel.1 industrial ethernet extender multi-drop unit, g-shdsl 2-wire, 5.7 mbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

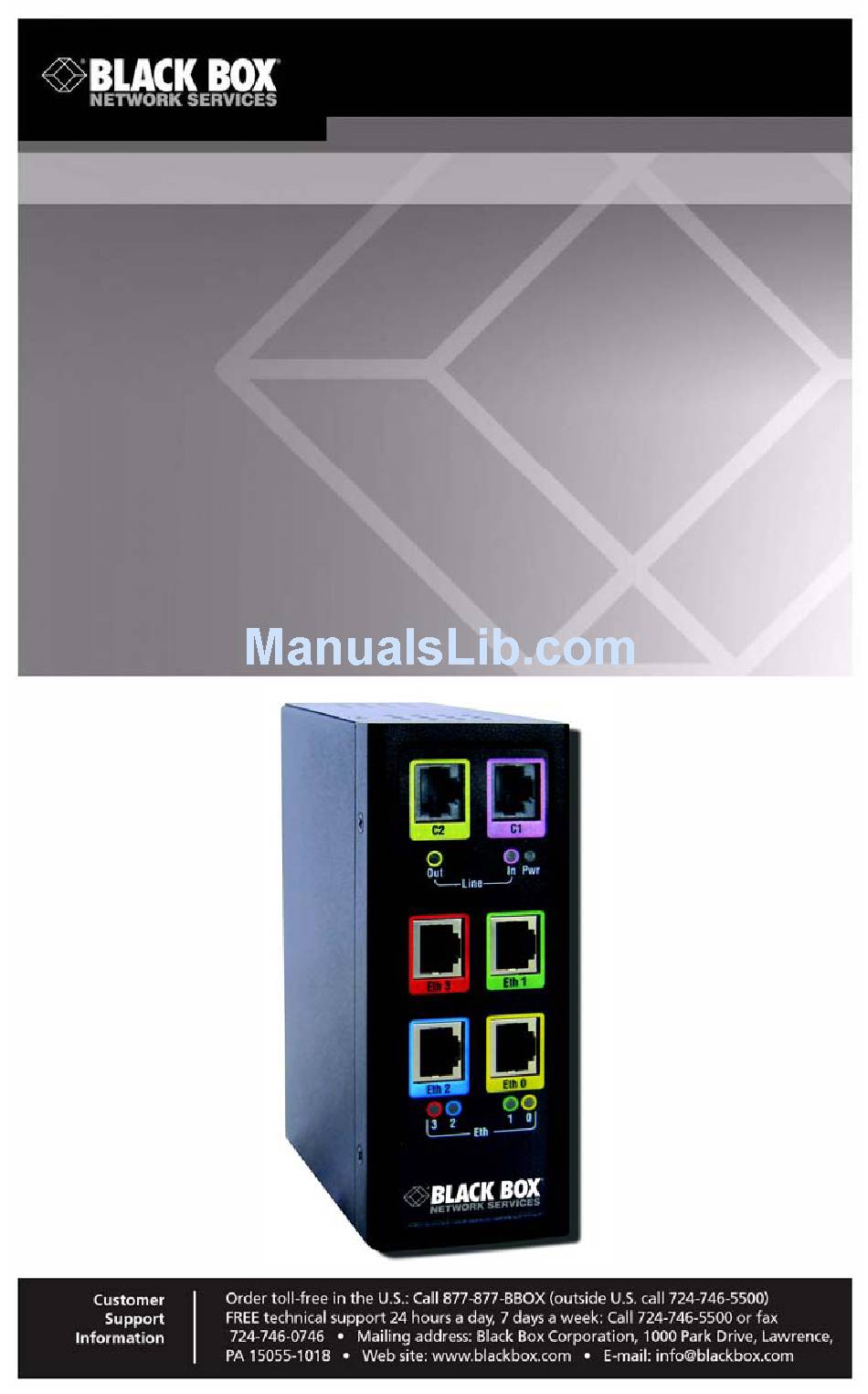

DeeSel.1 Industrial Ethernet Extender
Multi-Drop Unit, G-SHDSL 2-Wire, 5.7 Mbps
Get multi-drop Ethernet extension over twisted pair with
distances of 4.3 miles per hop.
LB532A-M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB532A-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LB532A-M

Summary of Contents for Black Box LB532A-M

  • Page 1 LB532A-M DeeSel.1 Industrial Ethernet Extender Multi-Drop Unit, G-SHDSL 2-Wire, 5.7 Mbps Get multi-drop Ethernet extension over twisted pair with distances of 4.3 miles per hop.

  • Page 2: Table Of Contents

    Black Box Ethernet Extenders TABLE OF CONTENTS General Information ..................9 Features ....................9 Description..................9 Power Input Connector ............... 9 Configuration ..................... 10 Hardware (DIP-switch) Configuration ..........10 DIP Switch Settings ................11 DIP Switch Settings: Data Rate ..........11 Ethernet Management Port............ 14 Installation....................
  • Page 3 Interface Pinouts..................23 B.1 Line Port (C1, C2) ................23 B.2 Ethernet Port ..................23 Page 3 724-746-5500 | blackbox.com...
  • Page 4 Black Box Ethernet Extenders RADIO FREQUENCY INTERFERENCE STATEMENTS FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
  • Page 5 INSTRUCCIONES DE SEGURIDAD (Normas Oficiales Mexicanas Electrical Safety Statement) 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para refer- encia futura.
  • Page 6 Black Box Ethernet Extenders 14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomenda- ciones del fabricante. 15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia. 16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.
  • Page 7 SAFETY WHEN WORKING WITH ELECTRICITY • This device contains no user serviceable parts. This device can only be repaired by qualified service personnel. WARNING • Do not open the device when the power cord is con- nected. For systems without a power switch and without an external power adapter, line voltages are present within the device when the power cord is connected.
  • Page 8 Black Box Ethernet Extenders In accordance with the requirements of council directive 2002/96/EC on Waste of Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate this product from other waste and scrap and deliver to the WEEE col- lection system in your country for recycling.

  • Page 9: General Information

    1. GENERAL INFORMATION Thank you for your purchase of this Black Box product. This product has been thor- oughly inspected and tested and is warranted for one year for parts and labor. If any questions or problems arise during installation or use of this product, contact Black Box Technical Support at 724-746-5500 or info@Black Box.com.

  • Page 10: Configuration

    Data Rate/ Defines the number of timeslots. The data 1-72 timeslots Timeslots rate is calculated by the equation: data rate = timeslots x 64k. NOTE: The default configuration for the LB532A-M is 89 timeslots (5695 kbps). Page 10 724-746-5500 | blackbox.com...

  • Page 11: Dip Switch Settings

    Configuration Underside of LB532A-M showing location of DIP switches Figure 2. DIP switches S1 and S3 must all be in the OFF position. DIP switch S4, positions 2–8 are used to configure the data rate. This figure shows the DIP switch orientation with respect to ON and OFF positions is consistent for all switches.
  • Page 12 Black Box Ethernet Extenders Table 2: S4-2 throught S4-8 Data Rate DIP switch settings S4-2 S4-3 S4-4 S4-5 S4-6 S4-7 S4-8 Data Rate (kbps) 1024 1088 1152 1216 1280 1344 1408 1472 1536 1600 1664 1728 1792 1856 1920 1984...
  • Page 13 Configuration Table 2: S4-2 throught S4-8 Data Rate DIP switch settings S4-2 S4-3 S4-4 S4-5 S4-6 S4-7 S4-8 Data Rate (kbps) 3072 3136 3200 3264 3328 3392 3456 3520 3584 3648 3712 3776 3840 3904 3968 4032 4096 4160 4224 4288 4352 4416...

  • Page 14: Ethernet Management Port

    5632 5696 Ethernet Management Port The LB532A-M offers a 10/100 Ethernet port to view the current DIP switch settings via Telnet sessions. The Ethernet interface default IP address is 192.168.200.1. Log into the LB532A-M management port using the password superuser.
  • Page 15 Help Commands. The following commands are provided to help the user find the cor- rect command: • help: Lists all the commands that the console recognizes Example Command Line Interface Session. LB532A-M Command Shell Password: LB532A-M> status configuration: link mode:...

  • Page 16: Installation

    NOTE: The line probe feature is a future product enhancement. 3. INSTALLATION Once the LB532A-M is properly configured, it is ready to connect to the line interface and to the power source. This section explains how to make these connections.

  • Page 17: Connecting The Ethernet Interface

    Local to remote connection Figure 4. 2. To function properly, the LB532A-M needs one twisted pair of metallic wire. This twisted pair must be unconditioned, dry, metallic wire, between 19 (0.9mm) and 26 AWG (0.4mm) (the higher number gauges will limit distance). Standard dial- up telephone circuits, or leased circuits that run through signal equalization equipment, or standard, flat modular telephone type cable, are not acceptable.

  • Page 18: Connecting External Ac Universal Power Supply

    -. Tighten the screws on the block to secure the wires. The LB532A-M powers up as soon as it is connected to an AC power source—there is no power switch.

  • Page 19: Operation

    4.1 POWER-UP To apply power to the LB532A-M, first be sure that you have read section 1.3, “Power Input Connector” on page 9, and that the unit is connected to the appropriate power source. Power up the unit.

  • Page 20: Power (Green)

    The software upgrade feature is available through TFTP. The software upgrade takes approximately 1 to 2 minutes to complete. To upgrade the software: 1. Connect to the LB532A-M via the Ethernet management port and a Telnet ses- sion at 192.168.200.1.

  • Page 21: Specifications

    A.5 POWER AND POWER SUPPLY SPECIFICATIONS The LB532A-M comes with an external universal AC power supply. • The power connection to the LB532A-M is a terminal block (see Figure 8 on page 22) • There is one fuse in the equipment rated at 250V, 500 mA, 2 sec.

  • Page 22: Transmission Line

    Black Box Ethernet Extenders • Rated current: 1 A DC Power Terminal block power connection Figure 8. The external AC adapter shall be a listed limited power source that incorporates a disconnect device and shall be positioned within easy reach of the operator. Ensure that the AC power...

  • Page 23: Third Party Software Licenses

    Specifications A.11 THIRD PARTY SOFTWARE LICENSES NOTE: The LB532A-M includes software developed under third party licenses. B. INTERFACE PINOUTS B.1 LINE PORT (C1, C2) RJ-45 connector Table 3: Signal Ring NOTE: N/C is “no connection.” Although denoted as Tip and Ring, the line ports are not polarity sensitive.
  • Page 24 LB532A-M version 1...
