BLACK BOX

®
®
NETWORK SERVICES
DECEMBER 2005

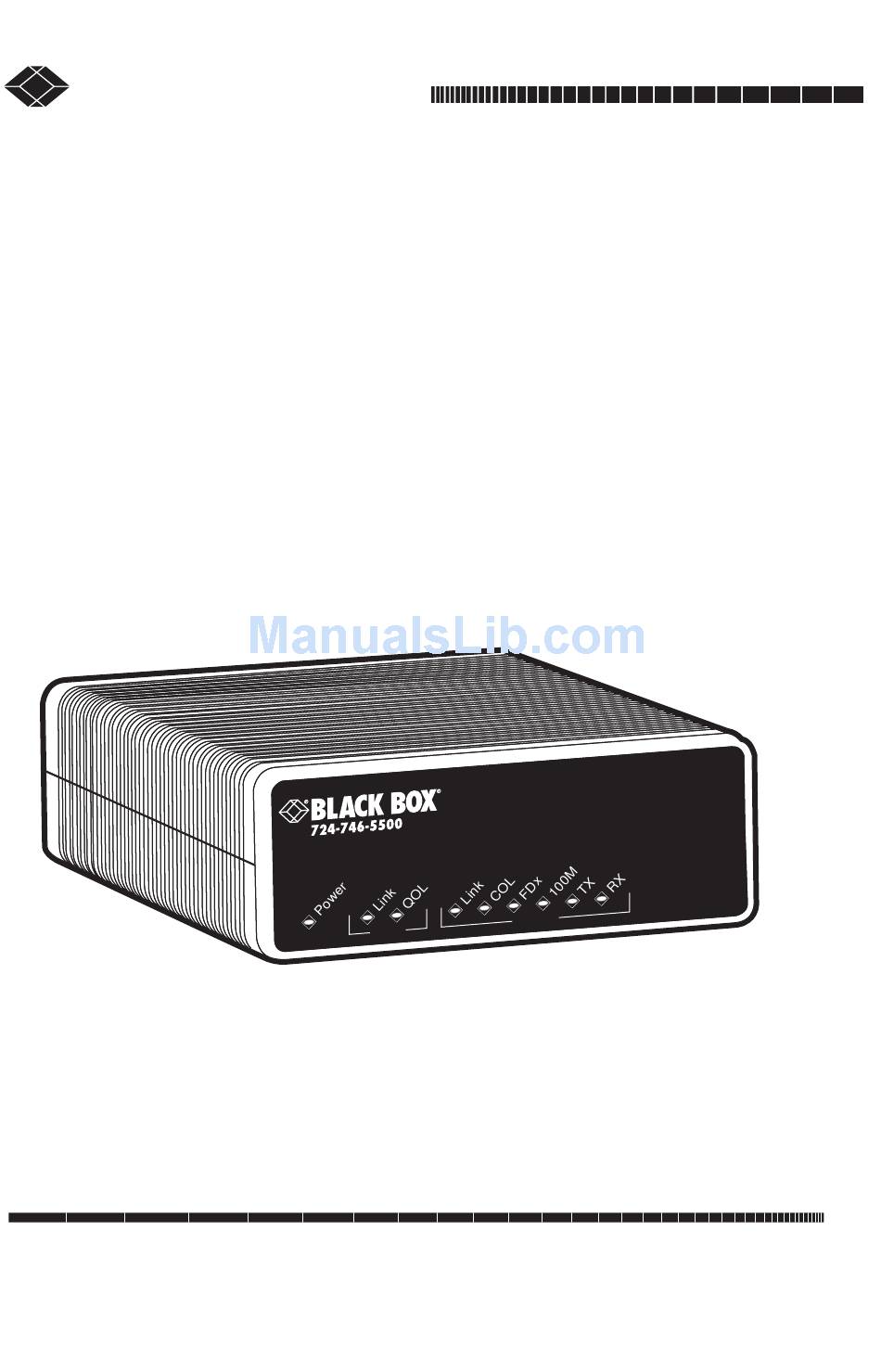

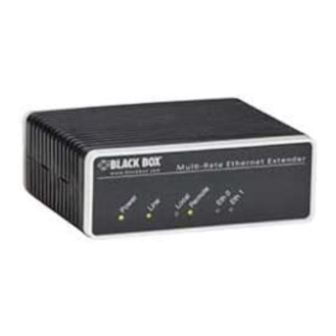

LB200A
Multi-Rate
Ethernet Extender
n e t E x te n d e r
M u lt i- R a te E th e r
E th e rn e t
L IN K
CUSTOMER
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
SUPPORT
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
INFORMATION
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB200A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LB200A

Summary of Contents for Black Box LB200A

  • Page 1: Black Box

    Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...

  • Page 2: Ce Notice

    MULTI-RATE ETHERNET EXTENDER CE NOTICE The CE symbol on your Black Box equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). A Certificate of Compliance is available by contacting Technical Support.

  • Page 3: Fcc Part 68

    MULTI-RATE ETHERNET EXTENDER FCC PART 68 The LB200A is not intended to be connected to the pub- lic telephone network. Caution TRADEMARKS USED IN THIS MANUAL All applied-for and registered trademarks are the property of their respective owners. NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT Instrucciones De Seguridad 1.
  • Page 4 MULTI-RATE ETHERNET EXTENDER 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato. 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.

  • Page 5: Table Of Contents

    1.1 Features ....................7 1.2 Description ..................7 Installation ....................9 2.1 Installing the LB200A ................9 2.2 Connecting the Twisted-Pair Line Interface........9 2.3 Connecting the 10/100Base-T Ethernet Interface ......11 2.3.1 Connecting the 10/100Base-T Ethernet Port to a Hub ..12 2.3.2 Connecting the 10/100Base-T Ethernet Port to a PC (DTE).
  • Page 6 MULTI-RATE ETHERNET EXTENDER A.9 Humidity ...................20 A.10 Dimensions ..................20 Multi-Rate Ethernet Extender Interface Pin Assignment ......21 B.1 10/100Base-T Interface ..............21 B.2 Line Interface ..................21 4.2.3 Terminal Block ..............21 Distance Chart, Based on 24 AWG (0.5 mm) ........... 22...

  • Page 7: General Information

    MULTI-RATE ETHERNET EXTENDER 1. General Information Thank you for your purchase of this Black Box product. If any questions arise during installation or use of the unit, contact Black Box Tech Support at (724) 746-5500. 1.1 Features Easy to install standalone Multi-Rate Ethernet Extenders—no •...
  • Page 8 MULTI-RATE ETHERNET EXTENDER and delete MAC addresses, only passing packets across the link that are meant for the remote peered LAN. Figure 1. Typical application The Local and Remote Multi-Rate Ethernet Extenders work together to create a transparent extension between two peered Ethernet LANs. Figure 1 shows a typi- cal point-to-point application.

  • Page 9: Installation

    MULTI-RATE ETHERNET EXTENDER 2. Installation Because the LB200A requires no configuration, it can be installed quickly. Note If asymmetric transmission or line rates other than 12.5 Mbps are required, refer to section 3., “Configuration” on page 14. 2.1 Installing the LB200A Do the following: 1.
  • Page 10 MULTI-RATE ETHERNET EXTENDER Note Actual distance and link performance may vary depending on the envi- ronment and type/gauge of wire used. Follow the steps below to connect the Ethernet Extender interfaces. The Ethernet Extender units work in pairs. One of the units must be a Local (L), and the other unit must be a Remote (R).

  • Page 11: Connecting The 10/100Base-T Ethernet Interface

    L I N RING Figure 4. LB200A (Terminal Block) twisted pair line interface. 2.3 Connecting the 10/100Base-T Ethernet Interface The shielded RJ-45 port labeled Ethernet is the 10/100Base-T interface. This port is designed to connect directly to a 10/100Base-T network. Figure 5 shows the signal/pin relationships on this interface.

  • Page 12: Connecting The 10/100Base-T Ethernet Port To A Hub

    MULTI-RATE ETHERNET EXTENDER 2.3.4 C 10/100B -T E ONNECTING THE THERNET ORT TO A The Ethernet Extender 10/100Base-T interface is configured as DTE (Data Ter- minal Equipment), just like a 10/100Base-T network interface card in a PC. Therefore, it “expects” to connect to a 10/100Base-T Hub using a straight- through RJ-45 cable.
  • Page 13 The Ethernet Extender does not have a power switch, so it powers up as soon as it is plugged in. There are no user-serviceable parts in the LB200A modem. Fuse replacement should only be per- formed by qualified service personnel. Contact Black Box Technical support at (724) 746-5500 for more information.

  • Page 14: Configuration

    MULTI-RATE ETHERNET EXTENDER 3. Configuration The Multi-Rate Ethernet Extender has four DIP switches for configuring the unit for a wide variety of applications. This section describes switch locations and explains the different configurations. Using a small flat-tip screwdriver, remove the protective cover located on the underside of the Ethernet Extender (see Figure 8).

  • Page 15: Configuring Dip Switch S1

    MULTI-RATE ETHERNET EXTENDER Figure 9 show the orientation of the DIP switches in the On and Off positions. Switch toggle Push toggle up for ON position Push toggle down for 1 2 3 4 5 6 7 8 OFF position Figure 9.

  • Page 16: Switches S1-2 And S1-4: Line Rate

    MULTI-RATE ETHERNET EXTENDER Table 1: Ethernet Auto Negotiation Selection Chart S1-1 Setting Limited Auto Negotiation (100 Mbps Half Duplex) 10 Mbps Full or Half Duplex) 3.1.2 S S1-2 S1-4: L WITCHES Use switches S1-2 and S1-4 to configure the Ethernet Extenders line rates. Table 2: Symmetric Line Rates Selection Chart S1-2 S1-3...

  • Page 17: Operation

    Before applying power to the Ethernet Extender, review section 2.4, “Connecting Power” on page 12 to verify that the unit is connected to the appropriate power source. There are no user-serviceable parts in the LB200A modem. Fuse replacement should only be per- formed by qualified service personnel. Contact Black Box Technical support at (724) 746-5500 for more information.
  • Page 18 MULTI-RATE ETHERNET EXTENDER t e n e r n Ethernet E t h RX LED l t i - Ethernet TX LED Ethernet 100M LED Ethernet FDx LED Ethernet Collision LED Ethernet Power Link LED LINK QOL LED LINK Link LED Figure 10.

  • Page 19: Specifications

    MULTI-RATE ETHERNET EXTENDER A. Specifications A.1 LAN Connection Shielded RJ-45, 10/100Base-T, IEEE 802.3 Ethernet • Line Connection: RJ-45 and Terminal Block • A.2 Transmission Line Two-wire unconditioned twisted pair. A.3 Multi-Rate Ethernet Extender Line Rate 16.67 Mbps, symmetric upstream/downstream. Additional symmetric and asym- metric rates are available via DIP switch settings.

  • Page 20: Temperature Range

    MULTI-RATE ETHERNET EXTENDER A.8 Temperature Range 32–122°F (0–50°C) A.9 Humidity Up to 90% non-condensing. A.10 Dimensions 1.58H x 4.16W x 3.75D in. (10.6H x 4.1W x 8.8D cm)

  • Page 21: Multi-Rate Ethernet Extender Interface Pin Assignment

    MULTI-RATE ETHERNET EXTENDER B. Multi-Rate Ethernet Extender Interface Pin Assignment B.1 10/100Base-T Interface RJ-45 Pin 1: TX+ • Pin 2: TX- • Pin 3: RX+ • Pin 6: RX- • • Pins 4, 5, 7, 8: no connection B.2 Line Interface RJ-45 Pin 4: RING •...

  • Page 22: Distance Chart, Based On 24 Awg (0.5 Mm)

    MULTI-RATE ETHERNET EXTENDER B. Distance Chart, Based on 24 AWG (0.5 mm) Symm Line Rate (DS/US) Distance in feet (km) 6.25 Mbps 4,500 (1.37) 9.38 Mbps 4,150 (1.26) 12.5 Mbps 4,000 (1.22) 16.67 Mbps 3,300 (1.00) Asymm Line Rate (DS/US) Distance in feet (km) 4.17 Mbps/1.56 Mbps (Mode 0) 6,000 (1.83)
  • Page 23 MULTI-RATE ETHERNET EXTENDER Notes ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
  • Page 24 BLACK BOX ® ® NETWORK SERVICES © Copyright 2005. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
