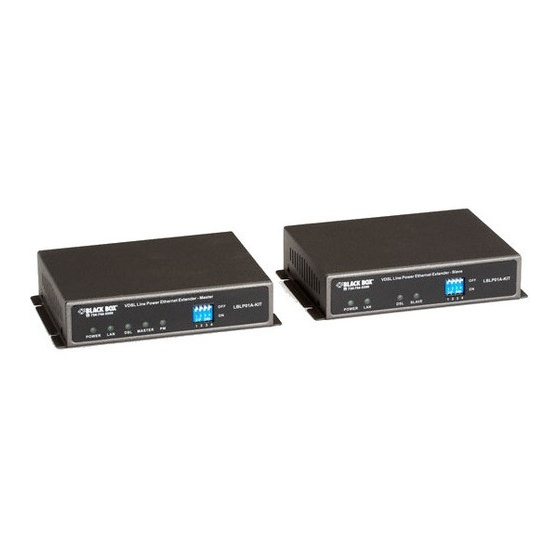

VDSL2 Line Power Ethernet Extender Kit
Extend Ethernet with 100-/60-Mbps downstream/
upstream connections over copper.
Bridges 10BASE-T/100BASE-TX Ethernet interface.
Supports connections up to 1000 feet (304.8 m).
Select from Fast and Interleaved modes.
Provides low latency for video/voice/data applications.
Conforms to Safety-Extra-Low-Voltage (SELV) standard.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •
Support
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Information
Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
December 2009
LBLP01A-KIT
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box LBLP01A-KIT
Summary of Contents for Black Box LBLP01A-KIT
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) • Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 • Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 • Information Web site: www.blackbox.com • E-mail: info@blackbox.com... - Page 2 VDSL2 Line Power Ethernet Extender Kit Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
- Page 3 FCC and IC RFI Statements Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
- Page 4 VDSL2 Line Power Ethernet Extender Kit Normas Oficiales Mexicanas (NOM) Electrical Safety Statement INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
- Page 5 CE Statement European Community (CE) Electromagnetic Compatibility Directive This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/EN61000-3 and the Generic European Immunity Standard EN55024. EMC: EN55022(2003)/CISPR-2(2002): Class A IEC61000-4-2(2001): 4 KV CD, 8 KV AD IEC61000-4-3(2002): 3 V/m IEC61000-4-4(2001): 1 KV (power line), 0.5 KV (signal line) Page 5...
-
Page 6: Table Of Contents
VDSL2 Line Power Ethernet Extender Kit 1. Specifications ......................................7 2. Overview ......................................... 8 2.1 Introduction ...................................... 8 2.2 Features ......................................8 2.3 Application ....................................... 9 2.4 What’s Included ....................................9 2.5 LED Description ....................................9 2.6 Front and Back Panels ..................................10 3. -
Page 7: Specifications
Chapter 1: Specifications 1. Specifications Data Rate (Maximum): 100/60 Mbps (downstream/upstream) Transmission Distance (Maximum): 1000 ft. (304.8 m) Flow Control: Half-/full-duplex, autodetects for 10BASE-T/100BASE-TX MDI-X: Automatic Standards: ITU-T G.993.1/2, SG15Q4 DMT compliant, trellis code with 1024 DMT bins, EMI emissions compliant, FCC Class A, CE, IEEE 802.3/IEEE 802.3u Ethernet, 10BASE-T/100BASE-TX, IEEE 802.3af PoE Connectors: (1) RJ-11, (1) RJ-45 Indicators: (9) LEDs: (5) Master: Power, LAN, DSL, Master, PM;... -
Page 8: Overview
It’s a cost-effective line power solution for high-bandwidth applications such as LAN-to-LAN connectivity, video streaming, FTTB, and MDU/MTU. The LBLP01A-KIT supports transmission distance up to 500 feet (152.4 m) for line power connection at 100/60 Mbps down- stream/upstream and up to 1000 feet (304.8 m) at 98/53 Mbps downstream/upstream. The LBLP01A-KIT is always configured as one master unit for the central side, and one slave unit for the remote side. -
Page 9: Application
Internet Figure 2-1. Typical application. 2.4 What’s Included Your package should include the following items. If anything is missing or damaged, please contact Black Box Technical Support at 724-746-5500. • (1) VDSL2 Line Power Ethernet Extender (Master) • (1) VDSL2 Line Power Ethernet Extender (Slave) •... -
Page 10: Front And Back Panels
VDSL2 Line Power Ethernet Extender Kit 2.6 Front and Back Panels Figures 2-2 and 2-3 show the master unit’s front and back panels and describe their components. VDSL Line Power Ethernet Extender—Master DIP Switches LED Indicators Figure 2-2. Master front panel. Power Input RJ-11 Connector RJ-45 Connector... -
Page 11: Installation
Chapter 3: Installation 3. Installation Because the VDSL2 Line Power Ethernet Extender units require no configuration, they can be installed quickly. Follow these steps: 1. Connect the line interface between the units via RJ-11 cable. 2. Connect the Ethernet interface using RJ-45 cable. 3. -
Page 12: Dip Switches
VDSL2 Line Power Ethernet Extender Kit 4. DIP Switches Table 4-1 shows the definition of the DIP Switches. Select the switches for optimal configuration. Table 4-1. DIP switches and their functions. DIP Switches SW-1 SW-2 SW-3 SW-4 Definition CO/Remote Impulse Noise Data Rate Protection Mode Interleaved... - Page 13 About Black Box Black Box Network Services is your source for more than 118,000 networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 20 seconds or less.
