10/100BASE-T Ethernet Extender over VDSL2
Transmits up to 100-/60-Mbps downstream/
upstream data up to 984.2 feet (300 meters)
over a single twisted pair of copper wire.
Supports 30-/10-Mbps at distances up to 3280 feet (1 km).
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
Support
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
Information
PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
LBT01A-KIT
®
Advertisement
Table of Contents
Related Manuals for Black Box LBT01A-KIT
Summary of Contents for Black Box LBT01A-KIT
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax Support 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, Information PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com... - Page 2 FCC and IC RFI Statements/ NOM Statement FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication.
- Page 3 NOM Statement 4. Todas las instrucciones de operación y uso deben ser seguidas. 5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc. 6.
- Page 4 NOM Statement 16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo. 17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación. 18.
- Page 5 Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
-
Page 6: Table Of Contents
Table of Contents Chapter Page Specifications .................... 7 1.1 General .................... 7 1.2 Data Rates and Distances ..............7 Overview ....................8 2.1 Introduction ..................8 2.2 Features .................... 8 2.3 What’s Included ................9 2.4 Hardware Description ............... 9 2.5 Typical Application ................11 DIP Switch Settings ..................12 LED Indicators ..................13... -
Page 7: Specifications
Chapter 1: Specifications 1. Specifications 1.1 General Autodetection — Autodetects 10/100BASE-T and half-/full-duplex, automatic MDI/MDI-X Coding — Trellis code with 1024 DMT bins Standards — VDSL Transmission: ITU-T G.993.1/2 SG15Q4 DT standard; LAN Interface: IEEE 802.3/IEEE 802.3u Connectors — VDSL: (1) RJ-11 for DSL or 3-pin terminal block; POTS: (1) RJ-11;... -
Page 8: Overview

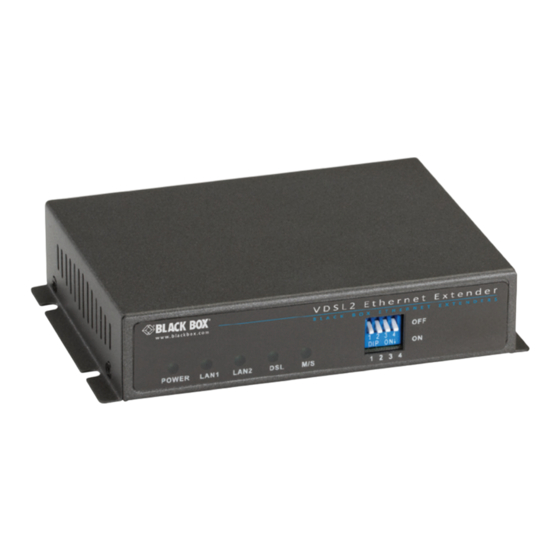

Chapter 2: Overview 2. Overview 2.1 Introduction The 10/100BASE-T Ethernet Extender over VDSL2 (very high-bit-rate digital subscriber line) provides a broadband transmission up to 100-/60-Mbps downstream/upstream data rates over a single twisted-pair copper line for point-to-point Ethernet. At 100-/60-Mbps data rates, the extender supports transmission distances up to 984.2 feet (300 meters), and provides a 30-/10-Mbps data rate for a 3280 feet (1 km) connection. -
Page 9: What's Included
2.3 What’s Included Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. • (2) 10/100BASE-T Ethernet Extenders over VDSL2 •... - Page 10 Chapter 2: Overview Figure 2-2. Back panel. Table 2-1. 10/100BASE-T Ethernet Extender components. Number Component Description Power LED Lights green when power is on Lights green when LAN is connected LAN LED Flashing green when LAN is active Lights green when VDSL is connected DSL LED Flashing green when VDSL is in line handshakking M/S LED...
-
Page 11: Typical Application
Chapter 2: Overview 2.5 Typical Application Public switched telephone network 10-/60-Mbps POTS line POTS line for 984.2 ft. (300 m) Ethernet Max. 6561 ft. (2 km) for DSL line Router Internet Figure 2-3. Ethernet to Ethernet Bridge Extension over DSL Line. Page 11 724-746-5500 | blackbox.com... -
Page 12: Dip Switch Settings
Chapter 3: DIP Switch Settings 3. DIP Switch Settings Table 3-1 describes the DIP switches on the extender. Table 3-1. DIP switches. Pin Number: Postion: Position: Name Description Description 1: CO/CPE Extender is configured as Extender is configured as switch Central Office Customer Premise Equipment Protection for up to 250 ms... -
Page 13: Led Indicators
Chapter 4: LED Indicators 4. LED Indicators The extender‘s front panel (see Figure 2-1) has four LED indicators, which are described in Table 4-1. Table 4-1. LED indicators. Color Description Power Green ON Power to the unit is on Green ON Ethernet LAN port is connected Flashing green Ethernet LAN data is active... - Page 14 NOTES Page 14 724-746-5500 | blackbox.com...
- Page 15 NOTES Page 15 724-746-5500 | blackbox.com...
- Page 16 724-746-5500 or blackbox.com. About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
