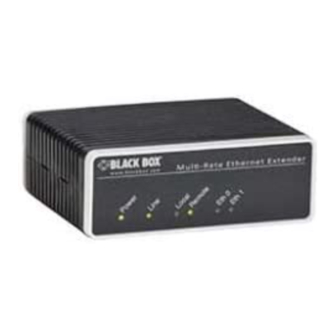

Black Box LB200A User Manual

Multi-rate ethernet extender
Hide thumbs Also See for LB200A:
Table of Contents

Advertisement

Quick Links

Download this manual

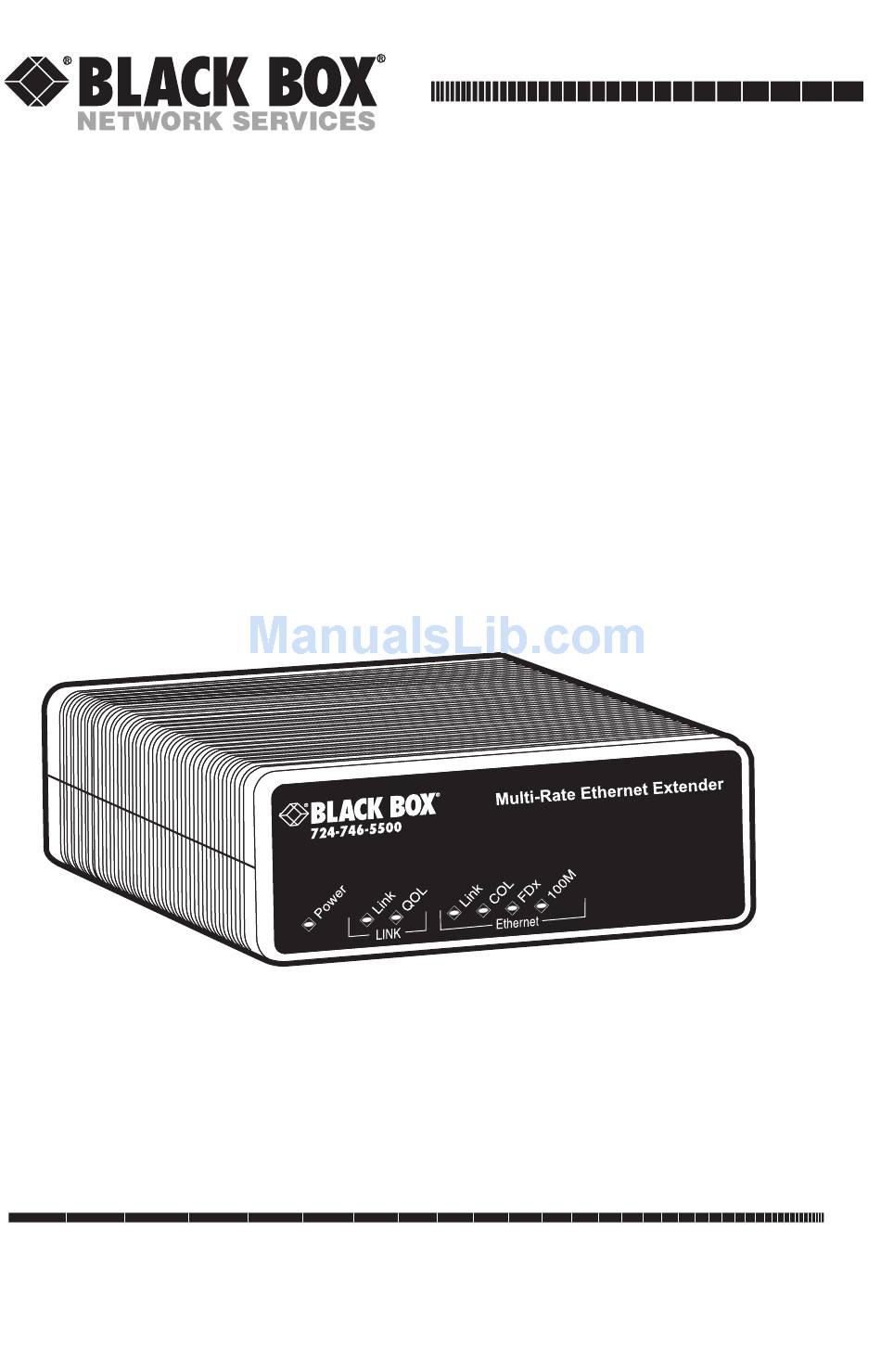

DECEMBER 2006
LB200A
Multi-Rate
Ethernet Extender
CUSTOMER
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
SUPPORT
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
INFORMATION
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB200A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LB200A

Summary of Contents for Black Box LB200A

  • Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...

  • Page 2: Ce Notice

    MULTI-RATE ETHERNET EXTENDER CE NOTICE The CE symbol on your Black Box equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). A Certificate of Compliance is available by contacting Technical Support.

  • Page 3: Trademarks Used In This Manual

    MULTI-RATE ETHERNET EXTENDER In accordance with the requirements of council direc- tive 2002/96/EC on Waste of Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you sepa- rate this product from other waste and scrap and deliver to the WEEE collection system in your country for recy- cling.
  • Page 4 MULTI-RATE ETHERNET EXTENDER 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato. 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.

  • Page 5: Table Of Contents

    MULTI-RATE ETHERNET EXTENDER CONTENTS CE Notice ....................2 Radio and TV Interference ................2 Trademarks Used In This Manual ............... 3 Normas Oficiales Mexicanas (NOM) Electrical Safety Statement ..... 3 General Information ..................7 1.1 Features ....................7 1.2 Description ..................7 Installation ....................
  • Page 6 MULTI-RATE ETHERNET EXTENDER B.1 10/100Base-T Interface ..............20 B.2 Line Interface ..................20 Distance Chart, Based on 24 AWG (0.5 MM) .......... 21...

  • Page 7: General Information

    MULTI-RATE ETHERNET EXTENDER 1. General Information Thank you for your purchase of this Black Box product. If any questions arise during installation or use of the unit, contact Black Box Tech Support at (724) 746-5500. 1.1 Features Easy to install standalone Multi-Rate Ethernet Extenders—no configuration •...
  • Page 8 MULTI-RATE ETHERNET EXTENDER ently (unmodified) through the Multi-Rate Ethernet Extenders. The Ethernet Extenders automatically add and delete MAC addresses, only passing packets across the link that are meant for the remote peered LAN. Figure 1. Typical application The Local and Remote Multi-Rate Ethernet Extenders work together to create a transparent extension between two peered Ethernet LANs.

  • Page 9: Installation

    MULTI-RATE ETHERNET EXTENDER 2. Installation Because the LB200A requires no configuration, it can be installed quickly. Note If asymmetric transmission or line rates other than 12.5 Mbps are required, refer to section 3., “Configuration” on page 13. 2.1 Installing the Multi-Rate Ethernet Extender Do the following: 1.

  • Page 10: Connecting The Twisted-Pair Line Interface

    MULTI-RATE ETHERNET EXTENDER 2.2 Connecting the Twisted-Pair Line Interface The Multi-Rate Ethernet Extender supports communication between two peer Ethernet LAN sites over a distance of up to 6,000 ft (1.83 km) over 24 AWG (0.5 mm) twisted-pair wire. Note Actual distance and link performance may vary depending on the envi- ronment and type/gauge of wire used.

  • Page 11: Connecting The 10/100Base-T Ethernet Interface

    MULTI-RATE ETHERNET EXTENDER 2.3 Connecting the 10/100Base-T Ethernet Interface The unshielded RJ-45 port labeled Ethernet is the Auto-MDIX 10/100Base-T interface. This port is designed to connect directly to a 10/100Base-T network. Figure 4 shows the signal/pin relationships on this interface. You may connect this port to a hub or PC using a straight through or crossover cable that is up to 328 ft long.

  • Page 12: Connecting Power

    The Ethernet Extender does not have a power switch, so it powers up as soon as it is plugged in. There are no user-serviceable parts in the LB200A modem. Fuse replacement should only be per- formed by qualified service personnel. Contact Black Box Technical support at (724) 746-5500 for more information.

  • Page 13: Configuration

    MULTI-RATE ETHERNET EXTENDER 3. Configuration The Multi-Rate Ethernet Extender has eight DIP switches for configuring the unit for a wide variety of applications. This section describes switch locations and explains the different configurations. Using a small flat-tip screwdriver, remove the protective cover located on the underside of the Ethernet Extender (see Figure 5).

  • Page 14: Configuring Dip Switch S1

    MULTI-RATE ETHERNET EXTENDER Figure 6 shows the orientation of the DIP switches in the On and Off positions. Figure 6. DIP switch orientation 3.1 Configuring DIP Switch S1 DIP switch S1 is where you configure the Link line rate, symmetric or asymmetric, Ethernet full auto negotiation capability (100Base-T full or half duplex, 10Base-T full or half duplex) or limited auto sense (only 100Base-T half duplex, 10Base-T full or half duplex).

  • Page 15: Switches S1-2 Through S1-4: Data Rate

    MULTI-RATE ETHERNET EXTENDER does not comply with IEEE 802.3x (back pressure flow control) at 100M full duplex. Table 1: Ethernet Auto Negotiation Selection Chart S1-1 Setting Full Auto Negotiation (Factory Default) (100 Mbps, Full or Half Duplex) (10 Mbps, Full or Half Duplex) Limited Auto Negotiation (100 Mbps Half Duplex) 10 Mbps Full or Half Duplex)

  • Page 16: Operation

    Before applying power to the Ethernet Extender, review section 2.4, “Connecting Power” on page 12 to verify that the unit is connected to the appropriate power source. There are no user-serviceable parts in the LB200A modem. Fuse replacement should only be per- formed by qualified service personnel. Contact Black Box Technical support at (724) 746-5500 for more information.
  • Page 17 MULTI-RATE ETHERNET EXTENDER Table 5: Front panel LED description Description Power On (green) when power is applied to the unit. Off when no power is applied to the unit. Link On (green) when the end-to-end link between the units is established. Off when the link has not been established or when the link fails.

  • Page 18: Specifications

    MULTI-RATE ETHERNET EXTENDER A. Specifications A.1 LAN Connection Unshielded RJ-45, 10/100Base-T, IEEE 802.3 Ethernet • Line Connection: RJ-45 • A.2 Transmission Line Two-wire unconditioned twisted pair. A.3 Multi-Rate Ethernet Extender Line Rate 16.67 Mbps, symmetric upstream/downstream. Additional symmetric and asym- metric rates are available via DIP switch settings: Symmetric Line Rates: •...

  • Page 19: Power Supply

    MULTI-RATE ETHERNET EXTENDER A.7 Power Supply Input power: 5 VDC, 1A Power consumption: 560 mA at 5 VDC External AC and DC options: AC: 120 VAC, 220 VAC, and UI (120–240 VAC) • DC: 12 VDC, 24 VDC and 48 VDC •...

  • Page 20: Multi-Rate Ethernet Extender Interface Pin Assignment

    MULTI-RATE ETHERNET EXTENDER B. Multi-Rate Ethernet Extender Interface Pin Assignment B.1 10/100Base-T Interface RJ-45 Pin 1: TX+/RX+ • Pin 2: TX-/RX- • Pin 3: RX+/TX+ • Pin 6: RX-/TX- • • Pins 4, 5, 7, 8: no connection B.2 Line Interface RJ-45 Pin 4: RING •...

  • Page 21: C. Distance Chart, Based On 24 Awg (0.5 Mm)

    MULTI-RATE ETHERNET EXTENDER C. Distance Chart, Based on 24 AWG (0.5 MM) Symm Line Rate (DS/US) Distance in feet (km) 6.25 Mbps 4,500 (1.37) 9.38 Mbps 4,150 (1.26) 12.5 Mbps 4,000 (1.22) 16.67 Mbps 3,300 (1.00) Asymm Line Rate (DS/US) Distance in feet (km) 4.17 Mbps/1.56 Mbps 6,000 (1.83)
  • Page 22 MULTI-RATE ETHERNET EXTENDER...
  • Page 23 MULTI-RATE ETHERNET EXTENDER...
  • Page 24 © Copyright 2002. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
