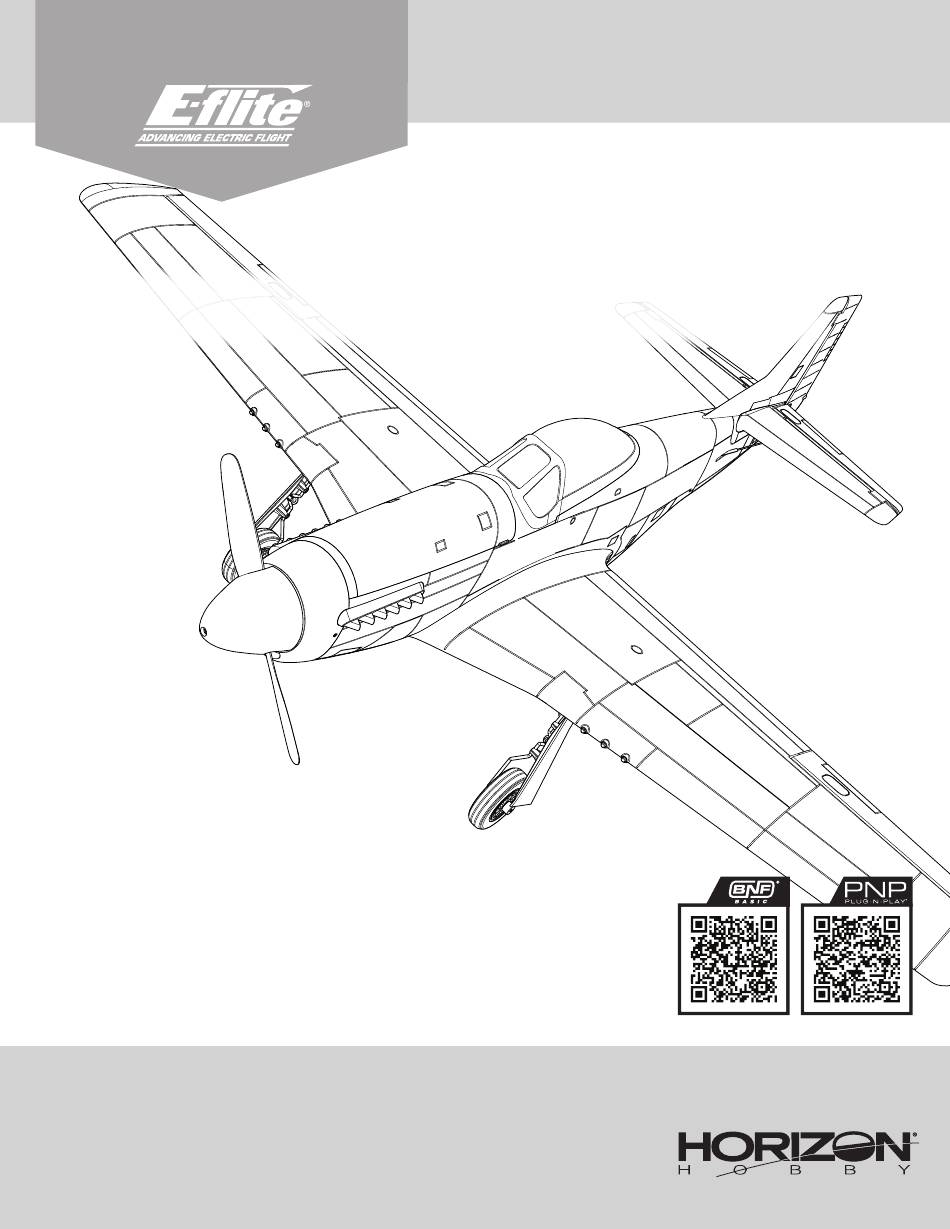

P-51D Mustang 1.0m
Instruction Manual
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Bedienungsanleitung
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Manuel d'utilisation
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
Manuale di Istruzioni
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
EFL02650
EFL02675
834546
Created 8/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-flight EFL02650 and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby E-flight EFL02650

  • Page 1 P-51D Mustang 1.0m Instruction Manual Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Bedienungsanleitung Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
  • Page 2: Safety Precautions And Warnings

    This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
  • Page 3: Table Of Contents

    Registration Specifications Wingspan 39.4" (1002mm) Register your product today to join our mailing list and Length 34.5" (878mm) keep up to date with product updates, offers and E-flite ® Without Battery: 30oz (850g) news. Weight With Recommended 4S 2200mAh Flight Battery: 37.7oz (1069g) Included Equipment Receiver* Spektrum...
  • Page 4: Safe ® Select Technology (Bnf Basic)

    SAFE Select Technology (BNF Basic) ® The BNF Basic version of this airplane includes SAFE Select technology which can SAFE Select can be configured three ways; offer an extra level of protection in flight. Use the following instructions to make the •...
  • Page 5: Manual Transmitter Setup

    Manual Transmitter Setup IMPORTANT: After you set up your model, always rebind the transmitter and Dual Rates receiver to set the desired failsafe positions. Attempt your first flights in low rate. For landings, use high rate elevator. SAFE Select is best enabled via Forward Programming. SAFE Select ®...
  • Page 6: Plug And Play (Pnp) Receiver Selection And Installation

    Plug and Play (PNP) Receiver Selection and Installation NOTICE: Incorrect installation of the receiver could cause a crash. The Spektrum AR631+ receiver is recommended for this aircraft. ™ If you choose to install another receiver, ensure that it is at least a 4-channel full range receiver.
  • Page 7 3. Press the elevator pushrod connector onto the ball link on the elevator control horn. IMPORTANT: The pushrod connector should be centered on the ball link, as shown. Do not press the connector past the center of the ball link. Wing Installation 1.
  • Page 8: General Binding Tips And Failsafe

    General Binding Tips and Failsafe • The included receiver has been specifically programmed for operation of • Once bound, the receiver will retain its bind settings for that transmitter until this aircraft. Refer to the receiver manual for correct setup if the receiver is you re-bind.
  • Page 9: Safe ® Select Switch Designation

    SAFE Select Switch Designation ® SAFE Select technology can be easily assigned to any open switch (2 or 3 position) ® Mode 1 and 2 Transmitters on your transmitter. With this feature, you have the flexibility to enable or disable the technology while in flight.
  • Page 10: Center Of Gravity (Cg)

    Center of Gravity (CG) CAUTION: Install the flight battery but do not connect it to the ESC while checking the CG. Personal injury may result. The recommended CG location is 75-85mm back from the leading edge of the wing, measured at the fuselage. Check the CG with the aircraft inverted. Adjust the CG by moving the flight battery forward or backward in the battery compartment.
  • Page 11: Control Surface Centering

    Control Surface Centering After assembly and transmitter setup, confirm that the control surfaces are centered. The model must be powered on, with the throttle at zero. IMPORTANT: SAFE mode must be disabled while centering the control surfaces. 1. Verify the trims and subtrims on your transmitter are zero 2.
  • Page 12: Dual Rates And Control Throws

    Dual Rates and Control Throws Program your transmitter to set the rates and control throws based on your Low Rate High Rate experience level. These values have been tested and are a good starting point to Aileron 12mm up, 14mm down 15mm up, 18mm down achieve a successful first flight.
  • Page 13: Safe Select Flying Tips (Bnf Basic)

    SAFE Select Flying Tips (BNF Basic) Differences between SAFE Select and AS3X+ modes When flying in SAFE Select mode the aircraft will return to level flight any time the aileron and elevator controls are at neutral. Applying aileron or elevator control This section is generally accurate but does not take into account flight speed, will cause the airplane to bank, climb or dive.
  • Page 14: Control Horn And Servo Arm Settings

    Control Horn and Servo Arm Settings NOTICE: If control throws are changed from the factory settings, the AR631+ Factory Settings gain values may need to be adjusted. Refer to the Spektrum AR631+ manual for Control Horns Servo Arms adjustment of gain values. The table to the right shows the factory settings for the control horns and servo Elevator arms.
  • Page 15: Troubleshooting Guide As3X+ (Bnf Basic)

    Troubleshooting Guide AS3X+ (BNF Basic) Problem Possible Cause Solution Damaged propeller or spinner Replace propeller or spinner Imbalanced propeller Balance the propeller Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed Oscillation Loose receiver Align and secure receiver in fuselage Loose aircraft controls Tighten or otherwise secure parts (servo, arm, linkage, horn and control surface) Worn parts...
  • Page 16: Replacement Parts

    Replacement Parts Optional Parts Part # Description Part # Description EFLA1030FB 30-Amp Telemetry Capable ESC SPMX22003S30 2200mAh 3S 11.1V Smart Li-Po 30C; IC3 SPM-1031 AR631+ 6 Channel AS3X+ & SAFE Receiver SPMX223S30 2200mAh 3S 11.1V Smart G2 LiPo 30C; IC3 EFL-1734 Fuselage: P-51D 1.0m SPMX22004S30...
  • Page 17: Limited Warranty

    What this Warranty Covers to better answer your questions and service you in the event that you may need Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product any assistance. For questions or assistance, please visit our website at www.
  • Page 18: Fcc Information

    EU Importer of Record: Amending 2011/65/EU Annex II 2015/863. Horizon Hobby, GmbH EFL P-51D PNP (EFL02675): Hereby, Horizon Hobby, LLC declares that the Hanskampring 9 device is in compliance with the following: EU EMC Directive 2014/30/EU. RoHS 2 Directive 2011/65/EU, RoHS 3 Directive - Amending 2011/65/EU Annex II 22885 Barsbüttel Germany...
  • Page 19 ©2024 Horizon Hobby, LLC. E-Flite, Plug-N-Play, Bind-N-Fly, BNF, the BNF logo, DSM, DSM2, DSMX, AirWare, IC3, AS3X, SAFE, the SAFE logo, ModelMatch, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
