Summary of Contents for Elumen8 Kudos 700 Beam

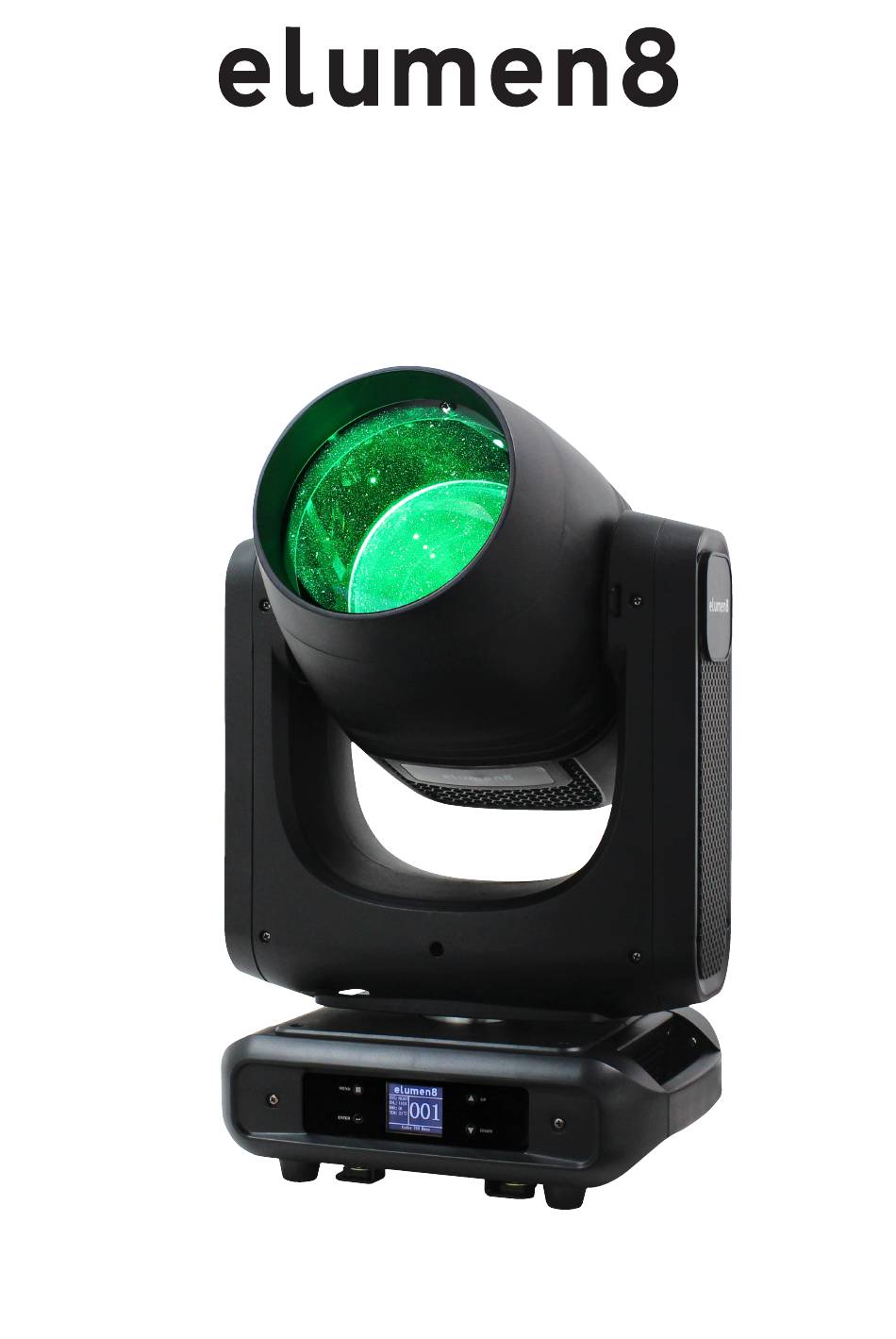

  • Page 1 Kudos 700 Beam User Manual Order codes: ELUM019...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 3 To avoid damage to internal parts ie. optics, colour filters, gobos, prisms, frost filters, iris, shutters, motors, belts, wiring or LEDs never expose the front lens to direct sunlight, lighting fixtures or lasers even when the fixture is not in use. www.prolight.co.uk Kudos 700 Beam User Manual...

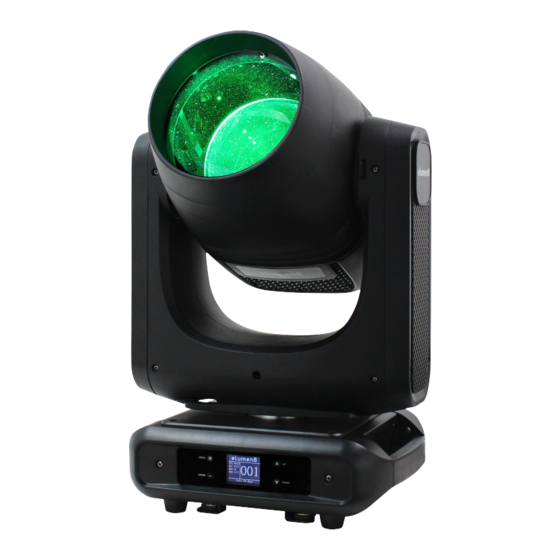

  • Page 4 Kudos 700 Beam The Kudos 700 Beam projects a tight 2° concentrated beam from its powerful 110W LED source. Inside the ergonomic head are 2 circular rotating prisms (8 facet and 16 facet), 12 colours + 5600K + 3200K + open, 17 fixed gobos + open, 12°...

  • Page 5: Technical Specifications

    Technical specifications 210mm 122mm 327mm 222mm 310mm 338mm www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 6 07 - Fuse F2A 250V 1 x power cable 02 - Function buttons 05 - PowerCON input 08 - Power switch & 1 x user manual 03 - 5-Pin DMX input 06 - PowerCON output 09 - Fans www.prolight.co.uk Kudos 700 Beam User Manual...

  • Page 7: Installation

    The installation should be checked annually by a qualified person. The eLumen8 Kudos 700 Beam can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface.
  • Page 8 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 9 Pan/Tilt Lock Mechanism Pan mechanism lock and release every 90° UNLOCKED LOCKED Tilt mechanism lock and release every 90° LOCKED UNLOCKED www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 10 The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “eLumen8 Kudos 700 Beam”, “System Initialising...” whilst the unit performs its motor reset. The fixture will then return to its home screen.
  • Page 11 2) Blackout “DMX Fail” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between “Hold” or “Blackout”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 12 “000” - “255”. Press the “ENTER” button to confirm the setting. 4) Strobe 5) Colour 6) Gobo 7) Prism1 8) Prism 1 Rot 9) Prism2 10) Prism2 Rot 11) Frost 12) Focus Default www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 13 Press the “ENTER” button and use the “UP” and “DOWN” buttons to select “Tilt Invert”. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “ON” and “Off”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 14 “UP” and “DOWN” buttons to select “BL.O Gobo”. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “ON” and “Off”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 15 Press the “ENTER” button and use the “UP” and “DOWN” buttons to select “Display Inverse”.Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “ON” and “Off”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 16 “UP” and “DOWN” buttons to select “Factory Reset”. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “Yes” and “No”. Press the “ENTER” button to perform the factory setting reset when yes is selected. www.prolight.co.uk Kudos 700 Beam User Manual...

  • Page 17: Fixture Information

    LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to show “About” on the LCD display. Press the “ENTER” button. The unit will now display the fixtures software version and RDM ID. www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 18 CTO 260 + CTO 190 103-106 CTO 190 107-110 CTO 190 + CTB 8000 111-115 CTB 8000 116-119 CTB 8000 + Dark Blue 120-123 Dark Blue 124-127 Dark Blue + Open Colour Wheel Rotation 128-255 (slow-fast) www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 19 Gobo 10 shake (slow-fast) 218-223 Gobo 11 shake (slow-fast) 224-230 Gobo 12 shake (slow-fast) 231-236 Gobo 13 shake (slow-fast) 237-243 Gobo 14 shake (slow-fast) 244-249 Gobo 16 shake (slow-fast) 250-255 Gobo 17 shake (slow-fast) www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 20 CTO 260 + CTO 190 103-106 CTO 190 107-110 CTO 190 + CTB 8000 111-115 CTB 8000 116-119 CTB 8000 + Dark Blue 120-123 Dark Blue 124-127 Dark Blue + Open Colour Wheel Rotation 128-255 (slow-fast) www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 21 Gobo 10 shake (slow-fast) 218-223 Gobo 11 shake (slow-fast) 224-230 Gobo 12 shake (slow-fast) 231-236 Gobo 13 shake (slow-fast) 237-243 Gobo 14 shake (slow-fast) 244-249 Gobo 16 shake (slow-fast) 250-255 Gobo 17 shake (slow-fast) www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 22 Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8 Gobo 9 Gobo 10 Gobo 11 Gobo 12 Gobo 13 Gobo 14 Gobo 15 Gobo 16 Gobo 17 www.prolight.co.uk Kudos 700 Beam User Manual...

  • Page 23: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Kudos 700 Beam User Manual...

  • Page 24: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Kudos 700 Beam User Manual...

  • Page 25: Optional Accessories

    Please note: Caution should be used when power linking other fixtures to the Kudos 700 Beam as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

  • Page 26: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Kudos 700 Beam User Manual...
  • Page 27 Kudos 700 Beam User Manual...
  • Page 28 Kudos 700 Beam User Manual...
