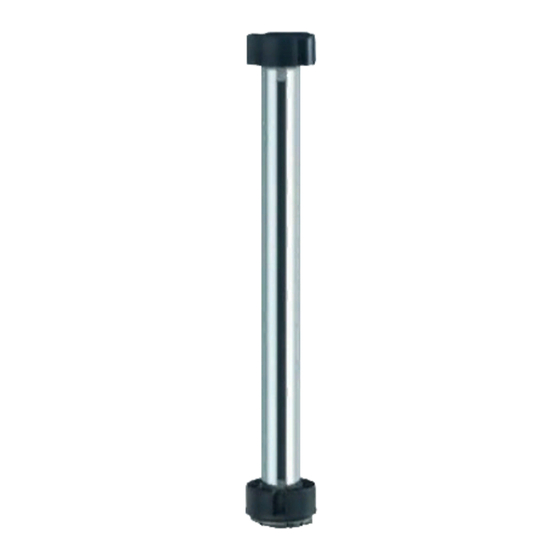

  • Page 1 Tubular motor: GEIGER-SOLIDline* Motor control: GEIGER-Touch (GU45..M) for rolling shutters, awnings and screens Bedienungsanleitung Operating Instructions Manuel d’utilisation Manual de instrucciones Istruzioni per l’uso *not for ZN motor head www.geiger-antriebstechnik.de...

  • Page 2: General Information

    45 mm Weight approx. approx. approx. approx. 1,9 kg 2,2 kg 2,4 kg 2,7 kg SOLIDline-ZN/-KS: +1 mm / SOLIDline-COM/-SIC + 4,5 mm / SOLIDline-SOC: + 4 mm Subject to technical modifications Gerhard Geiger GmbH & Co. KG | 100W0570 1011...

  • Page 3: General Information

    1. General information Dear customer, By purchasing a GEIGER tubular motor you have decided on a quality product from GEIGER. Thank you very much for your decision and the confidence placed in us. Before you put this drive into operation please observe the following safety information.

  • Page 4: Intended Use

    If the tubular motors are used for other applications and/or modifications are performed to the tubular motors, which have not been discussed with GEIGER Antriebstechnik, then the manufacturer is not liable for personal injury and/or damage to property and for consequential damage.

  • Page 5: Installation Instructions

    – Place the motor with square insert in the star- shaped bearer and lock with pin – Place the motor into the existing engine bearer and lock – Place the motor in a compatible engine bearer with clip system and lock with spring or rotating lever www.geiger-antriebstechnik.de...

  • Page 6: Setting Of The End Stops

    There is no need to first delete the end stops (memorised) if you wish to modify them. It is possible to adjust an end stop without modifying the other ones. Gerhard Geiger GmbH & Co. KG | 100W0570 1011...

  • Page 7: Declaration Of Conformity

    It is authorised for use in all EC member states and in Switzerland without any need of prior registration. The Declaration of Conformity concerning this product is available on our website: www.geiger-antriebstechnik.de. 8. Information for the specialist electrician...
  • Page 8 For technical questions, please call our service team at: +49 (0) 7142 938-300. They will be happy to assist you. Gerhard Geiger GmbH & Co. KG Schleifmühle 6 D-74321 Bietigheim-Bissingen Telephone: +49 (0) 7142 938-0 Telefax: +49 (0) 7142 938-230 www.geiger-antriebstechnik.de info@geiger-antriebstechnik.de Gerhard Geiger GmbH & Co. KG | 100W0570 1011...
