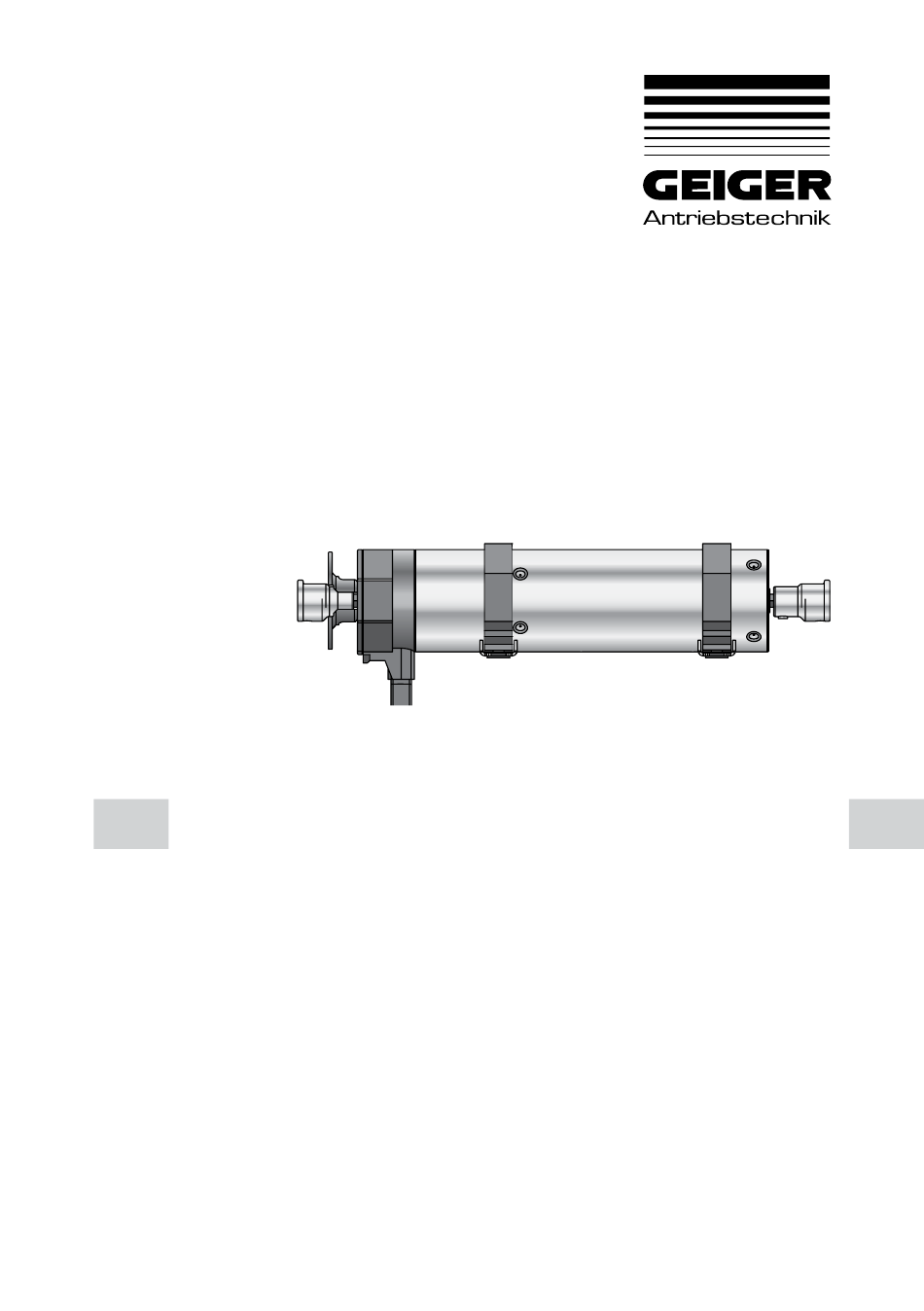

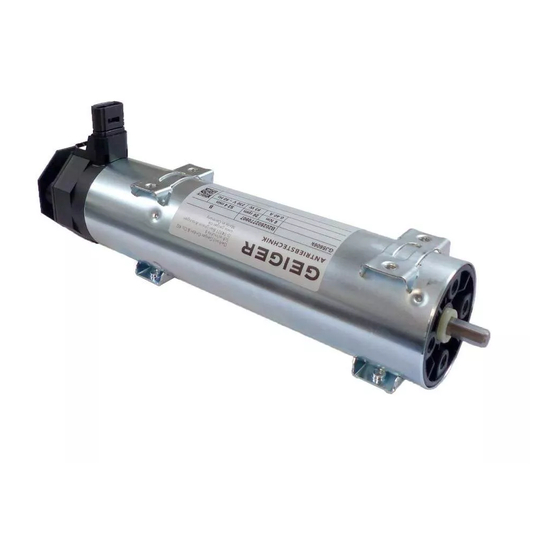

- Page 1 Venetian blind motor: GEIGER-GJ56.. For Venetian blinds and exterior blinds Original-Montage- und Betriebsanleitung Original installation and operating instructions Manuel d’utilisation Manual de instrucciones Istruzioni per l’uso www.geiger-antriebstechnik.de...
-
Page 2: Table Of Contents
12. What to do if… ..............10 1. General information Dear customer, By purchasing a GEIGER motor you have decided on a quality product from GEIGER. Thank you very much for your decision and the confidence placed in us. Before you put this drive into operation please observe the following safety information. -
Page 3: Safety Information
ATTENTION: Important safety information. For personal safety, it is important to follow these instructions. The instructions should be kept. f This appliance is not to be used by persons (including children) whose physical, sensorial or mental capacities are impaired, or who have no expe r ience or know-how, unless they have been supervised or been given instructions on the use of the appliance by someone who is responsible for their safety. f Children must be supervised to make sure they do not play with the a ppliance. f The installation is to be checked regularly for defective balance, wear and damage. f Damaged connecting leads must be replaced by the GEIGER connecting lead of the same wire type. f During operation observe the danger zone. f If people or objects are in the danger zone, do not use the installation. f Urgently shut down damaged installations until repair. f Unconditionally shut down the unit during maintenance and cleaning operations. f Pinching and shearing sites are to be avoided and to be safeguarded against. f When operating the manual actuator with the open sun protection system, exercise c aution as it can fall down quickly if springs expand or are broken. f Do not operate the device if operations such as, for example, window cleaning are to be carried out in the vicinity. -
Page 4: Intended Use
Venetian blinds and exterior blinds. If the motors are used for other applications and/or modifications are performed to the motors, which have not been discussed with GEIGER Antriebstechnik, then the manufacturer is not liable for personal injury and/or damage to property and for consequential damage. -
Page 5: Installation Instructions
6. Installation instructions Prior to installation please check to ensure there is no visible damage to the motor like cracks or open cables. Before fixing please check the strength of the masonry and of the surface. Head rail opening at top: www.geiger-antriebstechnik.de... - Page 6 Head rail opening at bottom: Gerhard Geiger GmbH & Co. KG | 100W0599 0812...
-
Page 7: Setting Of The End Stops
Move the Venetian blind approx. 300 mm above the required end position. Press the white adjustment button. Move down the Venetian blind to the required end position. Move up the Venetian blind about 6 seconds until the white adjustment button jumps back audibly (click). Now the lower end position is adjusted. www.geiger-antriebstechnik.de... -
Page 8: Technical Data
80 rotations Operating mode KB 6 min KB 6 min Length 304 mm 336 mm Diameter 55 mm 55 mm Weight approx 1,60 approx 2,20 kg Subject to technical modifications geprüfte Sicherheit Gerhard Geiger GmbH & Co. KG | 100W0599 0812... -
Page 9: Information For The Specialist Electrician
It is authorised for use in all EC member states and in Switzerland without any need of prior registration. The Declaration of Conformity concerning this product is available on our website: www.geiger-antriebstechnik.de. 11. N otes on waste disposal Recycling of packaging materials In the interest of environmental protection, please contact your local government’s recycling or solid waste management department to learn more about the services it provides. -
Page 10: What To Do If
For technical questions, please call our service team at: +49 (0) 7142 938-300. They will be happy to assist you. Gerhard Geiger GmbH & Co. KG Schleifmühle 6 D-74321 Bietigheim-Bissingen Telephone: +49 (0) 7142 938-0 Telefax: +49 (0) 7142 938-230 www.geiger-antriebstechnik.de info@geiger-antriebstechnik.de Gerhard Geiger GmbH & Co. KG | 100W0599 0812...
