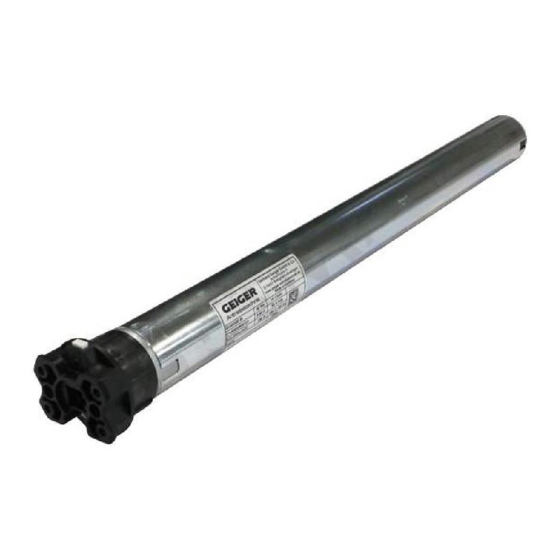

- Page 1 Tubular motor: GEIGER-SOLIDline Motor control: GEIGER-SoftPerfection-S (GU45..E04) for rolling shutters with stoppers and anti-lift device Bedienungsanleitung Operating Instructions Manuel d’utilisation Manual de instrucciones Istruzioni per l’uso www.geiger.de...
-
Page 2: Table Of Contents
10. End position correction ...........7 11. Technical data ..............8 12. Declaration of conformity ..........8 13. Information for the specialist electrician .......9 14. Notes on waste disposal ..........9 15. What to do if… ..............10 Gerhard Geiger GmbH & Co. KG | 100W0550 V000 0518... -
Page 3: Geiger-Softperfection-S: Special Features
Ready! Plug & Play! Cloth protection with the Soft-System • The GEIGER Soft position ensures that the hanging stops a few millimetres before reaching the upper end position. The hanging is thus optimally protected. Two exceptions: the programming runs and the reference runs after 50 cycles. -
Page 4: General Information
2. General information Dear customer, By purchasing a GEIGER tubular motor you have decided on a quality product from GEIGER. Thank you very much for your decision and the confidence placed in us. Before you put this drive into operation please observe the following safety information. -
Page 5: Intended Use
If the tubular motors are used for other applications and/or modifications are performed to the tubular motors, which have not been discussed with GEIGER Antriebstechnik, then the manufacturer is not liable for personal injury and/or damage to property and for consequential damage. -
Page 6: Installation Instructions
7. Setting of end stops 1. Connect the connecting cable to the motor 2. Move the shutter to both end positions once (any order will do) 3. DONE! Gerhard Geiger GmbH & Co. KG | 100W0550 V000 0518... -
Page 7: Delete The End Positions
If, due to temperature changes, modified winding behaviour should arise and the hangings should run against the stop, an immediate end position correction takes place. In addition, the counter for the end position correction is started afresh. www.geiger.de... -
Page 8: Technical Data
2,7 kg SOLIDline-COM + 3,5 mm / SOLIDline-SOC: + 3 mm / SOLIDline-SIL: ± 0 mm (without trunnion) Subject to technical modifications. Please find information to the ambient temperature range of our GEIGER motors under www.geiger.de geprüfte Sicherheit 12. Declaration of conformity We herewith explicitly declare that this product complies with the essential require- ments and relevant directives. -
Page 9: Information For The Specialist Electrician
Waste disposal of electric and electronic equipment Electronic equipment or batteries cannot be discarded along with the normal household waste. Keep for more information on the recycling and disposal methods envisaged by the local regula- tions in your area. www.geiger.de... -
Page 10: What To Do If
They will be happy to assist you. Gerhard Geiger GmbH & Co. KG Schleifmühle 6 D-74321 Bietigheim-Bissingen Telephone: +49 (0) 7142 938-0 Telefax: +49 (0) 7142 938-230 E-Mail: info@geiger.de Internet: www.geiger.de Gerhard Geiger GmbH & Co. KG | 100W0550 V000 0518...
