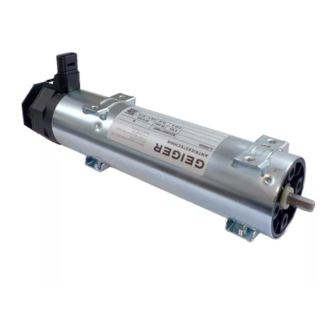

Motor for Venetian blinds: GEIGER GJ56.. AIR (GJ56.. F03) for Venetian blinds Original-Montage- und Betriebsanleitung Original assembly and operating instructions Notice originale de montage et d’utilisation Instrucciones originales de instalación y funcionamiento Istruzioni originali di installazione e funzionamento www.geiger.de...
1. General information Dear customer, By purchasing a GEIGER motor you have decided on a quality product from GEIGER. Thank you very much for your decision and the confidence placed in us. Before you put this drive into operation please observe the following safety instructions. It serves for the prevention of danger and for the avoidance of personal injury and damage to property.
GJ 56 Design options Torque in Nm For head rails at least 56 mm GEIGER Venetian blinds motor 4. Safety instructions ATTENTION: Important safety instructions. For personal safety, it is important to follow these instructions. Please keep these instructions for future reference.
A plug for the disconnection of the motor from the power supply must be accessible after installation. f Damaged connecting cables must be replaced by GEIGER connecting cables of the same type. f The device must be mounted as described in the installation instructions. Fixations shall not be made with adhesives since they are regarded as unreliable.
7. Installation instructions Prior to installation please check to ensure there is no visible damage to the motor like cracks or open cables. Before fixing please check the strength of the masonry and of the surface. Head rail opening at top: www.geiger.de...
Page 6
Head rail opening at bottom: Gerhard Geiger GmbH & Co. KG | 100W2500 V001 0317...
– Connecting cables with plug connectors of the Hirschmann Company are tested and approved with couplings of the Hirschmann Company. Hirschmann plug connectors Function Wire colour PE contact green/yellow Pole 1 blue Pole 2 brown Pole 3 DOWN black Cable designation: 05RR-F 4G 0,75mm www.geiger.de...
Pole 4 blue Cable designation: 05RR-F 5G 0,75mm 9. Operating mode of the GEIGER GJ56.. AIR The motor can be operated in three ways. Individual control: the motor is operated with a handheld or wall transmitter. Alternatively, the motor may be additionally operated with a locked control button. For this purpose, connect the motor with a 5-core connection cable according to the diagram.
10. Connection to the Loxone Miniserver Conditions In order to integrate the GEIGER GJ56.. AIR in your Loxone system, a Miniserver Go or a Miniserver with Air Base Extension must be operational. More information under: www.loxone.com/help/miniserver Commissioning in Loxone Config Open Loxone Config and connect with your Miniserver.
Reset the end stops. The slats are positioned at different • Reset the reference angle of the slats. angles depending if the intermediate position is approached from the top or from below. Gerhard Geiger GmbH & Co. KG | 100W2500 V001 0317...
ETSI EN 301 489-1 ETSI EN 301 489-3 Authorized representative for technical data: Gerhard Geiger GmbH & Co. KG Address: Schleifmühle 6, D-74321 Bietigheim-Bissingen Bietigheim-Bissingen, 02.01.2017 Dr. Marc Natusch (General Manager) Current declarations of conformity are available under www.geiger.de www.geiger.de...
Electrical and electronic equipment must be collected and disposed of separately in accordance with EU regulations. For further information and documentation please visit: www.loxone.com/help/blindmotor-gj56-air Loxone Electronics GmbH A-4154 Kollerschlag www.loxone.com Gerhard Geiger GmbH & Co. KG D-74321 Bietigheim-Bissingen www.geiger.de Gerhard Geiger GmbH & Co. KG | 100W2500 V001 0317...
