Summary of Contents for GEIGER GEIGER-SoftZero-55

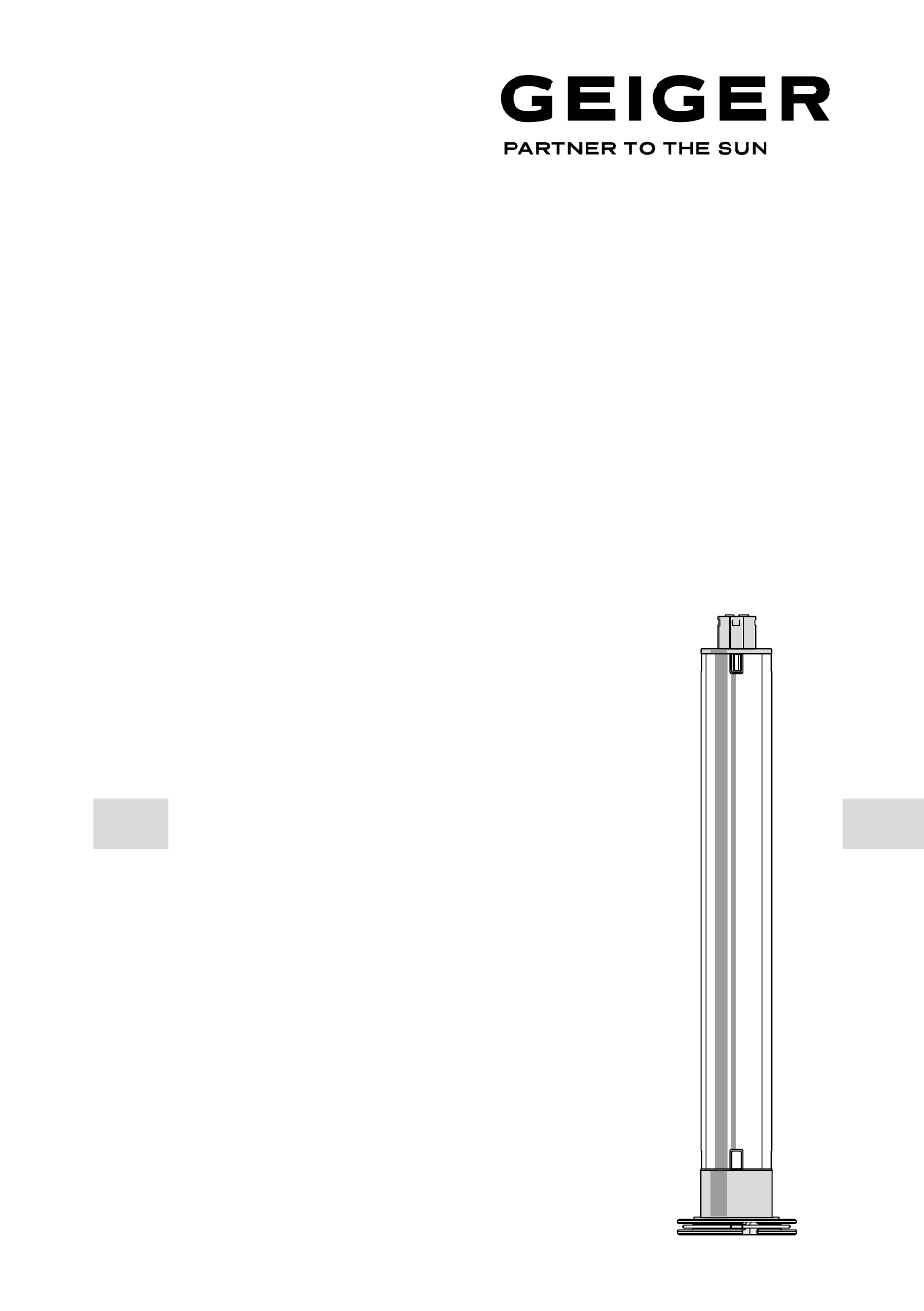

- Page 1 Tubular motor: GEIGER-SOLIDline ../55 Motor control: GEIGER-SoftZero-55 (GU45..E02) for facade awnings, screens and ZIP screens Bedienungsanleitung Operating Instructions Manuel d’utilisation Manual de instrucciones Istruzioni per l’uso www.geiger.de...
-
Page 2: Table Of Contents
10. Obstacle detection ............9 11. Technical data ..............10 12. Declaration of conformity ..........10 13. Information for the specialist electrician .....11 14. Notes on waste disposal ..........11 15. What to do if… ..............12 Gerhard Geiger GmbH & Co. KG | 100W0597 V000 0818... -
Page 3: Characteristics Of The Geiger-Softzero-55
1. Characteristics of the GEIGER-SoftZero-55 Universal electronic motor for facade awnings • Facade awnings, screens and ZIP screens can be operated with the GEIGER SoftZero-55. Safety • A safe locking of the facade awning/screen through torque shutoff Fabric Protection •... -
Page 4: General Information
2. General information Dear customer, By purchasing a GEIGER tubular motor you have decided on a quality product from GEIGER. Thank you very much for your decision and the confidence placed in us. Before you put this drive into operation please observe the following safety information. -
Page 5: Intended Use
ZIP screens. If the tubular motors are used for other applications and/or modifications are performed to the tubular motors, which have not been discussed with GEIGER Antriebstechnik, then the manufacturer is not liable for personal injury and/or damage to property and for consequential damage. -
Page 6: Installation Instructions
– Place the motor into the existing engine bearer and lock – Place the motor in a compatible engine bearer with clip system and lock with spring or rotating lever Gerhard Geiger GmbH & Co. KG | 100W0597 V000 0818... -
Page 7: Setting Of The End Stops
Connect the setting cable to the connecting cable of the GEIGER SoftZero-DG. When doing so, take care to ensure that the colours of the different leads do tally with each other. The assignment of the direction keys 1 and 2 to the direction of rotation is dependent on the installation situation of the motor. -
Page 8: Geiger Powertronic
• Anytime; this function can be activated during initial operation, as well as at a later date. Which resources are necessary? • GEIGER setting cable M56K144 (D), M56F150 (CH) or M56F151 (D with service terminal) Please note: • The stop positions are not affected when the GEIGER Powertronic is activated. -
Page 9: Obstacle Detection
These are estimated values so please check the correct functioning of the installation. When using a wind sensor the correct functioning of the retract command under wind load should be checked by the manufacturer of the sun protection before commissioning. www.geiger.de... -
Page 10: Technical Data
It is authorised for use in all EC member states and in Switzerland without any need of prior registration. The Declaration of Conformity concerning this product is available on our website: www.geiger-antriebstechnik.de. Gerhard Geiger GmbH & Co. KG | 100W0597 V000 0818... -
Page 11: Information For The Specialist Electrician
Waste disposal of electric and electronic equipment Electronic equipment or batteries cannot be discarded along with the normal household waste. Keep for more information on the recycling and disposal methods envisaged by the local regulations in your area. www.geiger.de... -
Page 12: What To Do If
They will be happy to assist you. Gerhard Geiger GmbH & Co. KG Schleifmühle 6 D-74321 Bietigheim-Bissingen Telephone: +49 (0) 7142 938-0 Telefax: +49 (0) 7142 938-230 E-Mail: info@geiger.de Internet: www.geiger.de Gerhard Geiger GmbH & Co. KG | 100W0597 V000 0818...
