4.4 Destination/Image File

Tap the Destination or Image File icon to select the Destination drive or Image File. The Destination or
Image File screen will show all drives connected to the Destination positions.
®
-Neo User's Manual
Logicube Falcon
st
the 1 segment, then continue capturing network traffic, and
create a new first segment file. If more than one repository is
selected, it will keep cycling through both repositories,
overwriting the oldest segment until the task is aborted.
OFF – This is the default setting. When this is set to OFF, once

the Falcon-NEO reaches the number of segments set and the last
repository is filled, it will stop the task.

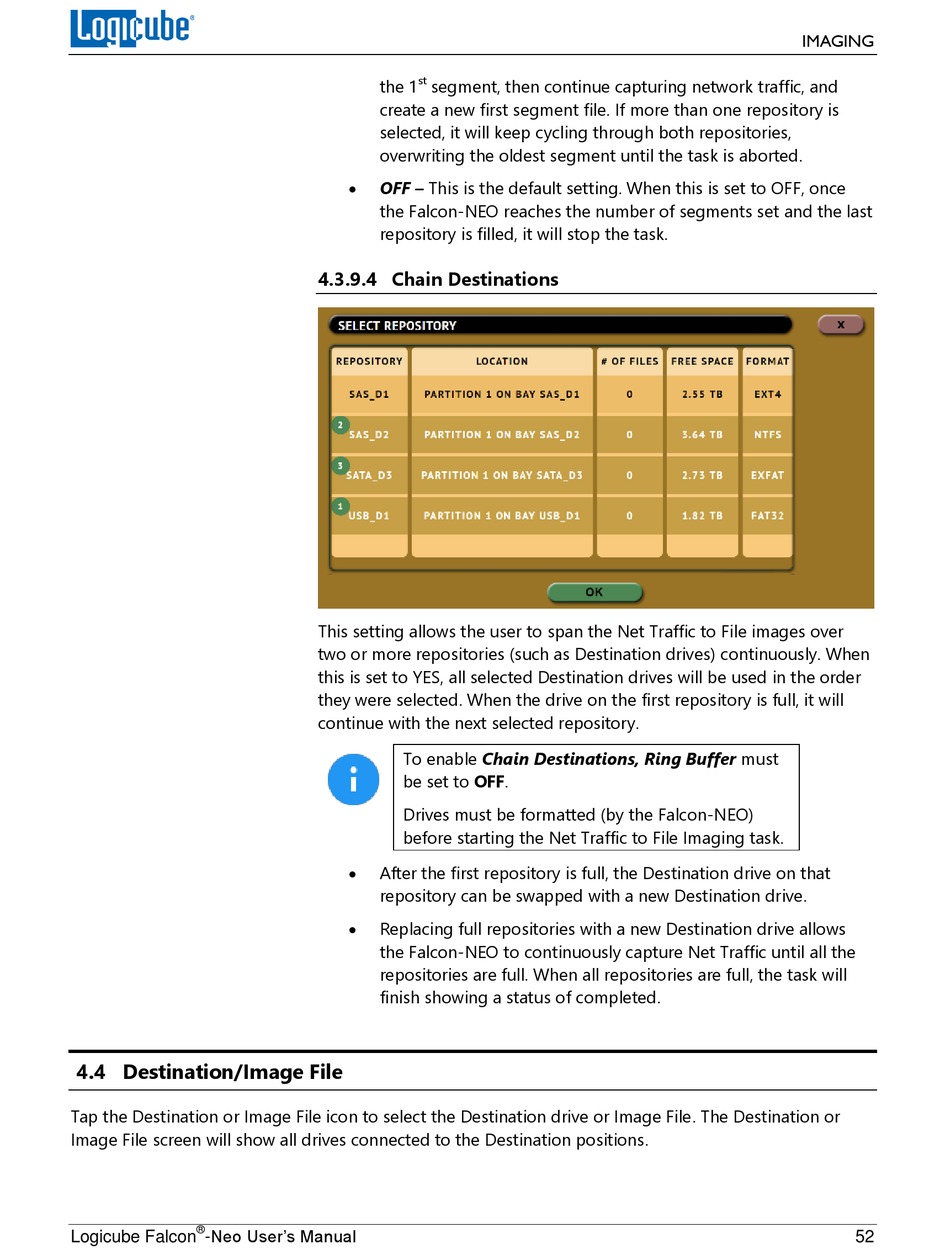

4.3.9.4 Chain Destinations

This setting allows the user to span the Net Traffic to File images over
two or more repositories (such as Destination drives) continuously. When
this is set to YES, all selected Destination drives will be used in the order
they were selected. When the drive on the first repository is full, it will
continue with the next selected repository.
To enable Chain Destinations, Ring Buffer must
be set to OFF.
Drives must be formatted (by the Falcon-NEO)
before starting the Net Traffic to File Imaging task.
After the first repository is full, the Destination drive on that

repository can be swapped with a new Destination drive.
Replacing full repositories with a new Destination drive allows

the Falcon-NEO to continuously capture Net Traffic until all the
repositories are full. When all repositories are full, the task will
finish showing a status of completed.
IMAGING
