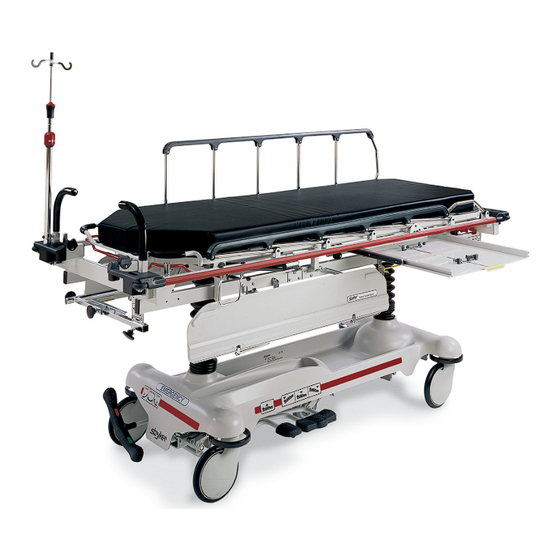

Stryker 1027 Maintenance Manual

Trauma stretcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ma i n t e n a n c e
Ma n u a l
Me d i c a l
T r a u maS t r e t c h e r
Mo d e l 1 0 2 7
I mp o r t a n t
I n f o r ma t i o n
F i l e i n y o u r
F o r p a r t so r t e c h n i c a l
m a i n t e n a n c e
a s s i s t a n c ec a l l
r e c o r d s
8 0 03 2 70 7 7 0( o p t i o n2 )

Advertisement

Table of Contents
loading

Related Manuals for Stryker 1027

Summary of Contents for Stryker 1027

  • Page 1 Ma i n t e n a n c e Ma n u a l Me d i c a l T r a u maS t r e t c h e r Mo d e l 1 0 2 7 I mp o r t a n t I n f o r ma t i o n F i l e i n y o u r...

  • Page 2: Table Of Contents

    Table of Contents Introduction Specifications ................Warning / Caution / Note Definition .
  • Page 3 Table of Contents Assembly Drawings and Parts Lists Caster Assembly ............... . SIde Control Brake Assembly .
  • Page 4 Table of Contents Optional Foot End Push Handles ............X−Ray Tray Assembly .

  • Page 5: Introduction

    Introduction INTRODUCTION This manual is designed to assist you with the maintenance of the Model 1027 Full−Length X−Ray Emergen- cy Room Stretcher. Read it thoroughly before using the equipment or beginning any maintenance on it. SPECIFICATIONS Maximum Weight Capacity 500 pounds Overall Bed Length/Width 83”...

  • Page 6: Summay Of Safety Precautions

    Safety Tips and Guidelines Before operating this stretcher, it is important to read and understand all information in this manual. Carefully read and strictly follow the warnings listed on this page. WARNING Always apply the caster brakes when a patient is getting on or off the stretcher. Push on the stretcher to en- sure the brakes are securely locked.

  • Page 7: Preventative Maintenance

    Preventative maintenance should be performed at a minimum of annually. A preventative maintenance pro- gram should be established for all Stryker Medical equipment. Preventative maintenance may need to be performed more frequently based on the usage level of the product.

  • Page 8: Cleaning

    If these types of products are used to clean Stryker patient handling equipment, measures must be taken to insure the stretchers are rinsed with clean water and thoroughly dried following cleaning. Failure to properly rinse and dry the stretchers will leave a cor- rosive residue on the surface of the stretcher, possibly causing premature corrosion of critical components.

  • Page 9: Service Information

    Service Information CASTER COVER INSTALLATION AND REMOVAL Double Prongs Looking through the larger of the two side cut−outs, align the cover with the axle nut or bolt head, as shown. Single Prong Push down on the opposite side of the cover until the single prong engages the caster horn.

  • Page 10: Release Pedal Adjustment

    Service Information RELEASE PEDAL ADJUSTMENT 1. Manually disengage the release pedal swivel (item J on page 40) from the release pedal assembly. 2. To increase the release rod engagement with the release valve, turn the release pedal swivel clockwise on the threaded release rod. 3.

  • Page 11: Side Control Brake Rod Removal

    Service Information SIDE CONTROL BRAKE ROD REMOVAL Required Tools: Hammer 7/32” Punch Needle Nose Pliers String or Bungee Cords Fifth Wheel Base 1. Pump the litter up to full height. 2. Lift the base hood and support it from the litter using string or bungee cords. 3.

  • Page 12: Foot End Release Pedal Replacement

    Service Information FOOT END RELEASE PEDAL REPLACEMENT Required Tools: Needle Nose Pliers 1. Apply the stretcher brakes. 2. Disconnect the release pedal return springs from the foot end release pedals. 3. Remove the rue ring cotters and the clevis pins connecting the foot end release pedals to the mounting bracket.

  • Page 13: Brake Ring Removal

    Service Information BRAKE RING REMOVAL Required Tools: 9/16” Socket w/Extension 3/8” Drive Ratchet Needle−Nose Pliers String or Bungee Cord 1. Pump the litter up to full height. 2. Lift the base hood and support it from the litter using string or bungee cords. 3.

  • Page 14: Big Wheel Removal

    Service Information BIG WHEEL REMOVAL Required Tools: Large Standard Screwdriver Small Standard Screwdriver String or Bungee Cords 1. Lift the base hood and separate the Velcro holding it to the base frame. Support the hood from the litter using bungee cords so it is out of the way. 2.

  • Page 15: Litter Top Removal

    Service Information LITTER TOP REMOVAL Required Tools: 1/2” Socket w/Extension 3/8” Drive Ratchet Standard Screwdriver 1. Using the foot pedal, pump up the litter top to full height. 2. Remove the stretcher mattress 3. Remove the round, black hole plugs from the jack supports at each end of the litter to expose the jack support tube truss head screws.

  • Page 16: Big Wheel Cam Gas Spring Dampener Removal

    Service Information BIG WHEEL CAM GAS SPRING DAMPENER REMOVAL Required Tools: 1/2” Socket 3/8” Drive Ratchet Needle−Nose Pliers 1. Remove the litter top from the stretcher (see page 14). 2. Lift the base hood off the base frame. 3. Remove the two clevis pins and rue ring cotters connecting the brake rods to the drive arm at the center of the base near the cam bracket assembly.

  • Page 17: Jack Descent Rate Adjustment

    Service Information JACK DESCENT RATE ADJUSTMENT Required Tools: Screwdriver Bungee Cords (or equivalent) Adjustment Procedure: 1. Pump the litter up to full height. 2. Lift the base hood, separating the hood from the base frame. Support the hood from the litter using bun- gee cords so it is out of the way.

  • Page 18: Head End Hydraulic Jack Removal

    Service Information HEAD END HYDRAULIC JACK REMOVAL Required Tools: 1/2” Socket w/Extension 3/8” Drive Ratchet 1. Remove the litter top from the stretcher (see page 14). 2. Using a 1/2” socket with extension and a 3/8” drive ratchet, remove the two hex head screws holding the jack base to the stretcher base frame.

  • Page 19: Pneumatic Fowler Adjustment

    Service Information FOOT END HYDRAULIC JACK REMOVAL (BIG WHEEL BASE WITH 3−SIDED CONTROLS) Required Tools: 1/2” Socket 3/8” Drive Ratchet Pliers 1. Remove the litter top from the stretcher (see page 14). 2. Lift the base hood off the base frame. 3.

  • Page 20: Transfer Board Counterbalance Adjustment

    Service Information TRANSFER BOARD COUNTERBALANCE ADJUSTMENT Required Tools: 7/16 Open End Wrench 1. Raise the transfer board to the full up position. 2. Unhook the extension spring at the eye bolt. 3. Using a 7/16 open end wrench, loosen the jam nut at the eye bolt. 4.

  • Page 21: Quick Reference Replacement Parts List

    Quick Reference Replacement Parts List PART NAME PART NUMBER Cam Replacement Kit, Big Wheel ........1040−700−003 Caster Cover Kit .

  • Page 22: Assembly Drawings And Parts Lists Fifth Wheel Base Assembly

    0853−006−110 Retractable 5th Wheel Base Assembly Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0023−305−000 Hex Hd. Cap Screw 0753−006−148 Cam Bearing (page Fifth Wheel Assembly Return to Table of Contents...
  • Page 23 0853−006−130 Fifth Wheel Assembly Return to Table of Contents...
  • Page 24 0853−006−130 Fifth Wheel Assembly Item Part No. Part Name Qty. 0003−083−000 Hex Hd. Cap Screw 0011−360−000 Washer 0016−035−000 Nylock Hex Nut 0023−288−000 Hex Washer Hd. Screw 0025−050−000 Rivet 0029−007−000 Dual Lock 0029−009−000 Dual Lock 0753−006−074 Torsion Spring 0753−006−075 Torsion Spring 0753−006−097 Drive Shaft Bearing 0753−006−106...
  • Page 25 Standard Brake Assembly (Fifth Wheel Base) Assembly part number 0853−003−205 (reference only) Return to Table of Contents...
  • Page 26 Standard Brake Assembly (Fifth Wheel Base) Typical Both Ends Typical Assembly Both Ends Item Part No. Part Name Qty. 0003−364−000 Hex Screw 0005−044−000 Step Bolt 0011−262−000 Washer 0013−018−000 Tooth Lock Washer 0016−035−000 Nylock Hex Nut 0016−049−000 Nylock Hex Nut 0023−288−000 Hex Washer Hd.

  • Page 27: Brake Rod Assembly

    Brake Rod Assembly Assembly part number 0853−003−201 (reference only) Item Part No. Part Name Qty. 0026−014−000 Slotted Spring Pin 0026−273−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0753−003−015 Brake Rod Nyliner 0853−003−004 Brake Rod Support (page Drive Link Assembly 0853−003−014 Brake Rod (page Drive Link Assembly 1210−201−335...
  • Page 28 0853−003−010 Drive Link Assembly Item Part No. Part Name Qty. 0753−003−098 Flat Hd. Semi−Tubular Rivet 0753−203−102 Brake Cam 0853−003−011 Brake Rod Drive Link 0853−003−061 Brake Cam Drive Link Return to Table of Contents...
  • Page 29 0853−006−135 Drive Link Assembly Item Part No. Part Name Qty. 0753−003−098 Semi−Tubular Rivet 0853−003−011 Brake Rod Drive Link 0853−006−022 5th Wheel Cam Drive Link 0853−006−047 5th Wheel Cam Drive Link Return to Table of Contents...

  • Page 30: Assembly Drawings And Parts Lists Caster Assembly

    0753−010−020 8” Caster Assembly Item Part No. Part Name Qty. 0715−002−025 Wheel 0003−099−000 Hex Hd. Cap Screw 0753−010−021 Caster Horn w/Bearing 0016−060−000 Centerlock Nut Return to Table of Contents...

  • Page 31: Side Control Brake Assembly

    Side Control Brake Assembly Assembly part number 0853−003−220 (reference only) Return to Table of Contents...
  • Page 32 Side Control Brake Assembly See Detail A Detail A Typical Both Ends Return to Table of Contents...
  • Page 33 Side Control Brake Assembly Typical Assembly Both Ends Item Part No. Part Name Qty. 0003−364−000 Slotted Screw 0005−044−000 Step Bolt 0011−262−000 Washer 0013−018−000 Tooth Lock Washer 0016−035−000 Nylock Hex Nut 0016−049−000 Nylock Hex Nut 0023−233−000 Hex Washer Head Screw 0026−340−000 Clevis Pin 0027−012−000 Hitch Pin...

  • Page 34: Brake Rod/Side Control Assembly

    Brake Rod / Side Control Assembly Assembly part number 0853−003−225 (reference only) Item Part No. Part Name Qty. 0026−014−000 Slotted Spring Pin 0026−273−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0753−003−015 Brake Rod Nyliner 0753−003−112 Side Control Link 0753−003−004 Brake Rod Support (page Drive Link Assembly 0853−003−014...

  • Page 35: Side Control Brake Sub−Assembly

    Side Control Brake Sub−Assembly Assembly part number 0853−003−210 (reference only) Item Part No. Part Name Qty. 0026−014−000 Slotted Spring Pin 0026−340−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0753−003−112 Side Control Link 0753−003−117 Rod End Link 0853−003−214 Side Control Shaft Support 0853−003−319 Side Control Brake Rod 1210−201−335...

  • Page 36: Side Control Assembly, Colored Components

    Standard Brake Assembly, Colored Components Assembly Part Number 0853−003−620 (reference only) Part Number Part Description Quantity 0753−003−128 Brake Ring Weldment (Black) 0753−010−020 8” Caster Assembly (Black) 0753−201−126 Pump Pedal (Black) 0853−005−154 Butterfly “V” Pedal (Black) 1061−201−127 Short Uni−Pedal (Black) Side Control Brake Assembly, Colored Components Assembly Part Number 0853−003−630 (reference only) Part Number Part Description...
  • Page 37 Dual Sided Hydraulics Assembly (Fifth Wheel Base) Assembly part number 0853−005−525 Return to Table of Contents...
  • Page 38 Dual Sided Hydraulics Assembly (Fifth Wheel Base) See Detail A Detail A Return to Table of Contents...
  • Page 39 Dual Sided Hydraulics Assembly (Fifth Wheel Base) Insert Head End Release Rod into Release Valve Assembly as shown Insert Foot End Release Rod into Release Valve Assembly as shown Item Part No. Part Name Qty. 0011−023−000 Washer 0014−071−000 Washer 0023−288−000 Hex Washer Hd.

  • Page 40: End Control Hydraulics Assembly, Colored Components

    Standard Hydraulics Assembly, Colored Components Assembly Part Number 0853−005−650 (reference only) Part Number Part Description Quantity 0753−201−126 Pump Pedal (Black) 0853−005−154 Butterfly “V” Pedal (Black) 1061−201−127 Short Uni−Pedal (Black) End Control Hydraulics Assembly, Colored Components Assembly Part Number 0853−005−660 (reference only) Part Number Part Description Quantity...

  • Page 41: Lowering Pedal Assembly

    0853−004−251 Lowering Pedal Assembly Item Part No. Part Name Qty. 0025−133−000 Rivet 0753−004−029 Release Pedal Standoff 0853−004−004 Release Pedal Weldment 0853−004−320 Release Pedal Support 1069−004−320 Release Pedal Support Return to Table of Contents...

  • Page 42: Head End Pump Pedal Assembly

    0853−005−285 Head End Pump Pedal Assembly Item Part No. Part Name Qty. 0026−343−000 Groove Pin 0715−001−140 Vinyl Tube 0853−005−180 Head End Pump Pedal Weldment Return to Table of Contents...

  • Page 43: Non−Constant Descent Jack

    Non−Constant Descent Jack Assembly part number 0853−002−180 (reference only) Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw (page Jack Assembly, Non−Constant Descent 0853−010−007 Reservoir Clamp Return to Table of Contents...

  • Page 44: Non−Constant Jack Assembly

    0753−002−170 Non−Constant Jack Assembly Item Part No. Part Name Qty. 0045−273−000 O−Ring 0045−274−000 O−Ring 0048−190−000 U−Cup Seal 0753−002−017 Jack Cap 0753−002−075 Jack Base Assembly, Non−Constant Descent 0753−002−104 Actuator Rod Assembly 0753−002−106 Actuator Cylinder Assembly 0753−102−129 Reservoir Tube 0753−202−115 Jack Assembly Label Return to Table of Contents...

  • Page 45: Constant Descent Jack

    0853−002−025 Constant Descent Jack Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0753−002−101 Constant Descent Jack Ass’y 0853−010−007 Reservoir Clamp Return to Table of Contents...
  • Page 46 Big Wheel End Control Base Assembly Assembly part number 1040−015−105 (reference only) HEAD END Return to Table of Contents...
  • Page 47 Big Wheel End Control Base Assembly DETAIL A HEAD END See Detail A Return to Table of Contents...
  • Page 48 Big Wheel End Control Base Assembly Item Part No. Part Name Qty. 0021−166−000 Set Screw 0023−150−000 Hex Washer Hd. Screw 0023−288−000 Hex Washer Hd. Screw 0026−273−000 Clevis Pin 0025−330−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0029−007−000 Dual Lock 0029−009−000 Dual Lock 0042−020−000 Collar 0081−330−000...
  • Page 49 Base Assembly w/Standard Brakes (Big Wheel Base) Assembly part number 1040−003−405 (reference only) Return to Table of Contents...
  • Page 50 Base Assembly w/Standard Brakes (Big Wheel Base) Item Part No. Part Name Qty. 0005−039−000 Step Bolt 0011−262−000 Washer 0016−035−000 Nylock Hex Nut 0016−049−000 Nylock Hex Nut 0023−025−000 Hex Washer Hd. Screw 0027−012−000 Hitch Pin 0027−022−000 Rue Ring Cotter Pin 0028−037−000 External Retaining Ring 0038−439−000 Extension Spring...

  • Page 51: Drive Link Assembly

    1040−003−185 Drive Link Assembly Item Part No. Part Name Qty. 0753−003−098 Semi−Tubular Rivet 0753−003−102 Brake Cam 1040−003−174 Brake Rod Drive Link 1040−003−076 Cam Drive Link Return to Table of Contents...

  • Page 52: Brake Rod Assembly

    1040−003−191 Brake Rod Assembly (Big Wheel Base) Item Part No. Part Name Qty. 0026−067−000 Slotted Spring Pin 1040−003−113 Brake Rod 0753−003−099 Butterfly “V” Pedal Return to Table of Contents...
  • Page 53 Base with Dual Side Hydraulics (Big Wheel Base) Assembly part number 1040−005−400 (reference only) Insert pump ram into keyhole slot on both ends. Lower pump connecting rod weldment onto pump ram as shown. Insert item P to retain pump connecting rod. 0753−002−025 Constant Descent Jacks 0753−002−080 Variable Descent Jacks Return to Table of Contents...
  • Page 54 Base with Dual Side Hydraulics (Big Wheel Base) Insert spring hook thru hole in pump connecting rod weldment Attach other hook to return spring hook as shown. Insert spring hook into hook on release pedal assembly. Insert other hook into pump connecting rod weldment as shown.
  • Page 55 Base with Dual Side Hydraulics (Big Wheel Base) Insert head end release rod into release valve assembly as shown DETAIL A SEE DETAIL B Insert foot end release rod into release valve assembly as shown DETAIL B SEE DETAIL A Item Part No.

  • Page 56: Cam Bracket Assembly

    Cam Bracket Assembly Assembly part number 1040−006−201 (reference only) Return to Table of Contents...
  • Page 57 Cam Bracket Assembly Item Part No. Part Name Qty. 0014−004−000 Washer 0014−063−000 Washer 0023−262−000 Clevis Pin 0026−330−000 Clevis Pin 0026−341−000 Clevis Pin 0026−349−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0027−025−000 Rue Ring Cotter 0081−400−000 Needle Bearing 0081−634−000 Needle Bearing 1040−006−209 Dampener 1040−006−141 Cam Pivot...

  • Page 58: Big Wheel Carriage Assembly

    Big Wheel Carriage Assembly Assembly part number 1040−015−101 (reference only) Item Part No. Part Name Qty. 0014−004−000 Washer 0026−341−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0028−330−000 Spiral Retaining Ring 0081−011−000 Needle Bearing 1040−015−006 Carriage Return Spring 1040−015−030 Cover w/Counterweight 1040−015−038 Washer 1040−015−053 Carriage Spring Retainer...
  • Page 59 Big Wheel 4−Sided Control Base Assembly part number 1040−025−105 (reference only) HEAD END Return to Table of Contents...
  • Page 60 Big Wheel 4−Sided Control Base DETAIL A HEAD END See Detail A Return to Table of Contents...
  • Page 61 Big Wheel 4−Sided Control Base Item Part No. Part Name Qty. 0021−166−000 Set Screw 0023−150−000 Hex Washer Hd. Screw 0023−288−000 Hex Washer Hd. Screw 0026−273−000 Clevis Pin 0026−330−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0029−007−000 Dual Lock 0029−009−000 Dual Lock 0042−020−000 Collar 0081−330−000...

  • Page 62: Side Control Big Wheel Carriage Assembly

    Side Control Big Wheel Carriage Assembly Assembly part number 1040−025−101 (reference only) Return to Table of Contents...
  • Page 63 Side Control Big Wheel Carriage Assembly Item Part No. Part Name Qty. 0011−148−000 Washer 0011−525−000 Washer 0014−004−000 Washer 0026−341−000 Clevis Pin 0026−342−000 Groove Pin 0027−020−000 Rue Ring Cotter 0028−166−000 External Retaining Ring 0028−330−000 External Retaining Ring 0081−011−000 Needle Bearing 0081−175−000 Thrust Bearing 0753−003−099 Butterfly “V”...

  • Page 64: Side Control Big Wheel Linkage Assembly

    1040−025−010 Side Control Big Wheel Linkage Ass’y Item Part No. Part Name Qty. 0753−003−098 Flat Hd. Semi−Tubular Rivet 0753−003−117 Rod End Link 1040−025−011 Main Link 1040−025−013 Toggle Pivot Plate 1040−025−016 Main Link Cover 1040−025−020 Yoke Weldment 1040−025−018 Toggle Pivot Spacer 1040−025−027 Link Spacer Return to Table of Contents...
  • Page 65 Base Labeling Assembly − Big Wheel Base Assembly part number 1040−015−400 (reference only) Department Label page 67 Specification Label FOOT END HEAD END Item Part No. Part Name Qty. 1040−010−134 Bellows 1040−015−404 Base Hood 0946−201−060 Stryker Logo Label Return to Table of Contents...

  • Page 66: Base Labeling Assembly, Standard Brakes

    Base Labeling Assembly, Standard Brakes Assembly part number 0853−010−062 (reference only) Department Label page 67 Specification Label (Serial Number Location) FOOT END HEAD END Item Part No. Part Name Qty. 0853−001−040 Base Hood 1040−010−134 Bellows 0946−201−060 Stryker Logo Label Return to Table of Contents...

  • Page 67: Base Labeling Assembly, 4−Sided Brakes

    Department Label page 67 Specification Label (Serial Number Location) FOOT END HEAD END Item Part No. Part Name Qty. 0853−001−041 Base Hood 1040−010−134 Bellows 0946−201−060 Stryker Logo Label 0853−010−018 Brake/Steer Label, Right 0853−010−019 Brake/Steer Label, Left Return to Table of Contents...

  • Page 68: Base Labeling Assembly, Colored Components

    Base Labeling, Colored Components Assembly Part Number 0853−010−062 (reference only) Item D Item E Item F Item G Label Color P/N Brake/Steer, Lift/Lower, Left Brake/Steer, Lift/Lower, Right Color Foot End Head End 0853−010−120 0753−010−051 0853−010−055 0753−010−017 0853−010−054 PURPLE 0853−010−121 0753−010−151 0853−010−155 0753−010−170 0853−010−154...

  • Page 69: Litter Assembly

    Litter Assembly Assembly part number 1020−030−010 (reference only) HEAD END Return to Table of Contents...

  • Page 70: Litter Support Assembly

    Litter Assembly Fowler HEAD END X−Ray Tray Return to Table of Contents...
  • Page 71 Litter Assembly Detail of Siderail Latch HEAD END Return to Table of Contents...
  • Page 72 Litter Assembly HEAD END Return to Table of Contents...
  • Page 73 Litter Assembly Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0003−035−000 Hex Hd. Cap Screw (page Siderail Ass’y, Left 0003−047−000 Hex Hd. Cap Screw 1010−026−069 Lock Support 0003−050−000 Hex Hd. Cap Screw 1010−026−081 Lock Housing, Left 0003−054−000 Hex Hd.

  • Page 74: Siderail Assembly

    1010−026−017 & 1010−026−019 Siderail, Fold−to−Head (1010−026−019 Left Siderail Shown) Item Part No. Part Name Qty. 1010−026−015 Top Rail 1010−026−083 Upright 1010−026−084 Upright, Bent 1010−026−082 Sleeve Bearing 0025−106−000 Semi−Tubular Rivet 1010−026−010 Round Hole Plug 1010−026−085 Upright, Latch 1010−026−012 Bent Spindle Rest Return to Table of Contents...
  • Page 75 1020−024−002 Foot End Litter Support Assembly Item Part No. Part Name Qty. 0003−040−000 Hex Hd. Cap Screw 0016−028−000 Hex Nut 0017−003−000 Cap Nut 0025−053−000 Semi−Tubular Rivet 0753−010−029 Support Tube 0938−001−292 Support Tube Roller 0938−001−401 Collar 1010−032−064 Carrier Tube 1020−001−048 Foot End Support Tube Return to Table of Contents...
  • Page 76 1020−024−003 Head End Litter Support Assembly Item Part No. Part Name Qty. 0753−010−030 Support Tube 0938−001−401 Collar 1020−024−004 Jack Support, Left 1020−024−005 Jack Support, Right Return to Table of Contents...
  • Page 77 Manual Fowler to Litter Assembly Assembly part number 1020−032−059 (reference only) Hex Hd. Cap Screw 0003−078−000 Nylock Nut 0016−029−000 HEAD END Hex Hd. Cap Screw 0003−078−000 Item Part No. Part Name Qty. 1020−032−054 Pivot Leg Assembly 0003−078−000 Hex Hd. Cap Screw 1020−032−056 Left Bracket Weldment 1020−032−055...

  • Page 78: Manual Fowler Assembly

    Manual Fowler Assembly Assembly part number 1020−032−058 (reference only) Item Part No. Part Name Qty. 0037−065−000 Hole Plug 1020−032−057 Fowler Weldment 1020−031−039 Fowler Skin 0025−099−000 Pop Rivet 1010−032−066 Hole Plug 0004−149−000 But. Hd. Cap Screw 0016−003−000 Self−Locking Nut 0025−069−000 Pop Rivet 1020−023−012 Tray Hinge, Left 1020−023−013...
  • Page 79 Pneumatic Fowler to Litter Assembly Assembly part number 1020−031−011 (reference only) HEAD END Item Part No. Part Name Qty. 1010−031−078 Gas Cylinder 1020−031−025 Cylinder Mount 0016−035−000 Nylock Hex Nut 0014−029−000 Flat Washer 0003−078−000 Hex Hd. Cap Screw 0016−028−000 Nylock Hex Nut 1020−031−038 Fowler Rest Bumper 1020−031−017...

  • Page 80: Pneumatic Fowler Assembly

    Pneumatic Fowler Assembly Assembly part number 1020−031−010 (reference only) Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0037−065−000 Hole Plug 0028−008−000 Retaining Ring 1020−031−020 Handle Assembly 0015−037−000 Jam Nut 1020−031−015 Fowler Weldment 0021−104−000 Set Screw 1020−031−039 Fowler Skin 0021−119−000 Set Screw...

  • Page 81: Litter Covers

    Head End Litter Covers − No I.V. & No Push Handles Assembly part number 1020−151−001 Item Part No. Part Name Qty. 0037−059−000 Hole Plug 1010−001−013 Cover, Head, Left, Hole 1010−001−014 Cover, Head, Right, Slot 0037−074−000 Hole Plug Head End Litter Covers − With I.V. & No Push Handles Assembly part number 1020−151−004 Item Part No.

  • Page 82: Litter Covers

    Head End Litter Covers − With Push Handles & No I.V. Assembly part number 1020−151−003 Item Part No. Part Name Qty. 0037−059−000 Hole Plug 1010−001−015 Cover, Head, Left, Hole/Hole 1010−001−016 Cover, Head, Left, Hole/Slot 1010−001−035 Handle Rest 0025−079−000 Pop Rivet Head End Litter Covers −...

  • Page 83: Transfer System Assembly

    Transfer System Assembly Return to Table of Contents...
  • Page 84 Transfer System Assembly Item Part No. Part Name Qty. 0002−100−000 Pan Hd. Machine Screw 0025−079−000 Pop Rivet 0014−021−000 Washer 0016−003−000 Fiberlock Hex Nut 0028−093−000 Retaining Ring 0038−252−000 Extension Spring (page Board Support Assembly 1020−001−029 Bearing (page Transfer Board Ass’y, Left (page Transfer Board Ass’y, Right 1020−024−121...
  • Page 85 1020−024−010 Transfer Board Assembly, Left HEAD END Item Part No. Part Name Qty. 1020−032−100 Transfer Board 0721−024−046 Label 1020−024−038 Connecting Link Assembly 1020−024−012 Pivot Arm Assembly, Left 0001−025−000 Flat Hd. Machine Screw 0011−224−000 Nylon Flat Washer 0016−028−000 Nylock Hex Nut 0004−156−000 Button Hd.
  • Page 86 1020−024−011 Transfer Board Assembly, Right HEAD END Item Part No. Part Name Qty. 1020−032−100 Transfer Board Assembly 0721−024−046 Label 1020−024−037 Connecting Link Assembly 1020−024−013 Pivot Arm Ass’y Head, Rt. 0001−025−000 Flat Hd. Machine Screw 0011−224−000 Nylon Flat Washer 0004−156−000 Button Hd. Cap Screw 0016−028−000 Nylock Hex Nut 1020−024−033...

  • Page 87: Arm Board Support Assembly

    1010−024−030 Arm Board Support Assembly Item Part No. Part Name Qty. 1010−024−015 Support Block 1010−024−016 Support Arm 1010−024−014 Warning Label 0038−263−000 Spring 0008−017−000 Shoulder Bolt 1010−026−046 Ball Knob Return to Table of Contents...

  • Page 88: Optional Head End Push Handles

    1020−151−000 Optional Head End Push Handles Item Part No. Part Name Qty. 0004−009−000 Soc. Hd. Cap Screw 0004−097−000 But. Hd. Cap Screw 0004−161−000 But. Hd. Cap Screw 0026−011−000 Spring Pin 0016−028−000 Hex Nut 1010−054−070 Socket Assembly, Left 1010−054−071 Socket Assembly, Right (page Handle Assembly Return to Table of Contents...

  • Page 89: Push Handle Assembly

    1211−351−010 Push Handle Assembly Item Part No. Part Name Qty. 1010−354−024 Stop Link 1211−151−018 Sleeve Assembly 0026−118−000 Roll Pin Return to Table of Contents...

  • Page 90: Optional Foot End Push Handles

    1020−051−000 Optional Foot End Push Handles Item Part No. Part Name Qty. 1010−051−019 Guard 1000−058−019 Push Handle 1020−051−015 Handle Socket 1020−051−017 Handle Socket 1010−051−018 Rubber Bumper 0025−079−000 Pop Rivet 0026−010−000 Roll Pin 0016−028−000 Nylock Nut 0026−011−000 Roll Pin 0003−078−000 Hex Hd. Bolt 1010−354−024 Stop Link Return to Table of Contents...

  • Page 91: X−Ray Tray Assembly

    1020−022−010 X−Ray Tray Assembly, Right Side Load Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0004−026−000 Soc. Hd. Cap Screw 1010−022−036 Retention Spacer, Lt. 0004−171−000 But. Hd. Cap Screw 1010−032−066 Hole Plug 0004−175−000 But. Hd. Cap Screw 1020−022−007 Brake Handle 0004−265−000...

  • Page 92: X−Ray Tray Assembly

    1020−021−010 X−Ray Tray Assembly, Left Side Load Return to Table of Contents...
  • Page 93 1020−021−010 X−Ray Tray Assembly, Left Side Load Item Part No. Part Name Qty. Item Part No. Part Name Qty. 0004−026−000 Soc. Hd. Cap Screw 1010−022−036 Retention Spacer, Lt. 0004−171−000 But. Hd. Cap Screw 1010−032−066 Hole Plug 0004−175−000 But. Hd. Cap Screw 1020−021−007 Brake Handle 0004−265−000...

  • Page 94: X−Ray Grid Holder Assembly

    1020−027−000 X−Ray Grid Holder Assembly Item Part No. Part Name Qty. 1020−027−021 Guide Weldment, Rt. 1020−027−022 Guide Weldment, Lt. 1020−027−011 Slider Weldment 0011−271−000 Fender Washer 0004−131−000 Button Hd. Cap Screw 1020−027−024 ”L” Bracket Return to Table of Contents...
  • Page 95 1020−020−000 Optional X−Ray Centering Guide BOTTOM VIEW Item Part No. Part Name Qty. 0001−022−000 Flat Hd. Mach. Screw 0001−085−000 Flat Hd. Mach. Screw 0004−127−000 Soc. Hd. Cap Screw 0004−169−000 But. Hd. Cap Screw 0004−170−000 But. Hd. Cap Screw 0011−146−000 Nylon Washer 0011−132−000 Nylon Washer 0024−051−000...

  • Page 96: Fowler X−Ray Cassette Assembly

    1020−23−000 Fowler X−Ray Cassette Assembly Item Part No. Part Name Qty. 1020−023−011 Tray 1020−023−016 Post Housing 1020−023−025 Actuating Rod 0926−023−064 Post 1010−023−037 Rod Guide 1020−023−021 Knob 1010−023−028 Tray Angle 0926−023−070 Block Assembly 0926−023−069 Washer 0014−003−000 Washer 0038−122−000 Compression Spring 1020−023−026 Spacer 1020−023−019 Tray Hinge, Right...

  • Page 97: Removable I.v. Pole Assembly

    0390−025−000 Standard, Removable I.V. Pole Assembly Item Part No. Part Name Qty. 0024−023−000 Plastic Knob 0390−003−053 Double I.V. Ass’y 0393−003−043 Tube Assembly 0004−496−000 Soc. Hd. Cap Screw Return to Table of Contents...
  • Page 98 1010−022−100 Optional Tethered I.V. Assembly Item Part No. Part Name Qty. 1010−022−025 Trough Assembly (Page Tethered I.V. Assembly 0025−092−000 Pop Rivet 0034−022−000 Loop Clamp Return to Table of Contents...

  • Page 99: Tethered I.v. Pole Assembly

    1001−087−018 Tethered I.V. Pole Assembly Item Part No. Part Name Qty. 0004−495−000 Soc. Hd. Cap Screw 0021−016−000 Set Screw 0741−047−014 Retainer 0938−001−305 Pole Socket Assembly 0938−001−308 Pole Assembly 1211−117−016 Plastic Knob 1211−117−020 Cable Assembly Return to Table of Contents...
  • Page 100 1010−080−000 2−Stage I.V. Ass’y − Foot End, Right 1010−081−000 2−Stage I.V. Ass’y − Head End, Left Item Part No. Part Name Qty. 0003−050−000 But. Hd. Cap Screw 0004−097−000 But. Hd. Cap Screw 0004−163−000 But. Hd. Cap Screw 0004−199−000 But. Hd. Cap Screw 0016−011−000 Flexlock Nut 0016−028−000...

  • Page 101: Optional 2−Stage I.v. Pole Assembly

    1211−210−010 Optional 2−Stage I.V. Pole Assembly Item Part No. Part Name Qty. 0008−031−000 Soc. Hd. Cap Screw 0052−017−000 Washer 0926−400−162 Spacer 1211−210−029 2nd Stage Assembly 1001−359−013 Dampener 1001−159−028 Base Tube 1010−059−016 I.V. Hook (page 102) I.V. Pole Latch 1001−359−112 Pivot Return to Table of Contents...

  • Page 102: I.v. Pole Latch Assembly

    1211−210−026 I.V. Pole Latch Assembly Item Part No. Part Name Qty. 0028−167−000 Retaining Ring 0031−004−000 Steel Ball 0038−392−000 Crest−to−Crest Spring 1211−091−034 Release Label 1211−110−018 I.V. Latch Seal 1211−110−020 Washer 1211−110−021 I.V. Latch Locking Pin 1211−110−022 I.V. Latch Guide 1211−110−024 I.V. Latch O.D. Housing 1211−110−035 Washer 1211−110−036...
  • Page 103 1020−062−000 3−Stage I.V. Ass’y − Foot End, Right 1020−061−000 3−Stage I.V. Ass’y − Head End, Left Item Part No. Part Name Qty. 0003−050−000 But. Hd. Cap Screw 0004−097−000 But. Hd. Cap Screw 0004−163−000 But. Hd. Cap Screw 0004−091−000 But. Hd. Cap Screw 0016−020−000 Flexlock Nut 0016−028−000...

  • Page 104: Optional 3−Stage I.v. Pole Assembly

    1211−211−010 Optional 3−Stage I.V. Pole Assembly Item Part No. Part Name Qty. 0007−004−000 Truss Hd. Machine Screw 0026−076−000 Roll Pin 0052−017−000 Spacer 1211−210−031 2nd Stage Assembly 0926−400−162 Spacer (page 105) 3rd Stage Assembly 1001−161−023 Base Tube 1010−059−016 I.V. Hook 1010−061−014 Collar (page 102)

  • Page 105: Stage I.v. Pole 3Rd Stage Assembly

    3−Stage I.V. Pole 3rd Stage Assembly Assembly part number 1211−110−032 (reference only) NOTE Item F, part number 1010−061−018 is left hand thread. When removing it, turn clockwise to loosen it. Item Part No. Part Name Qty. 0031−021−000 Ball 0038−303−000 Compression Spring 1010−061−013 Ball Retainer 1010−061−016...
  • Page 106 1020−130−000 Upright Oxygen Bottle Holder Item Part No. Part Name Qty. 0027−030−000 Hair Pin Cotter 1020−030−111 Upright Bottle Holder 1020−030−117 Specification Label Return to Table of Contents...

  • Page 107: Defibrillator Tray Assembly

    0785−045−200 Optional Defibrillator Tray Assembly Strap Securing Detail Item Part No. Part Name Qty. 0002−044−000 Round Hd. Machine Screw 0025−055−000 Rivet 0029−008−000 Dual Lock 0029−010−000 Dual Lock 0785−045−201 Defib Tray Label 0785−045−402 Push/Pull Label 0785−045−403 Weight Capacity Label 0785−045−204 Tray Support 0785−045−207 Tray 0785−045−208...
  • Page 108 0785−045−400 Defib Tray/Foot Extender/Foot Board Item Part No. Part Name Qty. 0004−215−000 But Hd. Cap Screw 0008−049−000 Soc. Hd. Cap Screw 0014−020−000 Washer 0014−120−000 Washer 0016−028−000 Hex Nut 0037−052−000 Rubber Bumper 0038−133−000 Compression Spring 0052−017−000 Spacer 0785−045−402 Push/Pull Label 0785−045−403 Weight Capacity Label 0785−045−401 Foot Extender/Defib Tray Label...

  • Page 109: Stirrup Assembly

    1020−55−000 Heel Stirrup and Support Assembly Assembly part number 1020−055−010 (reference only) Item Part No. Part Name Qty. (page 110) Stirrup Support Ass’y, Rt. (page 110) Stirrup Support Ass’y, Lt. (page 111) Stirrup Assembly 0003−078−000 Hex Hd. Cap Screw 1020−055−015 Backer Assembly 0016−028−000 Nylock Hex Nut...
  • Page 110 1010−055−015 (Rt.) & 1010−055−025 (Lt.) Stirrup Support (Right shown) Item Part No. Part Name Qty. 1010−055−016 Right Support Tube Ass’y 1010−055−026 Left Support Tube Ass’y 1010−055−020 Mounting Bracket 0650−002−032 Lock Screw Assembly 0966−051−019 Wedge Lock, Modified 0038−171−000 Compression Spring 0026−007−000 Roll Pin 0014−040−000 Nylon Flat Washer...

  • Page 111: Stirrup Assembly

    1010−055−029 Heel Stirrup Assembly Item Part No. Part Name Qty. 0390−020−013 Stirrup 0390−020−009 Stirrup Holder Assembly 1010−055−030 Extension Tube Assembly 0024−011−000 Knob 0026−043−000 Roll Pin 0022−008−000 Drive Screw Return to Table of Contents...

  • Page 112: C−Spine Cassette Holder Assembly

    1020−070−100 C−Spine Cassette Holder Assembly Assembly part number 1020−070−001 (reference only) Item Part No. Part Name Qty. 1010−070−025 I.V. Adaptor 1020−070−018 Specification Label 0011−003−000 Flat Washer 0004−091−000 Soc. Hd. Cap Screw (page 113) Support Pole Ass’y (page 114) Storage Bracket Ass’y 0037−056−000 Washer 0003−047−000...
  • Page 113 1010−070−010 C−Spine Support Pole Assembly View A−A Item Part No. Part Name Qty. 1010−070−033 Support Tube Cap 0026−006−000 Roll Pin 1010−070−034 Support Arm Weldment 1010−070−042 Cassette Holder Weldment 1010−070−050 Adjustment Tube Weldment 1010−070−030 Base Tube Weldment 1010−070−045 Knob 0025−055−000 Pop Rivet 1010−070−044 Pivot Pin 0026−005−000...
  • Page 114 1020−070−019 C−Spine Storage Bracket Assembly Item Part No. Part Name Qty. 1020−070−020 Storage Bracket Weldment 1010−070−045 Knob 1010−070−023 Storage Label Return to Table of Contents...
  • Page 115 1040−010−090 Optional O@ Bottle Retainer Assembly Base Hood Item Part No. Part Name Qty. 1040−010−091 Bottle Retainer 1040−010−092 Scrulok Fastener Return to Table of Contents...

  • Page 116: Foot Board

    0785−045−500 Foot Board/Chartholder Assembly BACK FRONT Item Part No. Part Name Qty. 0785−045−402 Push/Pull Label 0785−045−501 Foot Board Label 0785−045−511 Chartholder 0785−045−512 Foot Board Back 0785−045−513 Foot Board Front 0785−045−514 Small Standoff 0785−045−515 Large Standoff 0946−029−010 Support Weldment Return to Table of Contents...

  • Page 117: Serving Tray Assembly

    0785−045−700 Optional Serving Tray Assembly Item Part No. Part Name Qty. 0785−045−701 Serving Tray Label 0785−045−704 Flat Hd. Torx Screw 0785−045−705 Serving Tray Top 0785−045−706 Serving Tray Pinion 0785−045−710 Serving Tray Slider 0785−045−715 Serving Tray Cover 0785−045−403 Weight Capacity Label Return to Table of Contents...

  • Page 118: Foot Board/Serving Tray Holder

    0785−045−800 Optional Foot Board/Serving Tray Holder Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−045−402 Push/Pull Label 0785−045−801 Serving Tray Holder Label 0785−045−805 Foot Board 0785−045−806 Front Plate 0785−045−810 Foot Board Support Weldment 0946−001−155 Bumper 0025−133−000 Dome Head Pop Rivet Return to Table of Contents...

  • Page 119: Mattresses And Siderail Pads

    Mattresses and Siderail Pads Mattress, 2” Thick x 24” Wide, Standard ......part # 1059−226−140 Mattress, 3”...

  • Page 120: Mattresses And Siderail Pads

    Mattresses and Siderail Pads Mattress, 26” Wide ..........part # 1059−426−010 Return to Table of Contents...

  • Page 121: Service Contract Coverage

    Stryker’s obligation under this warranty is expressly limited to supplying replacement parts and labor for, or replacing, at its option, any product which is, in the sole discretion of Stryker, found to be defective. If re- quested by Stryker, products or parts for which a warranty claim is made shall be returned prepaid to Stryker’s factory.

  • Page 122: Return Authorization

    Stryker will perform all service during regular business hours (9−5) * Replacement parts and labor for products under PM contract will be discounted. ** Does not include any disposable items, I.V. poles (except for Stryker HD permanent poles), mattresses, or damage re- sulting from abuse.
  • Page 123 European Representative Stryker EMEA RA/QA Director Stryker France ZAC Satolas Green Pusignan Av. De Satolas Green 69881 MEYZIEU Cedex France 3800 E. Centre Ave., Portage, MI 49002 (800) 327−0770 www.stryker.com JH 9/06 1027−009−002 REV A...

Table of Contents
