2.3

Assembling the unit

To install the unit on a wall, drill 6 holes to attach the fixing
plate to the wall as indicated on the drilling template. The
appliance weighs more on the right, so make sure to
secure it properly on this side. The holes must have an 8
mm diameter to accommodate the 6 supplied plugs.
A thorough examination of the characteristics and
consistency of the wall must always be carried out to
determine the number of fixing points to be made and
to choose specific plugs in particular conditions. In the
case of installation on a plasterboard or on walls with low
density, place a bracket, if necessary on the outside, that
can support the appliance safely.

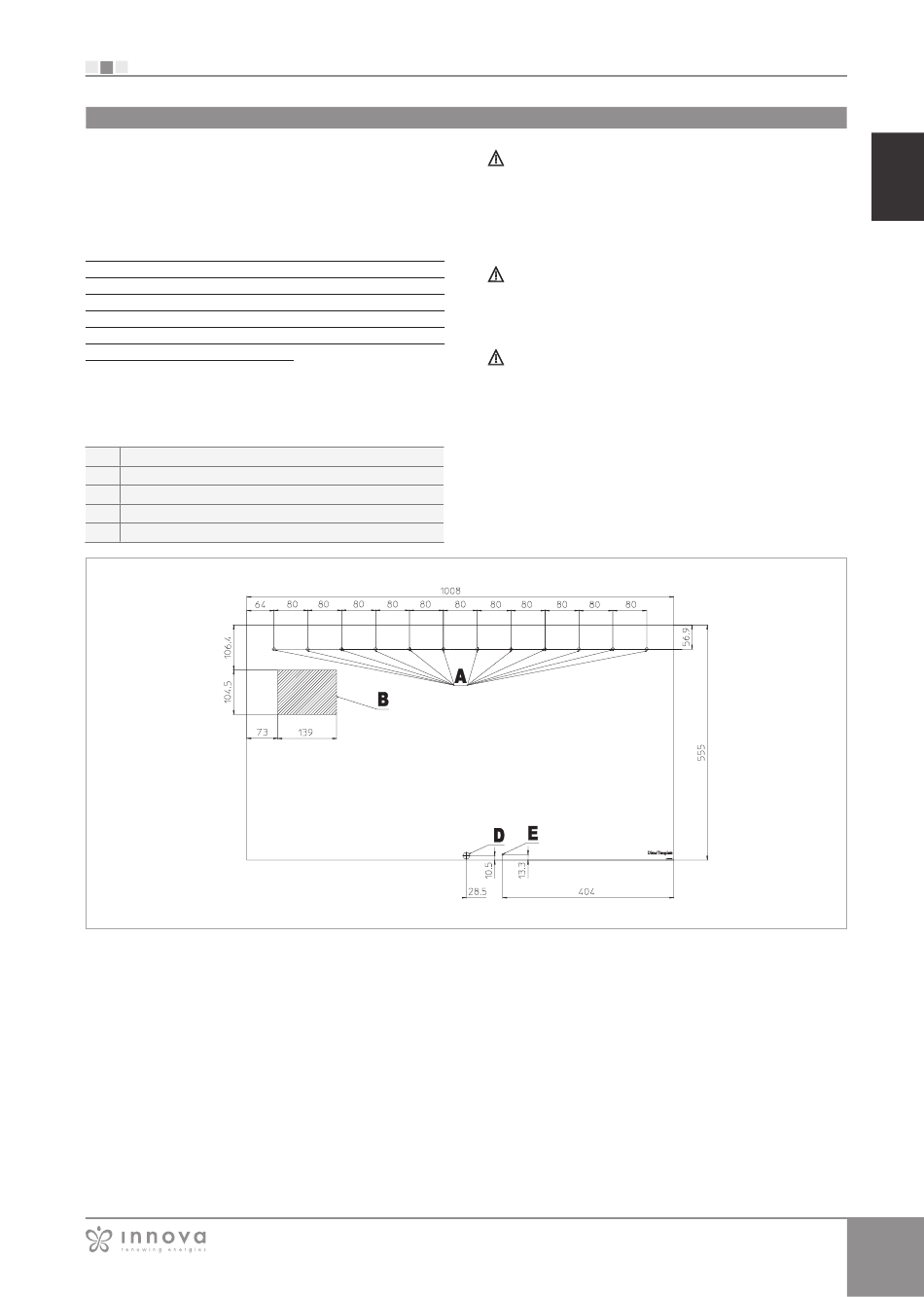

A
Holes for M8 plugs
B Electrical connection area
C
D
E
Anti-lifting bracket hole
The manufacturer cannot be held responsible for
any underestimation of the structural consistency
of the anchoring carried out by the installer. We,
therefore, encourage you to pay the utmost attention
to this operation as, if performed badly, it could cause
serious damage to people and objects.
Drill a hole in the position indicated on the template for
those heat-pump appliances without a condensation
drain built in the wall to allow for draining of
condensation.
A hole is also indicated on the template to secure the
appliance on the wall with an anti-lifting bracket, which
is already on the appliance.
