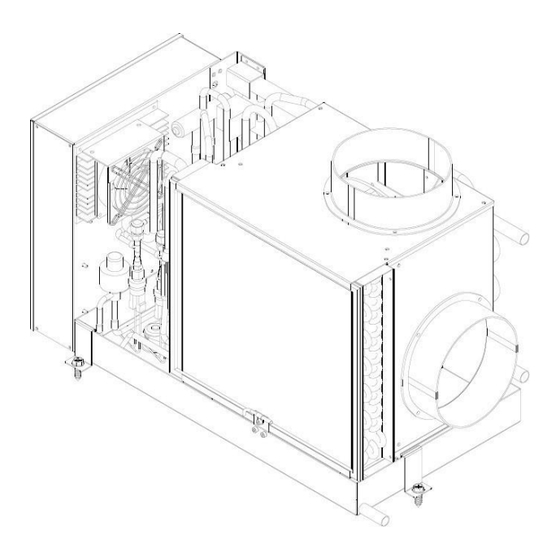

- Page 1 W A T E R T O A I R S E L F - C O N T A I N E D U N I T S DC INVERTER Technology Air Compact 4M Air Compact 6M...
-
Page 2: Table Of Contents
INDEX 1.0 INTRODUC TION ................................3 2.0 PACK AGING AND IDENTIFIC ATION ..........................4 3.0 UNIT DESCRIPTION ................................5 4.1.1 SAFETY MEASURES……………………………………………………………………………………………………………7 4.1.2 PROHIBITIONS………………………………………………………………………………………………………………..7 4.1.3 RESPONSIBILITY………………………………………………………………………………………………………………8 5.0 INSTALLATION ................................... 8 5.1.1 HYDRAULIC CONNECTIONS…………………………………………………………………………………………….10 5.1.2 AIR D UCTS CONNECTION…………………………………………………………………………………………………13 5.1.3 ELECTRICAL CONNECTION……………………………………………………………………………………………... 16 5.1.4 THERMOSTAT BULBS………………………………………………………………………………………………………..17 6.0 OPERATING ................................ -
Page 3: Introduction
/ or premature failure of this air conditioning unit. We invite you to read it carefully before operating the product. If there are any statements or procedures described in this manual, that you do not understand, contact INNOVA for assistance: Phone: +39 0465 670104 E-mail: info@innovaenergie.com... -
Page 4: Packaging And Identification
Any damage to the gas piping circuit due to a wrong handling of the unit will not be covered by INNOVA Warranty. Each product is identified by a label as below: Instruction manual Pag. -
Page 5: Unit Description
3.0 UNIT DESCRIPTION Brushless DC Inverter Technology This technology is applied to control the speed of the compressor allowing continuous adjustment of the temperature, in contrast to traditional air conditioning systems where the temperature is controlled by a compressor that can run only at full speed or complete stop. The system is equipped with a "Brushless DC"... - Page 6 Progressive start (no current peaks) The starting ramp begins at very low frequency (20 Hz) allowing to eliminate peak current at start -up. Powerful operation The compressor accelerates to up to 100 HZ (max cooling/heating capacity) after the starting phase, in order to reach very quickly the room temperature set point.
-
Page 7: Safety Measures
4.0 GENERAL NOTICES 4.1.1 SA F ET Y M E A S U R E S This instruction manual is an integral part of the appliance and therefore must be kept with care and must ALWAYS accompany the appliance even in case of its sale to another owner or user or to a transfer to another plant. -
Page 8: Responsibility
4.1.3 RE S P O NS I BI L I T Y INNOVA S.r.l. disclaims any liability for damage to people, animals or property resulting from the installation, use or maintenance improper of the product, or due to failure of compliance with standards and directives mentioned in this manual. - Page 9 Selection and installation of components are left to the responsibility of the installer who must operate according to the rules of good technique and the legislation in force. Before connecting the pipes make sure that these do not contain stones, sand, rust, scale or other foreign objects that could cause damage or failure to the system.
-
Page 10: Hydraulic Connections
5.1.1 HY D R A U L I C CO N N E CT I O NS The following is a summary of how to install the unit on a source circuit and at the outlet: CORRECT SYSTEM INSTALLATION The minimum nominal diameter of the connecting pipes should be 1". WRONG SYSTEM INSTALLATION EXAMPLES: Instruction manual Pag. - Page 11 SOURCE CIRCUIT Installing electric-pump The source-side pump is needed to circulate the amount of water required in the heat exchanger. If necessary, the system can also work in a closed circuit, for example with a geothermal system. Instruction manual Pag. 11 of 28 Date 2021-07-27...
-
Page 12: Air D Ucts Connection
For Air Compact 6M at least two outlets must be used. The diameter of the ducts should not be less than the diameter of the outlet nozzles. SELF CONTAINED AIR COMPACT 4M ducts diameter 125mm SELF CONTAINED AIR COMPACT 6M ducts diameter 150mm Instruction manual Pag. - Page 13 Air Compact 4M: 125 => 150 mm flange substitution The Air Compact 4M can work at its maximum performance with one duct only using the size 150mm, to do that the horizontal 125 mm flange must be dismounted and substituted with the 150mm flange supplied with the unit.
- Page 14 Suction The ambient air is sucked through one or more grids of appropriate size. The grid dimensions should respect the suction area of the unit. Air distribution The system needs a correct air flow in order to work efficiently. It is therefore important to get the correct distribution without bottlenecks, by maintaining the original nozzle diameter and not exceeding the recommended length of pipes.
- Page 15 AIR FILTER The air conditioner sucks air from the environment through an air-gas exchanger equipped with aluminum fins having small pitch. A filter must be located upstream the exchanger in order to protect it from dust. NOTE: the filter must be easy reachable to be extracted for the normal operations of cleaning and / or replacement whenever required.
-
Page 16: Electrical Connection
5.1.3 EL EC T R I C A L CO N N E CT I O N Warning It is important that the electrical system is done according to the rules, respecting the data provided in chapter Technical data and it shall be properly grounded. FIXING The electrical box is delivered fixed on the self-contained unit, however in case of limited space during installation it can be detached (by 3 screws) and fixed elsewhere at a max distance of 0.6 m. -
Page 17: Thermostat Bulbs
5.1.4 TH E R M O S TA T B U L BS A temperature sensor bulb is fixed to the drain pan through a bracket and located near the unit air suction. The main temperature sensor working sensor is located inside the room thermostat, Instruction manual Pag. -
Page 18: Operating
6.0 OPERATING From remote controller it is possible to select the On/Off mode, the cooling, heating mode, to change the set point temperature (+ / -), to select the fan speed (min., med., max., auto). The room thermostat must be installed in a proper position, away from direct heat source. The set point temperature and real value are shown on the thermostat display. - Page 19 Instruction manual Pag. 19 of 28 Date 2021-07-27...
-
Page 20: Alarms And Troubleshooting
✓ Winter heating mode: 10°C < source-side temperature < 20°C Should working conditions be out of these ranges, in your particular application, please contact INNOVA before installation in order to find a suitable solution. 7.1 Recommendations for sources with sea, lake or river water Localized situations: in some regions, it is common to experience a tremendous presence of jellyfish or seaweed concentrated in back bay marinas for some periods of time. - Page 21 This air conditioning system is designed to work under normal operation conditions. Where failure or malfunctions could lead to an abnormal operating condition that could cause injury or damage to any equipment or other property, additional precautions must be designed into the control system. Other devices (limit or safety control) or systems intended to warn of, or protect against failure or malfunction, must be incorporated into and maintained as part of the system .
-
Page 22: Limited Warranty
Limited warranty is extended only to the original application and is nottransferable. ✓ Any intervention by a third part not specifically and previously authorized by INNOVA to repair, will void the INNOVA warranty and it will not be reimbursed. 10. Owners Responsibilities The responsibility of the owner of the equipment includes the following: Operate the equipment according to the manufacturer’s instructions. -
Page 23: Control Panel Manual
11. CONTROL PANEL MANUAL Compliance This unit complies with the following European Directives: • • Low voltage 2014/35/EU; Electro-magnetic compatibility 2014/30/EU; Symbols The pictograms in the next chapter provide the unmistakable way. necessary information for correct, safe use of the appliance in a rapid, Editorial pictograms User... - Page 24 Control panel 11.1 SMART TOUCH electronic touch panel with room sensor 11.2 Display 11.3 11.4 Function of keys 11.5 General switch-on 11.6 Activation 11.7 Heating/air conditioning mode setting 11.8 Stand by 11.9 Temperature selection 11.10 Automatic operation 11.11 Medium speed fan operation 11.12 Minimum fan speed operation Operation at maximum ventilation speed...
-
Page 25: Display
11.1 Electronic smart touch panel with room probe Touch control panel is an electronic thermostat with a room temperature probe for controlling air After 20 seconds from the last action, the panel conditioning units, both On-Off and VSD – Inverter brightness will reduced... -
Page 26: Smart Touch Electronic Touch Panel With Room Sensor
Date 2021-07-27 Instruction manual Pag. 25 of 28... -
Page 27: General Switch-On
11.4 General On Switch must also be switched on. In order to manage the unit via the control panel, this - Turn the device on by activating the general switch must be connected to the conditioner If a general switch is installed on the power line, this 11.5 Activation To activate the device Operation... -
Page 28: Automatic Operation
11.9 Automatic operation Operation Display Press and hold the AUTO key. The function being activated is indicated by the relevant symbol appearing on the display. Ventilation speed adjustment carried point, according to a PI-type algorithm. automatically between the minimum and maximum values, according to the distance of the actual room temperature from the set 11.10 Medium ventilation speed operation... -
Page 29: Deactivation
11.15 Deactivation Operation Display Press and hold the ON Stand-By key for approx. 2 seconds. No illuminated signals on the display at all means that the system is in stand-by (no operation). The controller also ensures anti freezing when in stand-by. 11.16 Room temperature probe regulation offset By using this function, the value displayed can be... - Page 30 NOTE _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ _____ Date 2018-11-27 Instruction manual Pag. 28 of 28...
