Installation method

Before installing the conditioner, it is essential to calculate
the summer thermal loads (and winter ones for the
models with a heat pump) of the room. The more exact
the calculation, the better the product will work. Please
refer to current regulations to carry out calculations. For
large-scale installations, please call a specialised heat
engineer firm. Therefore, try to reduce higher heat loads
by following instructions below:
2.2

Choosing the position of the unit

For the best performance of the appliance and to avoid
malfunctions or dangerous situations, the location of the
unit must meet the following requisites:

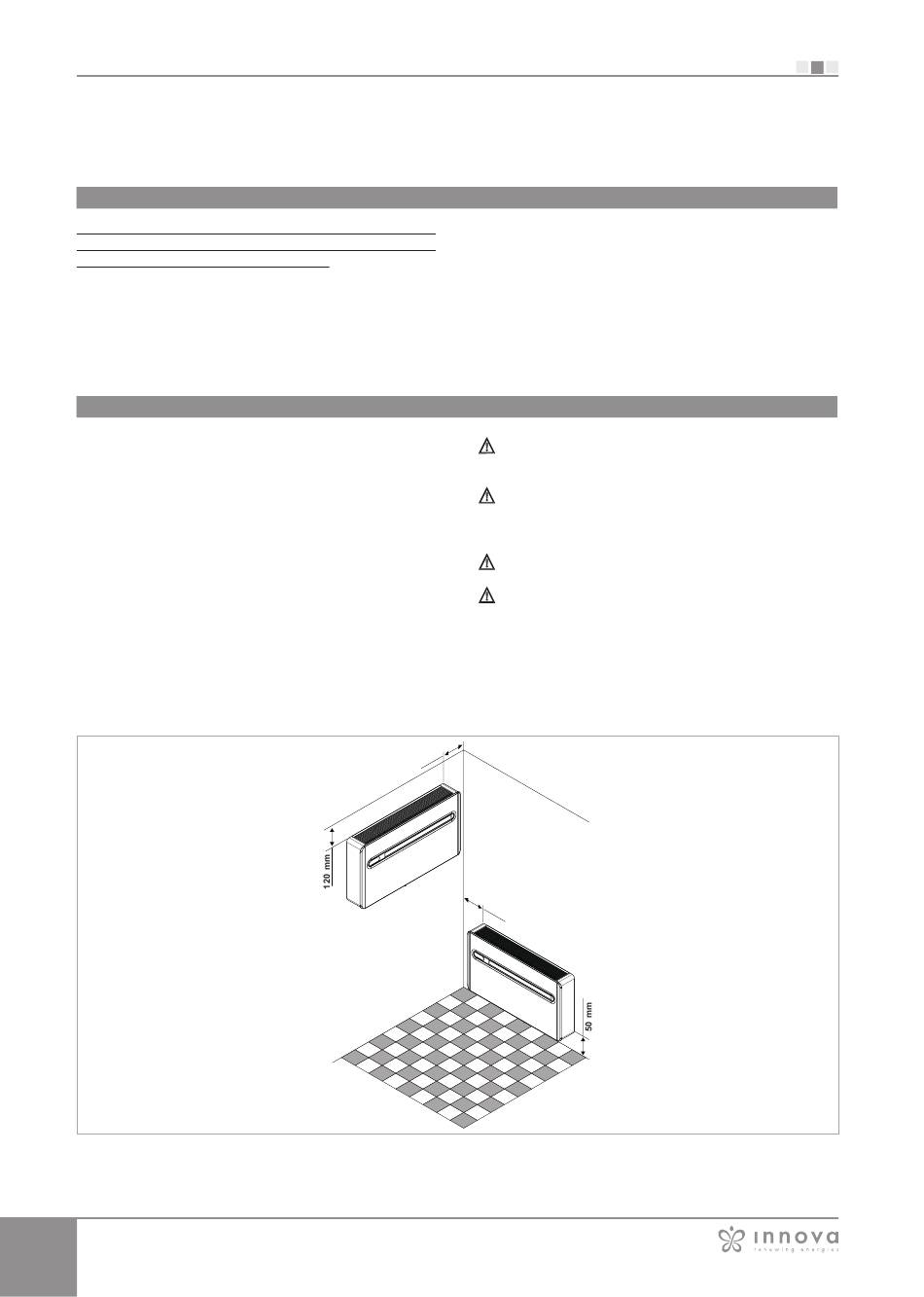

- Respect the minimum distances indicated in the
diagram.
- The wall on which you intend to anchor the unit must
be robust and able to support its weight.
- Leave enough space around the unit to perform
maintenance operations.
- Nothing must obstruct the air flow both in the top
suction part (curtains, plants, furniture) and in the lower
outlet part, as it could cause vibrations which might
prevent the appliance from working correctly
8
INSTALLATION
- Cover large windows exposed to sunlight with curtains
or with external maskings (blinds, porches, reflecting
films, etc.).
- The room must remain closed for as long as possible.
- Avoid turning on halogen lamps or other high energy
consumption appliances such as small ovens, steam
irons, hot plates etc.).
The appliance is stated as having an IPX0 protection
rating, therefore it is not suitable for outdoor installation.
Check that there are no structures or systems (beams,
pillars, hydraulic pipes, electrical cables etc.) in the part
that must be drilled.
Never force the air flap open;
The appliance must not be installed directly above
another electrical appliance (TV, radio, fridge, etc.) or
above a source of heat.
m
m
6 0
6 0
m
m
