EVAL-AD9874EB
or group of AD9874 supply pins by proper configuration of
jumpers JP1–JP9. This is useful for automated testing in which
various supply voltages may be swept. Also, the individual supply
currents can be monitored at these jumpers.
TB4 allows the user to apply an unregulated 5 V supply to five
voltage regulators that provide regulated supplies to the AD9874
by proper configuration of JP1–JP9. The voltage of these regulators
can be controlled over a 2.2 V to 3.8 V range via a potentiometer.
TB1 provides an unregulated 5 V supply for the digital ICs,
while TB2 provides a user-defined supply level for the LO VCO
module (if installed).
71.10MHz –5dBm
OUTPUT
73.35MHz –40dBm
OUTPUT
18.00MHz –5dBm
OUTPUT
POWER
SUPPLY
GND
+5.0

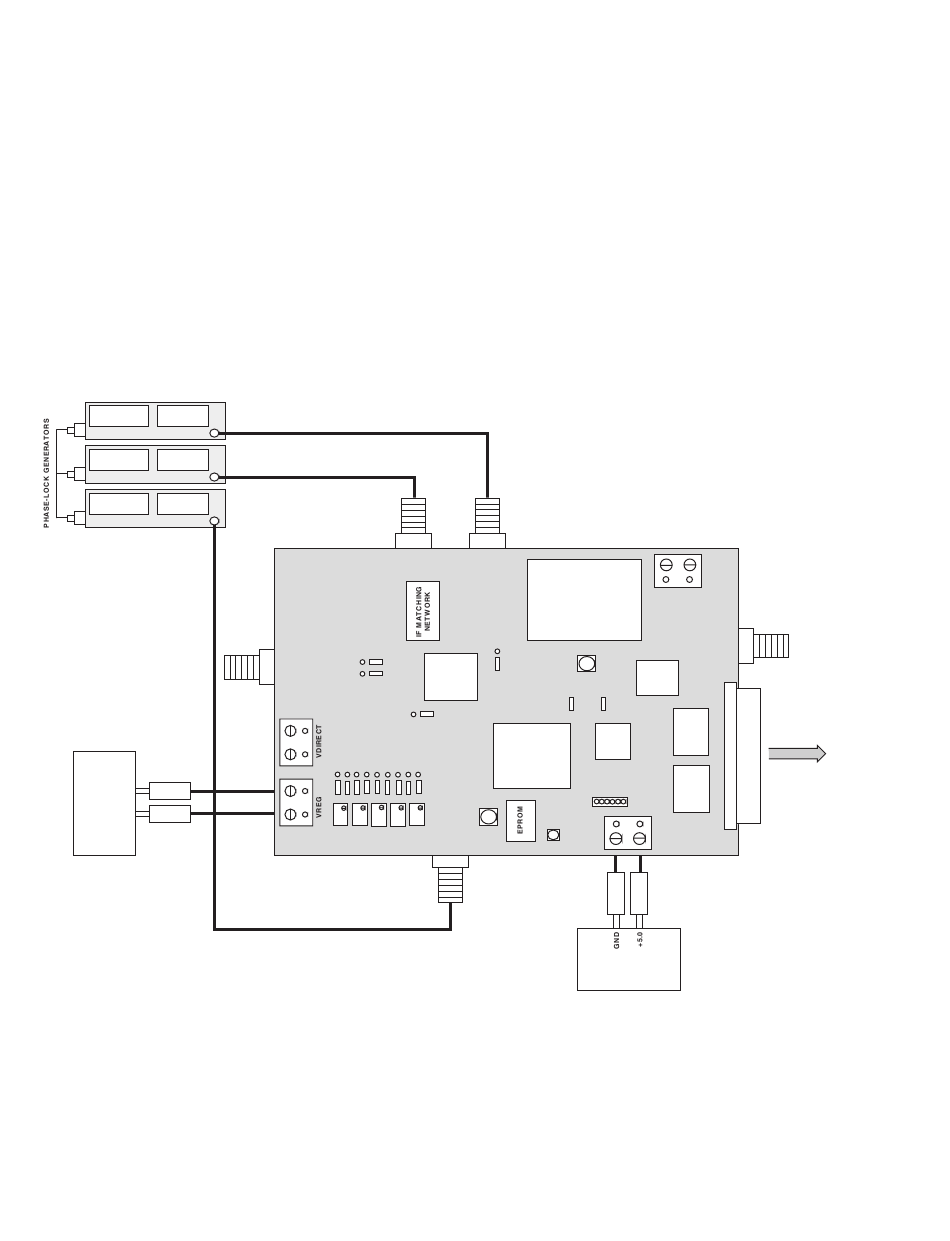

Figure 2. Typical AD9874 Evaluation Board Setup with the LO and CLK Synthesizers Disabled
J2
IFIN
MIXER OUT
JP23
J3
JP22
AD9874
TB3
AD9874 REVC
JP18
ANALOG
DEVICES
JP1-9
TB4
CLKIN
Evaluation Board Setup Example
Figure 2 shows an example of a lab setup used to evaluate the
AD9874. In this example, three RF generators are used to drive
the IFIN, LO_IN, and CLKIN SMA connectors, since both the
LO and CLK synthesizers of the AD9874 are disabled. All of
the RF generators are phase locked to minimize the phase noise
contribution and enable coherent sampling. Note, only a single
RF generator would be required to supply the IFIN signal if the
LO and CLK synthesizers were enabled with the necessary
external components installed (i.e., crystal oscillator, PLL loop
filter, VCO module, and so on).
Two 5 V supplies are connected to TB4 and TB1 with JP24 (or
J25) installed to connect the grounds of the supplies together.
Individual supplies to the AD9874 can be varied via the potenti-
ometers. A shielded interface cable (National Instruments Part
No. 183432-01) is used to connect the evaluation board to the
NI 6533 digital I/O card.
GETTING STARTED PRINTED CIRCUIT BOARD SETUP GUIDE
1) PHASE LOCK THREE SIGNAL GENERATORS AS FOLLOWS:
GEN 1: 71.1MHz @ –5dBm
GEN 2: 73.3MHz @ –40dBm
GEN 3: 18.0MHz @ –5dBm
2) CONNECT GENERATORS TO PCB AS SHOWN.
3) CONNECT ONE POWER SUPPLY TO TB4 AND ONE SUPPLY TO TB1.
BOTH POWER SUPPLIES SHOULD BE SET AT 5.00 VDC.
J5
LO_IN
LO VCO
MODULE INTERFACE
JP15
SW2
JP24
JP25
IDT
XILINX FIFO
FPGA
HEADER
SW1
LED
J6
POWER SUPPLY
–4–
TB2
J1
FREF
CRYSTAL
OSC.
U12
P1
TO NATIONAL INSTRUMENTS'
6533 CARD
U13
TB1
NOTE: THE GNDs OF THE TWO POWER SUPPLIES
CAN BE TIED TOGETHER AT THE SUPPLIES
OR ON THE BOARD AT JP24 OR JP25.
REV. 0
