TSP01

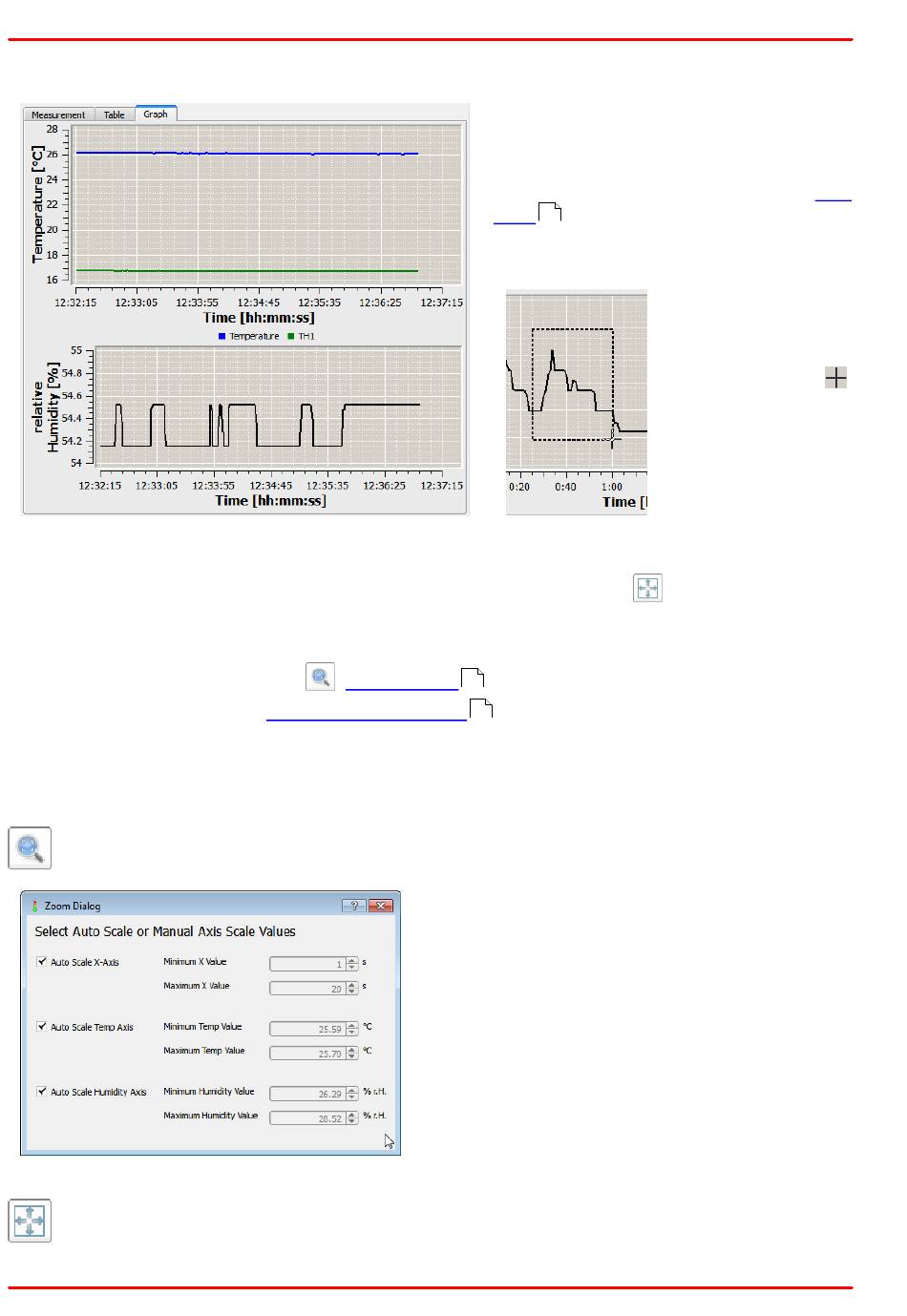

3.2.5 Tab Graph

to be zoomed and release the mouse button.
In order to return to the full graphical display (auto scaling), click to the
The time axis shows time in [sec] or [hh:min:sec] formats, a complete time stamp cannot be
shown.
For scaling of the graph, click the
The grid can be toggled, see

3.2.6 Graph Display Option Menus

The following icons are only visible when the tab Graph is selected.
Zoom Panel
Zoom Home: Click to this icon to display the entire graph (auto scaling).
14
Zoom Dialog
Graph Display Options
By default, Auto Scaling is enabled. By un-
checking the "Auto Scale..." box, the limits of
the appropriate axis can be changed.
The graph displayed in this tab shows
the logged measurement values based
on the data in the table of logged val-
ues. It is displayed when with the box
"Show Plot in Graph Tab" in the
tings panel is selected. Thus, logged
12
data can be shown or hidden in the
graphical display.
icon.
14
.
15
Set-
The graph display
can be zoomed:
move the mouse
pointer into the graph
- it changes to
Press and hold the
left mouse button -
the center of the
mouse pointer
changes to white
color. Drag a rect-
angle over the area
Zoom Home button.
