INSTALLATION INSTRUCTIONS
STEP 3: Mount Shafts to Brackets
To match the the location of your shafts to the proper width of your
vehicle's dash, first measure the distance between your existing shaft
holes from center to center.
Mount a shaft to each bracket using the supplied shaft nuts
and washers. Finger tighten the shaft nuts to prepare for the final
installation (See Figure 3). Once you ensure proper width, tighten
the screws and nuts (DO NOT OVERTIGHTEN).
OVERTIGHTENING THE SHAFT NUTS WILL DAMAGE THE SHAFTS.
DAMAGE FROM OVERTIGHTENING WILL VOID YOUR WARRANTY.
Finally, plug the shafts into each side of the body (See Figure 4).
9

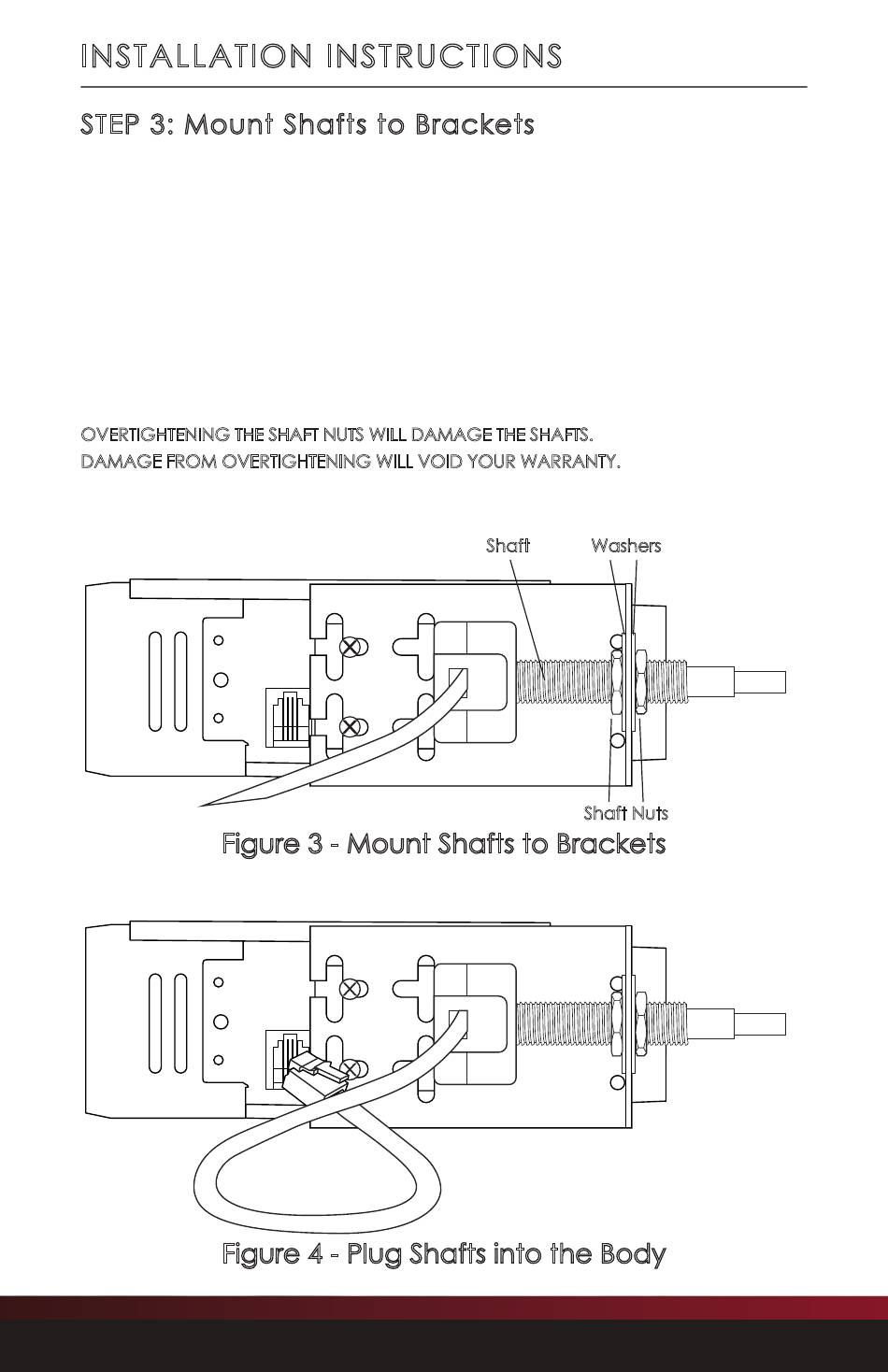

Figure 3 - Mount Shafts to Brackets
Figure 4 - Plug Shafts into the Body
Shaft Washers
Shaft Nuts
