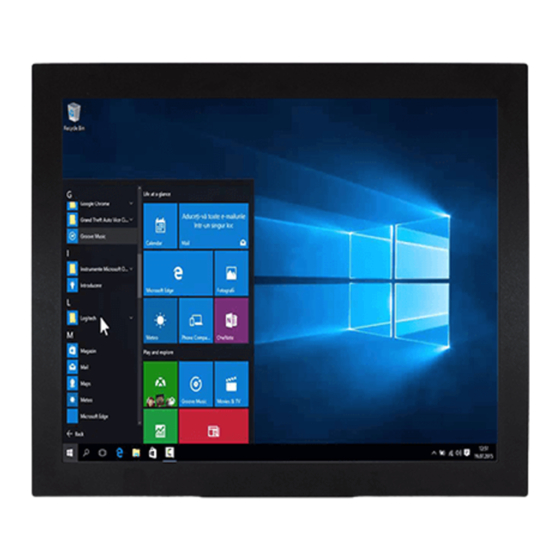

- Page 1 19”~23.8” G-WIN Panel PC Intel® Celeron® N2930 GC Series Model No. R19IB7T-GCM1 W22IB7T-GCA3 W24IB7T-GCA2 Quick Start Guide Document Version 1.0 Document Part No. 91521110105M Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
2.5 Using Recovery Wizard to Restore Computer Chapter 3: Installation 3.1 Wiring Requirements 3.2 Connecting to Other Devices Chapter 4: Mounting 4.1 VESA Mount 4.2 Panel Mount Appendix Appendix A: Specifications Appendix B: Cleaning the Monitor Appendix C: Winmate Software Development Kit... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 G-WIN GC Series Panel PC Quick Start Guide Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.
- Page 5 Preface For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. ...
- Page 6 G-WIN GC Series Panel PC Quick Start Guide Turn off power and input signals before connecting test equipment. Keep the work area free of non-conductive materials, such as ordinary plastic assembly aids and Styrofoam. Use filed service tools, such as cutters, screwdrivers that are conductive. ...
-
Page 7: Chapter 1: Introduction
Chapter 1: Introduction Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the panel PC in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 8: Overview
G-WIN GC Series Panel PC Quick Start Guide 1.1 Overview Congratulations on purchasing Winmate® G-WIN GC Series Panel PC. The elegantly designed, yet rugged, industrial grade G-WIN GC Series Panel PC is designed for heavy duty applications. With rugged construction, ultimate computing power, GC65 series are guaranteed to meet "heavy duty"... -
Page 9: Product Overview
Chapter 1: Introduction 1.4 Product Overview 19”, R19IB7T-GCM1 Unit: mm Dimensions: 444 x 368 x 71 № № Description Description ① ⑦ Power On Button ② ⑧ Power Reset Button VGA Out ③ ⑨ RS-232 (Optional) RS-232/422/485 ④ ⑩ Audio Jack PS/2 ⑤... - Page 10 G-WIN GC Series Panel PC Quick Start Guide 21.5”, W22IB7T-GCA3 Unit: mm Dimensions: 529 x 320 x 71 № № Description Description ① ⑦ RS-232 Conn.(Optional) RS-232/422/485 ② ⑧ Audio Jack PS/2 ③ ⑨ (Optional)* DC-IN Power Jack ④ ⑩ Brightness Adjustment Knob ⑤...
- Page 11 Chapter 1: Introduction 23.8”, W24IB7T-GCA2 Unit: mm Dimensions: 587 x 356 x 55 № № Description Description ① ⑦ RS-232 (Optional) RS-232/422/485 ② ⑧ Audio Jack PS/2 ③ ⑨ (Optional)* DC-IN Power Jack ④ ⑩ Brightness Adjustment Knob ⑤ ⑪ Power On Button ⑥...
-
Page 12: Chapter 2: Getting Started
G-WIN GC Series Panel PC Quick Start Guide Chapter 2: Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. -
Page 13: Turning On And Off Your Device
Chapter 2: Getting Started 2.1 Turning On and Off Your Device Follow the following steps to turn on your device: 1. Connect the Panel PC to a DIN adapter (4-pin). 2. Connect the AC adapter to the power cord. 3. Plug in the power cord to a working AC wall outlet. The device will boot automatically. Caution Use only the AC adapter (12V/ 84W) included in your package (Rating: Output 4.2 A). -
Page 14: Operating The Panel Pc
G-WIN GC Series Panel PC Quick Start Guide 2.2 Operating the Panel PC Winmate® G-WIN GC Series Panel PC support several versions of Windows OS: Windows 10 IoT, Windows Embedded 8 Standard, and Windows 7 Pro for Embedded Systems. Important: The device is shipped with the OS system according to your order. -
Page 15: Configuring Serial Port Settings
Chapter 2: Getting Started Settings Description The system automaticity restarts when this countdown time reaches zero. Watchdog Countdown Time Default: 10 min To set a cycle time to automatically reset watchdog timer. Periodically Feed Time Default: 9 min Enable or disable watchdog. Enable / Disable Default: Enable 2.4 Configuring Serial Port Settings... -
Page 16: Using Recovery Wizard To Restore Computer
G-WIN GC Series Panel PC Quick Start Guide 2.5 Using Recovery Wizard to Restore Computer Your computer has a dedicate recovery partition stored on the hard drive of the PC to enable quick one-key recovery process. This partition occupies about 11GB of the storage space, and comes built-in to each PC. -
Page 17: Chapter 3: Installation
Chapter 3: Installation Chapter 3: Installation This chapter provides instructions how to connect the panel PC to external interfaces. -
Page 18: Wiring Requirements
G-WIN GC Series Panel PC Quick Start Guide 3.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. - Page 19 Chapter 3: Installation 3.2.2 Serial Port Connector Use COM1 serial port RS-232/422/485 connector to connect your Panel PC to external devices such as modem or printer. You can configure serial port setting via jumpers located on the motherboard. You need to open the housing in order to access the jumpers. Pin №...
- Page 20 G-WIN GC Series Panel PC Quick Start Guide 3.2.3 RJ45 Connector The GC Series Panel PC has two RJ45 connectors that support 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin № Pin № Signal Name Signal Name TX1+ TX1- TX2+ TX2-...
- Page 21 Chapter 3: Installation 3.2.6 PS/2 Connector Use PS/2 connector to connect the panel PC to external keyboard and mouse. Pin № Pin № Name Name +DATA Reserved +CLK Reserved...
-
Page 22: Chapter 4: Mounting
G-WIN GC Series Panel PC Quick Start Guide Chapter 4: Mounting This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. -
Page 23: Vesa Mount
100x100 mm, 75 x 75 mm M4 VESA Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mount accessories are not supplied by Winmate. -
Page 24: Panel Mount
G-WIN GC Series Panel PC Quick Start Guide 4.2 Panel Mount Panel Mount mounting solutions is suitable for many applications where Panel PC should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout Screw Hole Diameter 19”... -
Page 25: Appendix
Appendix Appendix Appendix A: Specifications Model Name R19IB7T-GCM1 W22IB7T-GCA3 W24IB7T-GCA2 Display 21.5” TFT 23.8” TFT Size/Type 19" TFT Resolution 1280x1024 1920x1080 1920x1080 Brightness 250cd/m2 (typ.) 250cd/m2 (typ.) 250cd/m2 (typ.) Contrast Ratio 1000 : 1 (typ.) 3000 : 1 (typ.) 3000 : 1 (typ.) Viewing Angle -85~85(H);-80~80(V) -
Page 26: Appendix B: Cleaning The Monitor
G-WIN GC Series Panel PC Quick Start Guide Appendix B: Cleaning the Monitor Before cleaning: Make sure the device is turned off. Disconnect the power cable from any AC outlet. When cleaning: Never spray or pour any liquid directly on the screen or case. ... -
Page 27: Appendix C: Winmate Software Development Kit
Appendix Appendix C: Winmate Software Development Kit Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by Winmate for GC Series Panel PC with Intel ® Celeron ® Bay Trail-M N2930 processor: Item File Type Description Watchdog SDK... - Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
