5.5 Changing Motor Parameters

Moves are performed using a trapezoidal velocity profile (see Appendix E
E.1.3.). The velocity settings relate to the maximum velocities at which a move is
performed, and the acceleration at which the motor speeds up from zero to maximum
velocity.
1) On the GUI panel, click the 'Settings' button (bottom right hand corner of the
display) to show the Settings panel.
2) Select the Move/Jogs tab as shown in Fig. 5.5.
3) In the 'Moves' field, enter parameter values as follows:
'Max. Vel' - '4'
'Accn/Dec' - '1.5'
In current versions of software, the 'Min Vel' parameter is locked at zero
4) Click 'OK' to save the settings and close the window.
5) Any further moves initiated will now be performed at a maximum velocity of 4.0
mm per second, with an acceleration of 1.5 mm/sec/sec.
36

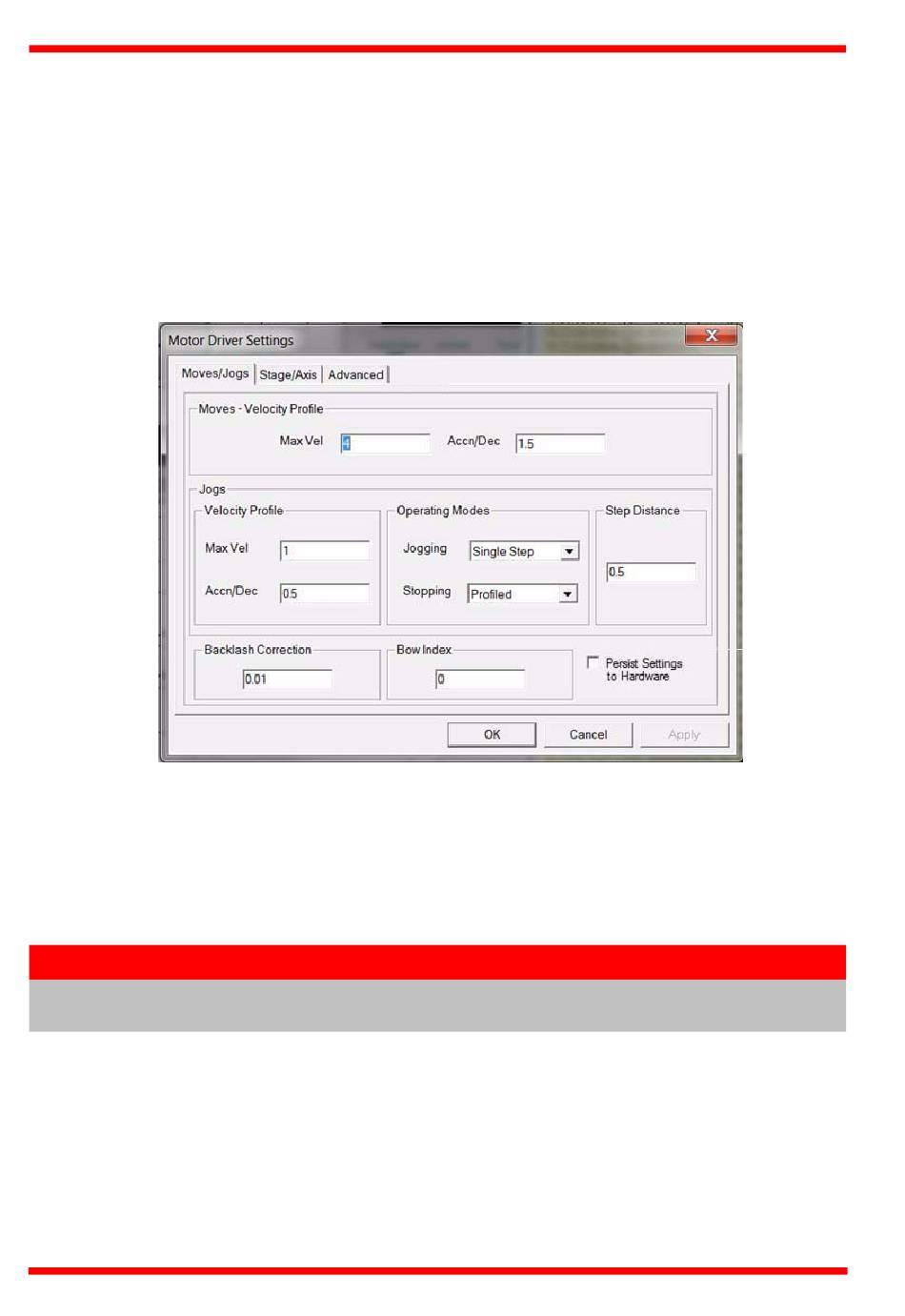

Fig. 5.5 Settings Panel - Move/Jogs Tab
Note
and cannot be adjusted.
