Chapter 3
3.2.3 Using the Baseplate
The baseplate must be bolted to the worksurface before the K-Cube is fitted, as shown below.
The K-cube is then located on two dowels in the baseplate and secured by two clips.

3.3 Electrical Installation

3.3.1 Rear Panel
The rear panel of the unit is fitted with a 15 pin D-type connector as shown above,
which is compatible with all new Thorlabs DC servo motor actuators (refer to
Appendix A
DO NOT connect a motor actuator while the K-Cube is powered up.
Only use motor drive cables supplied by Thorlabs, other cables may have
14

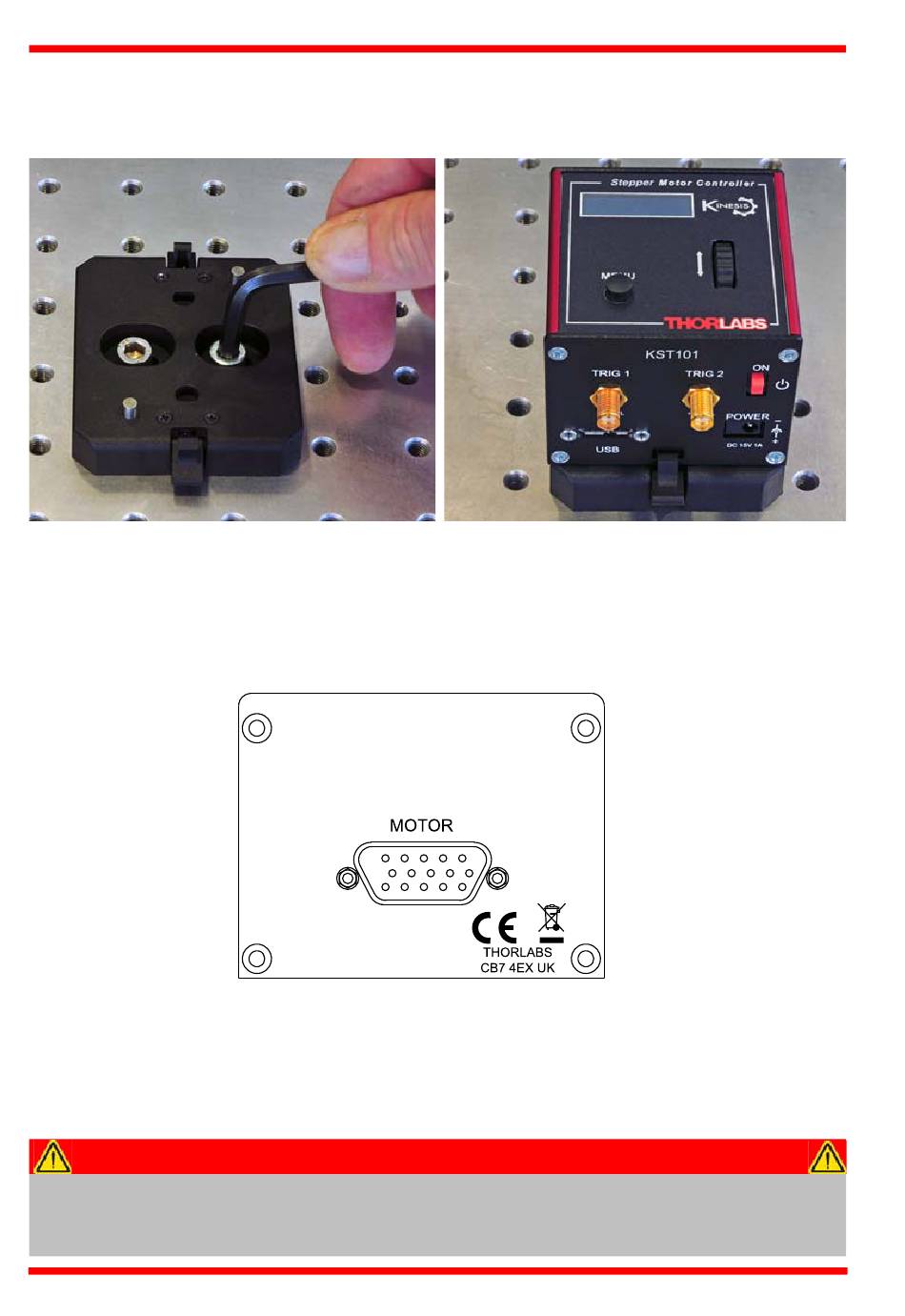

Fig. 3.1 Using The Baseplate
Fig. 3.2 Rear Panel Connections
for details of pin outs).
incompatible wiring.
Caution
HA0362T Rev C Jan 2017
