Description of the available parameters

Special LCP functions

Multiple parameters display: To have multiple read-only parameters displayed at once on the LCP simply
press the [DISPLAY/STATUS] button after start-up. This will prompt the top line of the LCP to display up
to three read-only parameters that can be specified in P010, P011, and P012. The default settings will
bring up the following display:
Holding down the [DISPLAY/STATUS] button will display which parameters are shown in the top line of
the display.
The TEACH-IN function: Pressing the [JOG] and [FWD./REV.] buttons at the same time will cause the
target position P739 to be updated with the actual position. This provides an easy way of programming
several positions. Simply jog to the desired position, then press the [JOG] and [FWD./REV.] buttons to
store that position in memory.
20
Positioning Controller

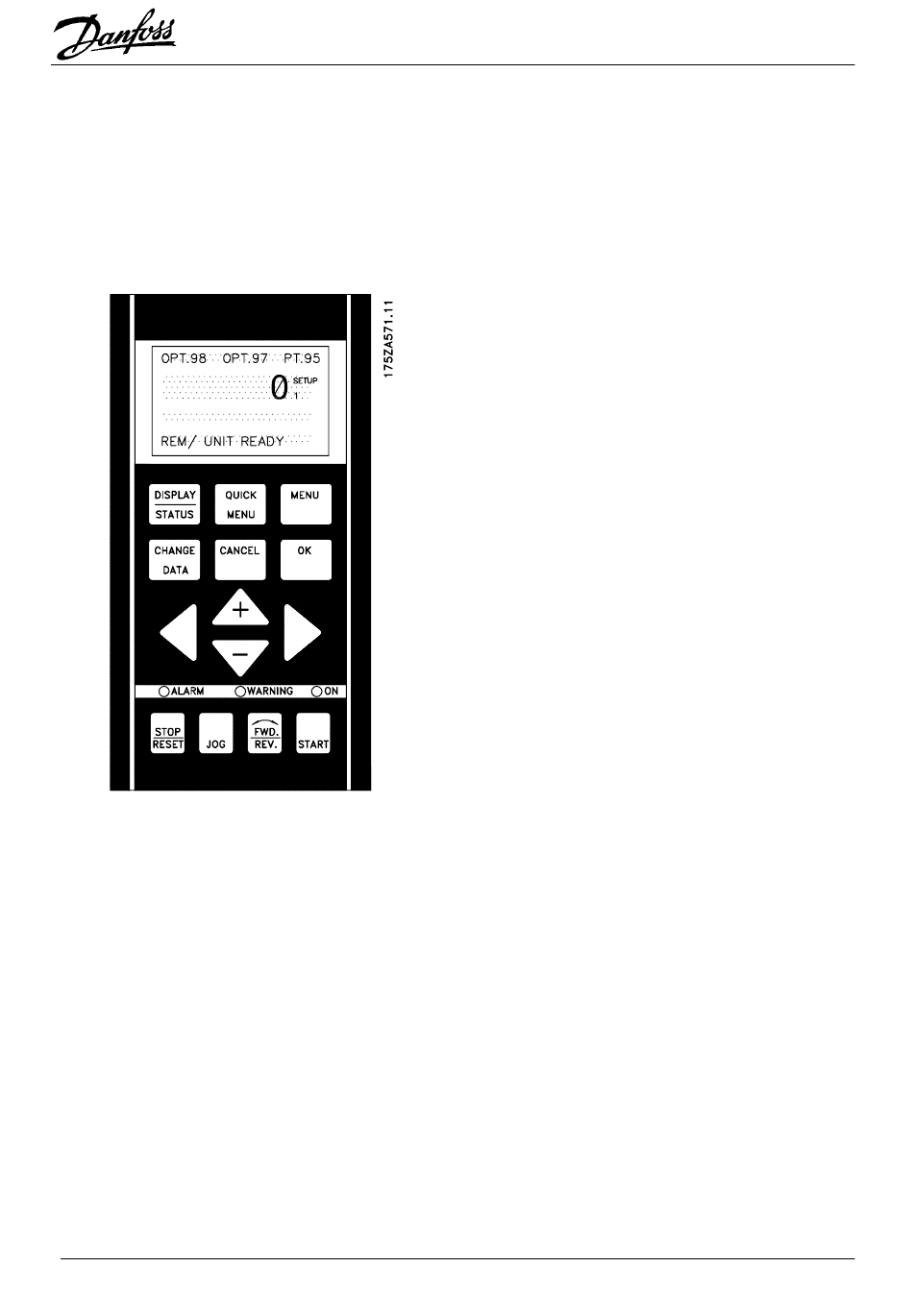

Figure text: To the left: P798 –
the error status. In the middle:
P797 - the PID tracking error.
To the right: P795 – the actual
position.
