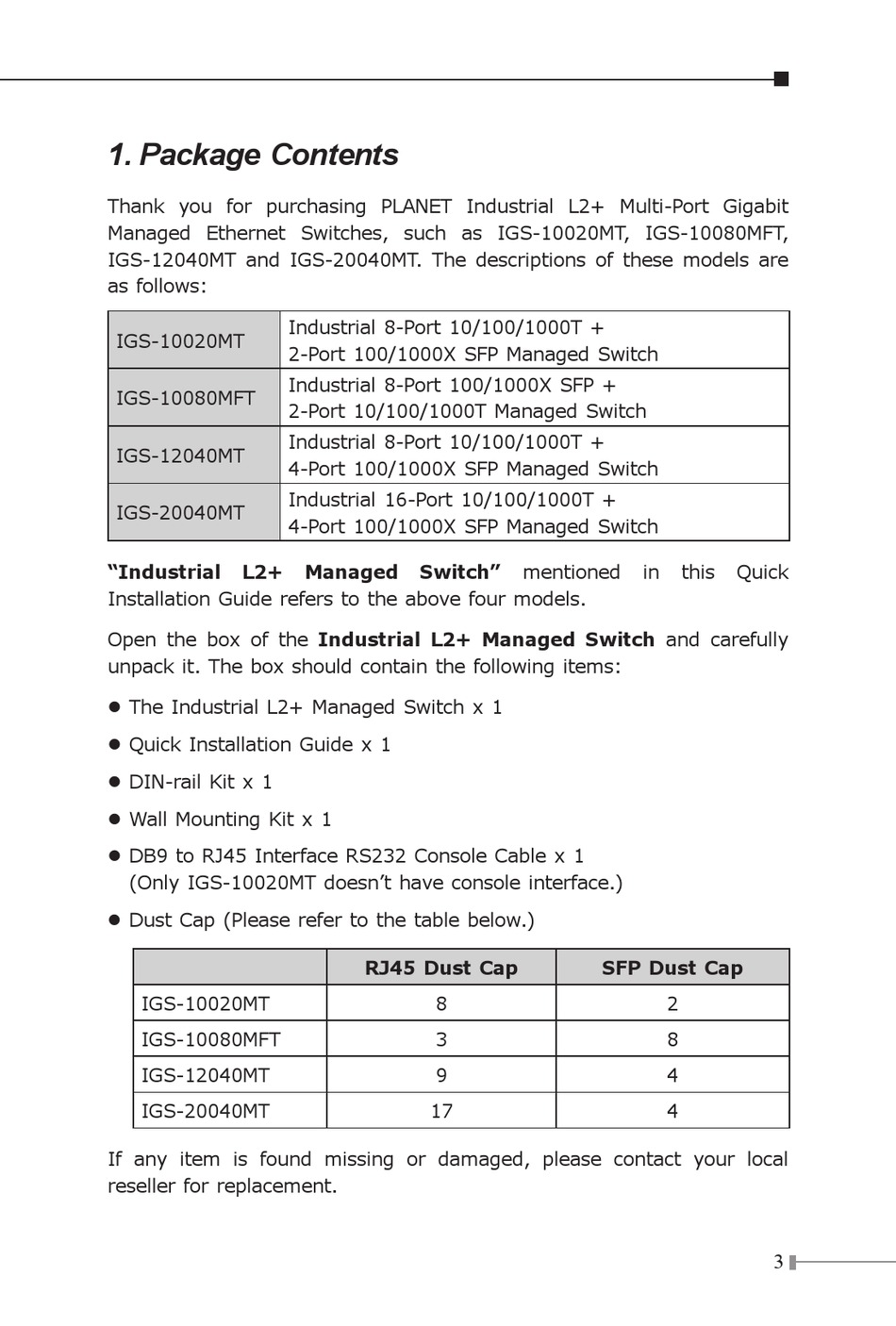

1. Package Contents

Thank you for purchasing PLANET Industrial L2+ Multi-Port Gigabit
Managed Ethernet Switches, such as IGS-10020MT, IGS-10080MFT,
IGS-12040MT and IGS-20040MT. The descriptions of these models are
as follows:
IGS-10020MT
IGS-10080MFT
IGS-12040MT
IGS-20040MT
"Industrial L2+
Installation Guide refers to the above four models.
Open the box of the Industrial L2+ Managed Switch and carefully
unpack it. The box should contain the following items:
z The Industrial L2+ Managed Switch x 1
z Quick Installation Guide x 1
z DIN-rail Kit x 1
z Wall Mounting Kit x 1
z DB9 to RJ45 Interface RS232 Console Cable x 1
(Only IGS-10020MT doesn't have console interface.)
z Dust Cap (Please refer to the table below.)
IGS-10020MT
IGS-10080MFT
IGS-12040MT
IGS-20040MT
If any item is found missing or damaged, please contact your local
reseller for replacement.
Industrial 8-Port 10/100/1000T +
2-Port 100/1000X SFP Managed Switch
Industrial 8-Port 100/1000X SFP +
2-Port 10/100/1000T Managed Switch
Industrial 8-Port 10/100/1000T +
4-Port 100/1000X SFP Managed Switch
Industrial 16-Port 10/100/1000T +
4-Port 100/1000X SFP Managed Switch
Managed Switch" mentioned in this Quick
RJ45 Dust Cap
8
3
9
17
SFP Dust Cap
2
8
4
4
3
