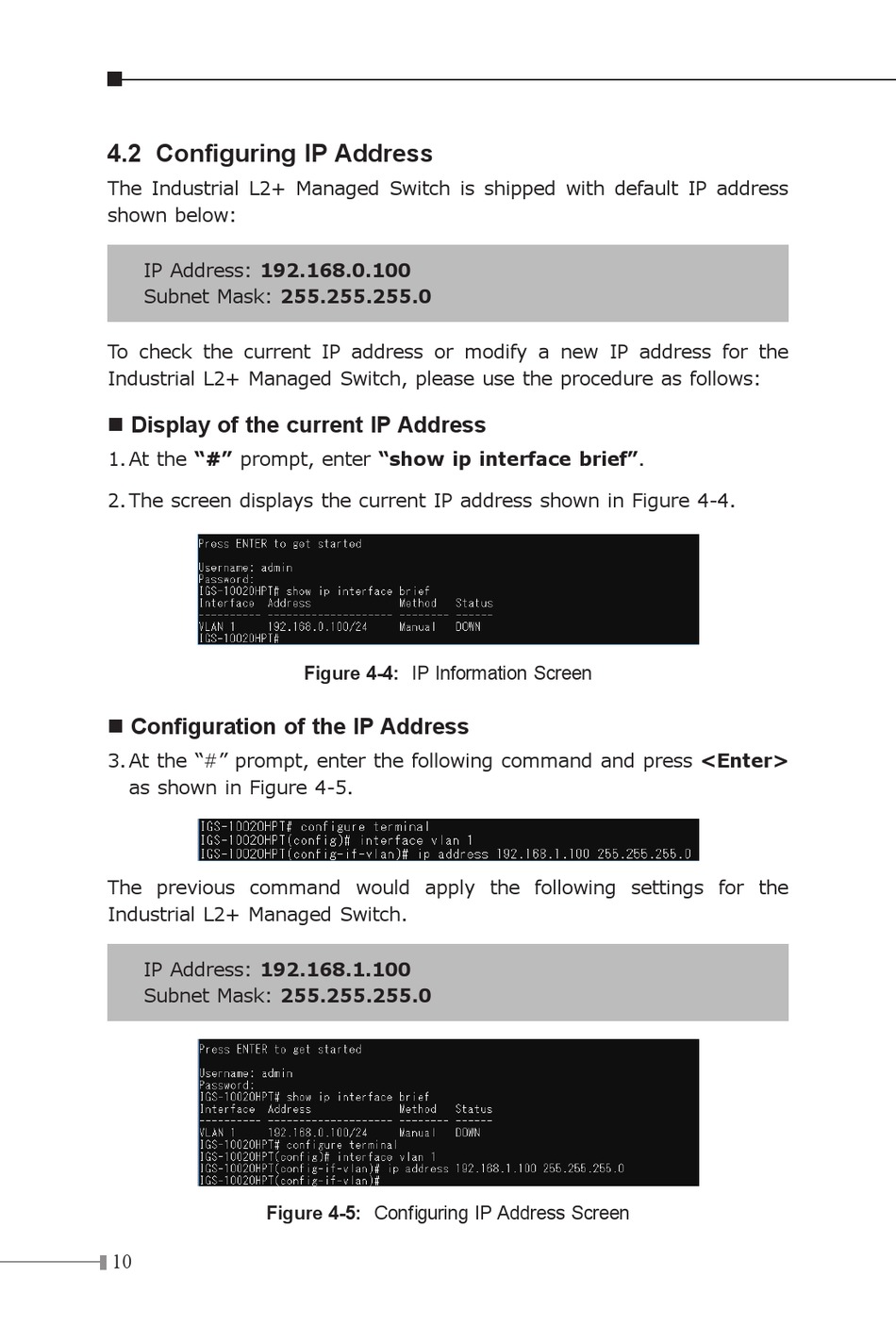

4.2 Configuring IP Address
The Industrial L2+ Managed Switch is shipped with default IP address
shown below:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the
Industrial L2+ Managed Switch, please use the procedure as follows:
 Display of the current IP Address
1. At the "#" prompt, enter "show ip interface brief".
2. The screen displays the current IP address shown in Figure 4-4.
 Configuration of the IP Address
3. At the "#" prompt, enter the following command and press <Enter>
as shown in Figure 4-5.
The previous command would apply the following settings for the
Industrial L2+ Managed Switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Figure 4-5: Configuring IP Address Screen
10
Figure 4-4: IP Information Screen
