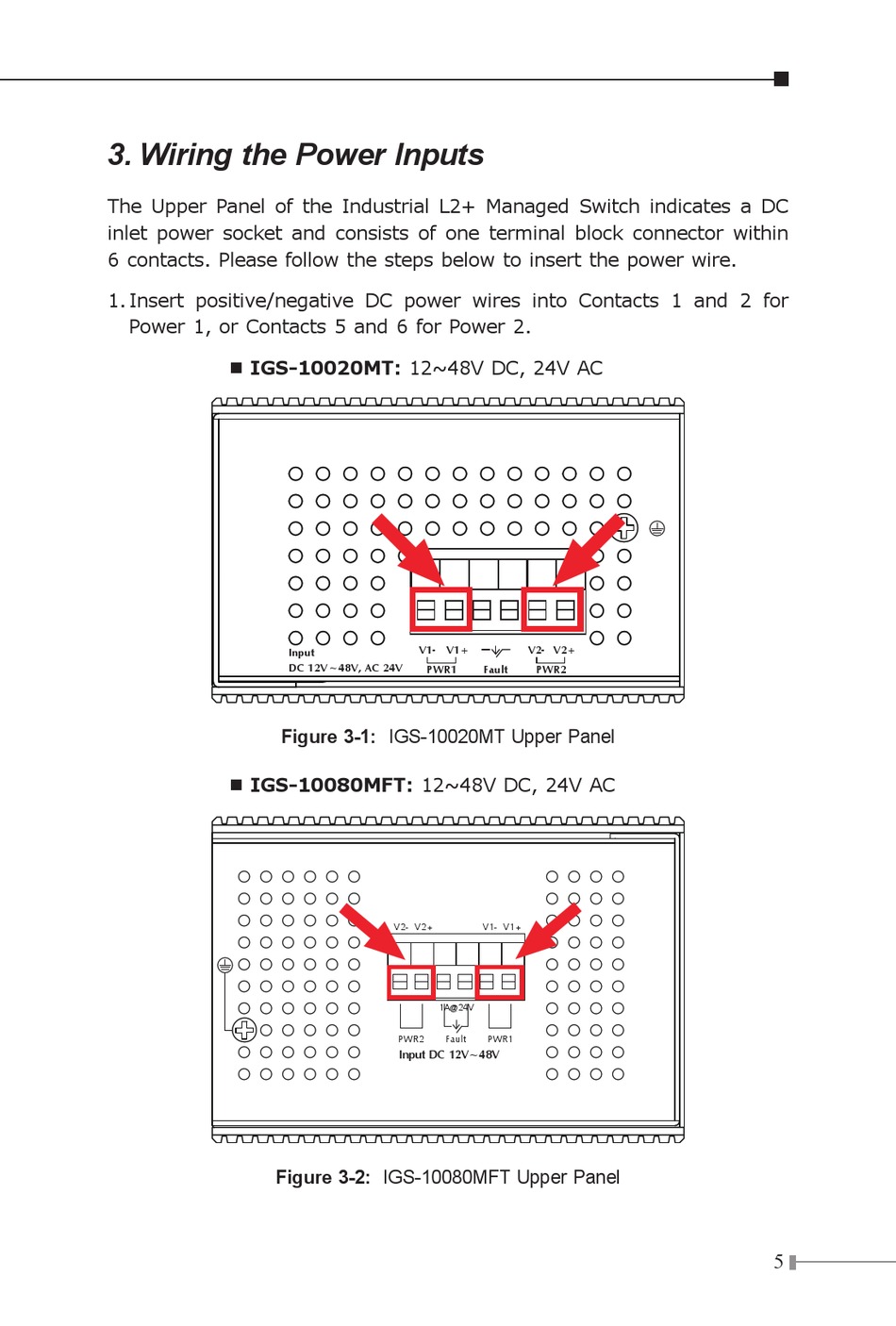

3. Wiring the Power Inputs

The Upper Panel of the Industrial L2+ Managed Switch indicates a DC
inlet power socket and consists of one terminal block connector within
6 contacts. Please follow the steps below to insert the power wire.
1. Insert positive/negative DC power wires into Contacts 1 and 2 for
Power 1, or Contacts 5 and 6 for Power 2.
 IGS-10020MT: 12~48V DC, 24V AC
 IGS-10080MFT: 12~48V DC, 24V AC
Figure 3-2: IGS-10080MFT Upper Panel
V1- V1+
Input
DC 12V~48V, AC 24V
PWR1
Figure 3-1: IGS-10020MT Upper Panel
V2- V2+
1A@24V
PWR2 Fault
Input DC 12V~48V
V2- V2+
Fault PWR2
V1- V1+
PWR1
5
