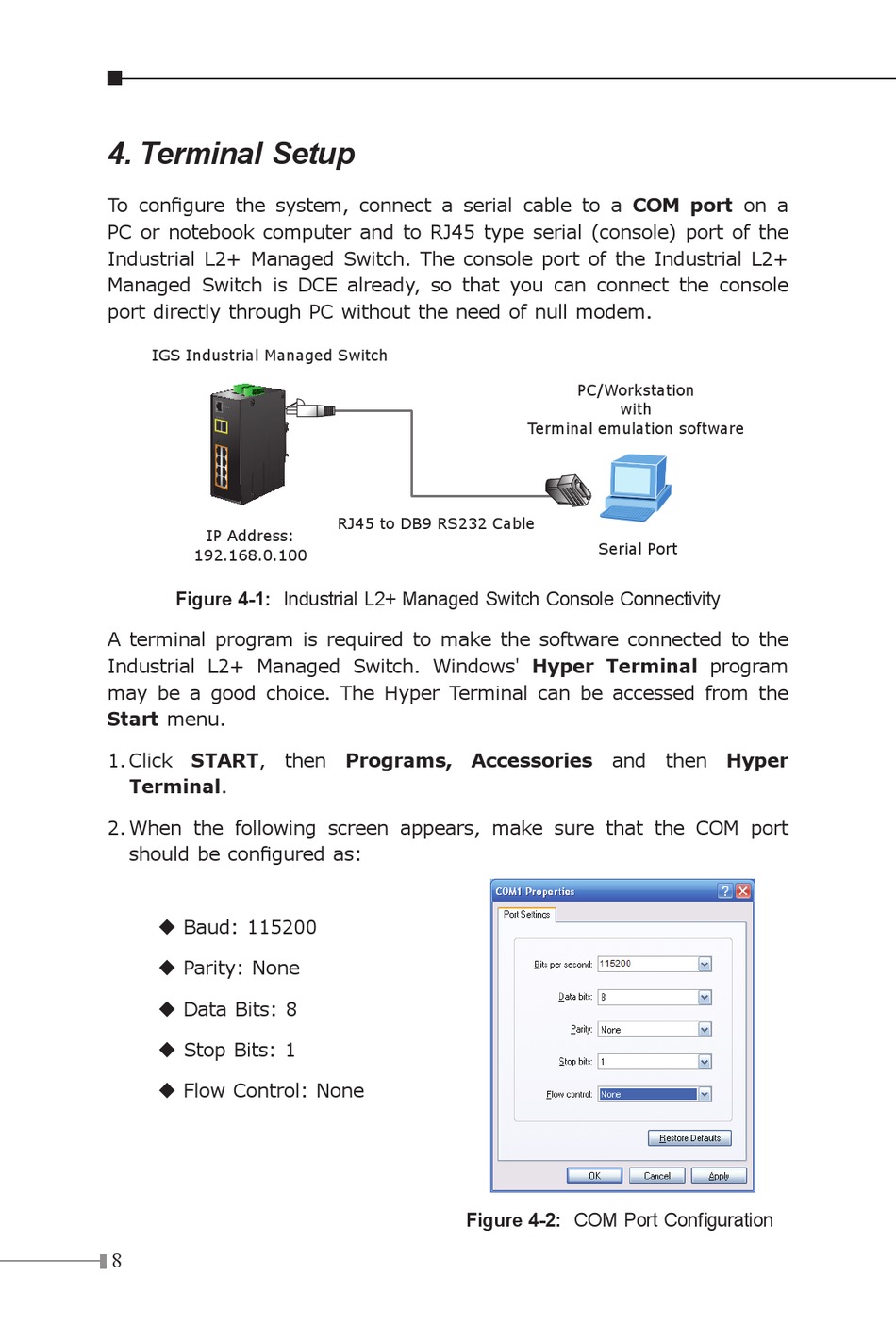

4. Terminal Setup

To configure the system, connect a serial cable to a COM port on a
PC or notebook computer and to RJ45 type serial (console) port of the
Industrial L2+ Managed Switch. The console port of the Industrial L2+
Managed Switch is DCE already, so that you can connect the console
port directly through PC without the need of null modem.
IGS Industrial Managed Switch
IP Address:
192.168.0.100
Figure 4-1: Industrial L2+ Managed Switch Console Connectivity
A terminal program is required to make the software connected to the
Industrial L2+ Managed Switch. Windows' Hyper Terminal program
may be a good choice. The Hyper Terminal can be accessed from the
Start menu.
1. Click START, then Programs, Accessories and then Hyper
Terminal.
2. When the following screen appears, make sure that the COM port
should be configured as:
 Baud: 115200
 Parity: None
 Data Bits: 8
 Stop Bits: 1
 Flow Control: None
8
RJ45 to DB9 RS232 Cable
Figure 4-2: COM Port Configuration
PC/Workstation
with
Terminal emulation software
Serial Port
