Sivoia QED
™
Roller 64
™
Pocket Mount
Installation
Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sivoia QED Roller 64 and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics Sivoia QED Roller 64

Summary of Contents for Lutron Electronics Sivoia QED Roller 64

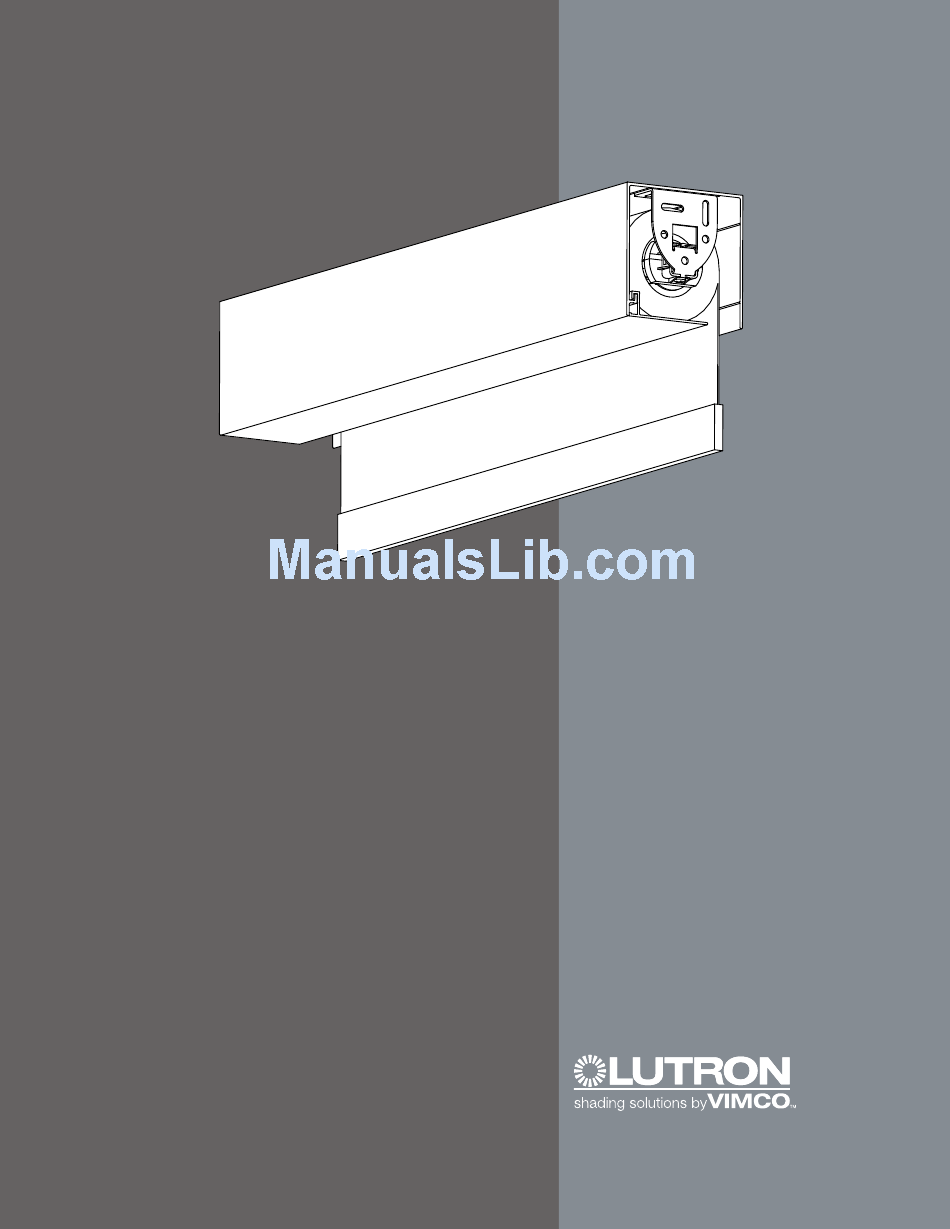

  • Page 1 Sivoia QED ™ Roller 64 ™ Pocket Mount Installation Instructions...
  • Page 2 Sivoia QED Roller 64 Pocket Mount Installation Instructions Tools Required: Tape Measure 1/4” Hex-Head Driver Wire Cutter/Stripper Level Pliers Power Drill #2 Phillips Screwdriver Notes: 1) Complete wiring and programming information can be found in the Sivoia QED Wire and Programming Guide, P/N 045-038 or at www.lutron.com.
  • Page 3 Warning: Incorrect installation can lead to severe injury, follow all installation instructions. Notes: • The Sivoia QED Roller 64 must be used only with window systems approved by Lutron. • There must be a clearance of at least 1.3 feet (0.4 meters) between the fully lowered system and any permanent object.
  • Page 4 Confirm System Dimensions Package Label Compare system dimensions on the package label with the window dimensions to verify appropriate window/shade combination. System Height System Width SIVOIA QED Roller 64 Pocket Mount Installation Instructions...
  • Page 5 Install Pocket Endcaps (if applicable) Slide the 2 tabs of the pocket endcap into the pocket until it is flush with the outside. SIVOIA QED Roller 64 Pocket Mount Installation Instructions...
  • Page 6 Mount Pocket DANGER - Locate and lock breaker to the shade power supply in the OFF position or unplug the power plug-in transformer before doing any wiring. Pre-drill pocket to allow clearance for the wires without interfering with the bracket. Follow figure below for suggested hole locations.
  • Page 7 Mount Pocket Verify mounting surface is level/plumb before attaching pocket. Note: Pocket may rub fabric if installed with an improper tilt or may cause flap to fall. Orient the pocket. For regular roller shades, install pocket with flap hanging feature on the opposite side of the glass.
  • Page 8 Mount Pocket (continued) Mount the pocket using appropriate fasteners (make sure it is level). Note: Screws must be at least 1.5” (38mm) from system end to avoid interfering with mounting of shade brackets. Note: Be sure to pull cable from wall through the hole in pocket while mounting. Note: The pocket should be mounted to support at least 300 lbs (136 kg).
  • Page 9 Position the Mounting Brackets Mark the location of the mounting brackets so they are centered over the window. Note: Bracket to Bracket Distance = Fabric Width + 1.5” (38mm) = System Width. SIVOIA QED Roller 64 Pocket Mount Installation Instructions...

  • Page 10: Install The Mounting Brackets

    Install the Mounting Brackets Install the first mounting bracket between the aligning ribs in the pocket. Install the second mounting bracket between the aligning ribs in the pocket at the other end of the system. Note: Put a screw in the center of each slot. Use slots as needed to ensure brackets are level and plumb as positioned.
  • Page 11 Wire 7-Pin Terminal Block Strip 2” (50mm) of the jacket off the cable run from the wall. Wire 7-Pin terminal block (provided) to cable using the included screwdriver. Note: SVQ-CBL-250 shown. SIVOIA QED Roller 64 Pocket Mount Installation Instructions...
  • Page 12 Orient the Buttons and Wiring Orient the shade as shown so the buttons are accessible (do not try to mount shade yet) and the wires are not pitched or damaged. Note: The wires may go in either or both of the slots shown on the figure below. Buttons Wire Slots SIVOIA QED...
  • Page 13 Mount the Shade Install the idler side of the shade onto its bracket. Depress the spring loaded idler by pressing the shade towards the idler, and install the EDU side of the shade onto its bracket. SIVOIA QED Roller 64 Pocket Mount Installation Instructions...
  • Page 14 Adjust the Shade Adjust shade by removing the necessary screws and moving the brackets horizontally. Note: You may have to remove the shade to access the bracket screws. Reinstall and tighten the screws. Note: It is not recommended to use bracket spacers inside the pocket. SIVOIA QED Roller 64 Pocket Mount Installation Instructions...
  • Page 15 Connect Terminal Blocks 10.1 Plug 7-pin terminal block on cable into EDU terminal block (a cable tie can be used to secure the terminal blocks together). 10.2 Dress wires to ensure fabric does not rub while the shade is moving. SIVOIA QED Roller 64 Pocket Mount Installation Instructions...
  • Page 16 IR Receiver Connection (if applicable) 11.1 Plug in the IR receiver. 11.2 Position the IR receiver. Note: The IR receiver should be mounted such that it is in line-of-sight with the remote control and that it does not interfere with the shade. SIVOIA QED Roller 64 Pocket Mount Installation Instructions...
  • Page 17 Secure and Check the Shade 12.1 Tighten retaining screws in each bracket to secure the shade. SIVOIA QED Roller 64 Pocket Mount Installation Instructions...
  • Page 18 Secure and Check the Shade (continued) 12.2 Reconnect power to the shade power supply. Use the programming stylus to run the shade up and down using the adjustment buttons ( ), re-level if needed. Observe: Pay careful attention to the shade roll up to ensure that it does not telescope extremely to one side or the other.
  • Page 19 Setting Limits from the EDU Setting the Open Limit from the EDU Note: Setting the Open Limit lower than the Close Limit will cause the shade to move down when raise is pressed and up when lower is pressed. 13.1 Tap the “Open Limit Button”...
  • Page 20 Setting Limits from the EDU (continued) Setting the Close Limit from the EDU 13.4 Tap the “Close Limit Button” ( ). The green LED on the roller Shade EDU will turn on steady, indicating that the EDU is in “Set Close Limit Mode”. 13.5 Adjust the position of the EDU to the desired Close...
  • Page 21 Install the Pocket Flap (if applicable) 14.1 Lift the pocket flap inside the pocket and hook it on the hanger. Pivot the flap down until it is fully seated. 14.2 Ensure the shade does not rub on anything. SIVOIA QED Roller 64 Pocket Mount Installation Instructions...
  • Page 22 Finish System Programming The Sivoia QED shade is now installed, wired, and the OPEN/CLOSE limits for each shade have been set. The next step is to finish programming the system. Use the instructions in the Wiring and Programming Guide (p/n 045-038) or the Technical Reference Guide (p/n 367-592) and perform these four easy steps: 1.

  • Page 23: Troubleshooting

    Troubleshooting Symptom Solution Shade will not move..EDU is not powered - check EDU Power..Shade is caught on something - free shade..Shade is not assigned to keypad, IR, or CCI. Shade does not fully open or fully close..Limits have been set incorrectly - refer to “set open limit”...

  • Page 24: Technical Assistance

    Lutron, the Sunburst logo, and Sivoia are shadinginfo@lutron.com Shanghai registered trademarks, and Sivoia QED is a TECHNICAL SUPPORT Tel: +86-21-6288-1473 & SERVICES trademark of Lutron Electronics Co., Inc. Fax: +86-21-6288-1751 USA +1-800–523-9466 – Singapore 24 hours/7 days Tel: +65-6220-4666 UK +44-(0)20-7702-0657 Fax: +65-6220-4333 09.00 - 18.00 GMT...
