6 Display Module ITC100D

Thorlabs GmbH offers an optional ITC100D display module that can be mounted directly to the
ITC1xx board. The ITC100D module can be covered using the optional
An numeric 3½ digit display with selectable by the user decimal point position will display the
selected by the rotary switch parameter. Below the parameters are listed in the order when
turning the rotary switch from the left to the right stop:
Monitor (photo) diode current I
·
Laser diode current I
·
Laser diode current limit I
·
Temperature set point T
·
Actual temperature T
·
TEC current limit I
·

6.1 Preparing the ITC100D

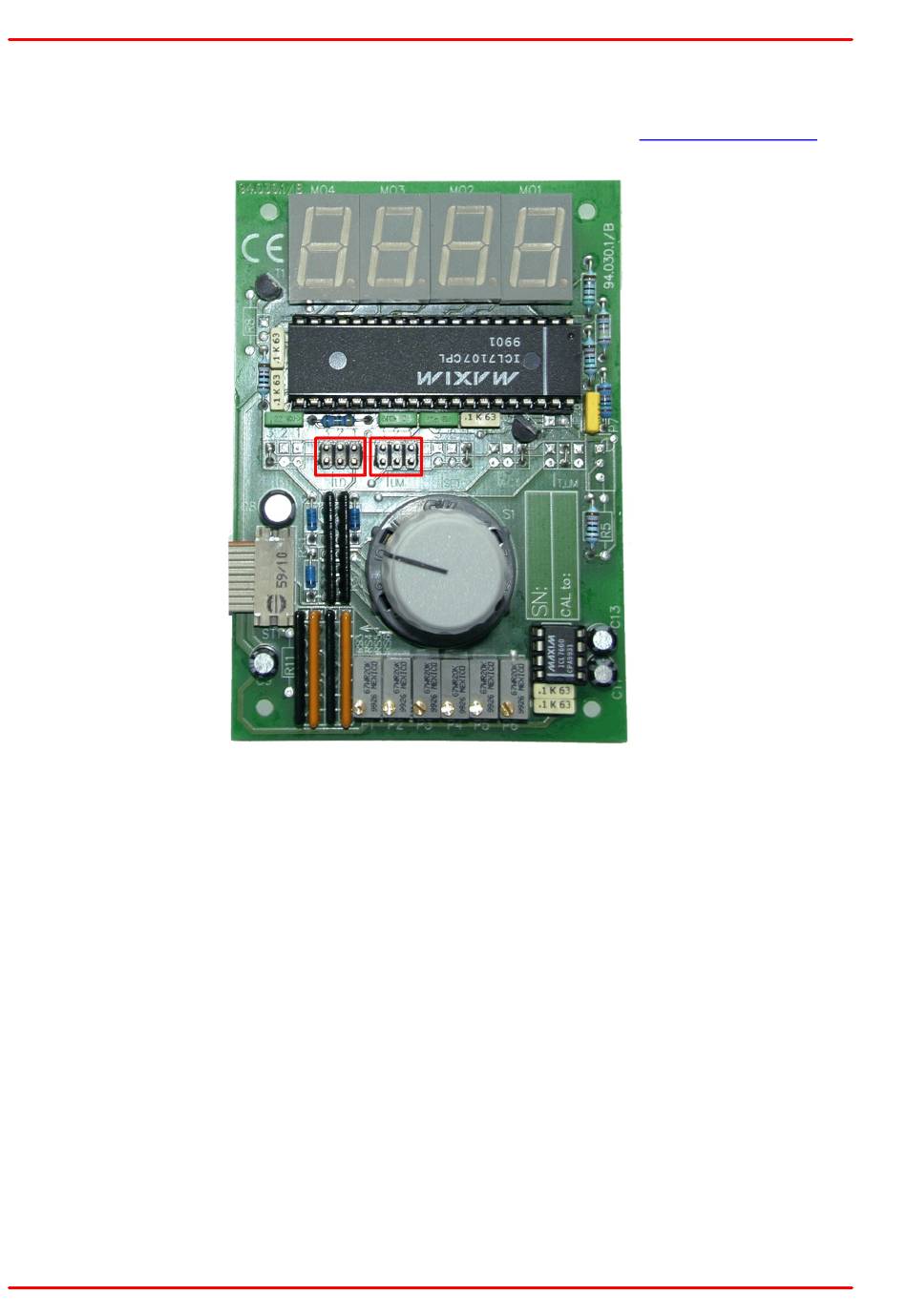

The ITC100D can be mounted directly to the ITC1xx board. Fix the display module to the
threaded holes in the heat sink using the included two screws and distance holders.
Alternatively, the ITC100D can be mounted separately.
Insert the ribbon cable connector of the ITC100D into ST3 of the ITC1xx board.
28
P1 P2 P3 P4 P5 P6
PD
LD
LD,LIM
(transducer) or R
SET
(transducer) or R
ACT
TEC,LIM
(thermistor)
SET
(thermistor)
ACT
ITC100F front panel.
