THORLABS ITC1 Series Operation Manual page 18

Oem laser diode controller
Table of Contents

Advertisement

ITC1xx

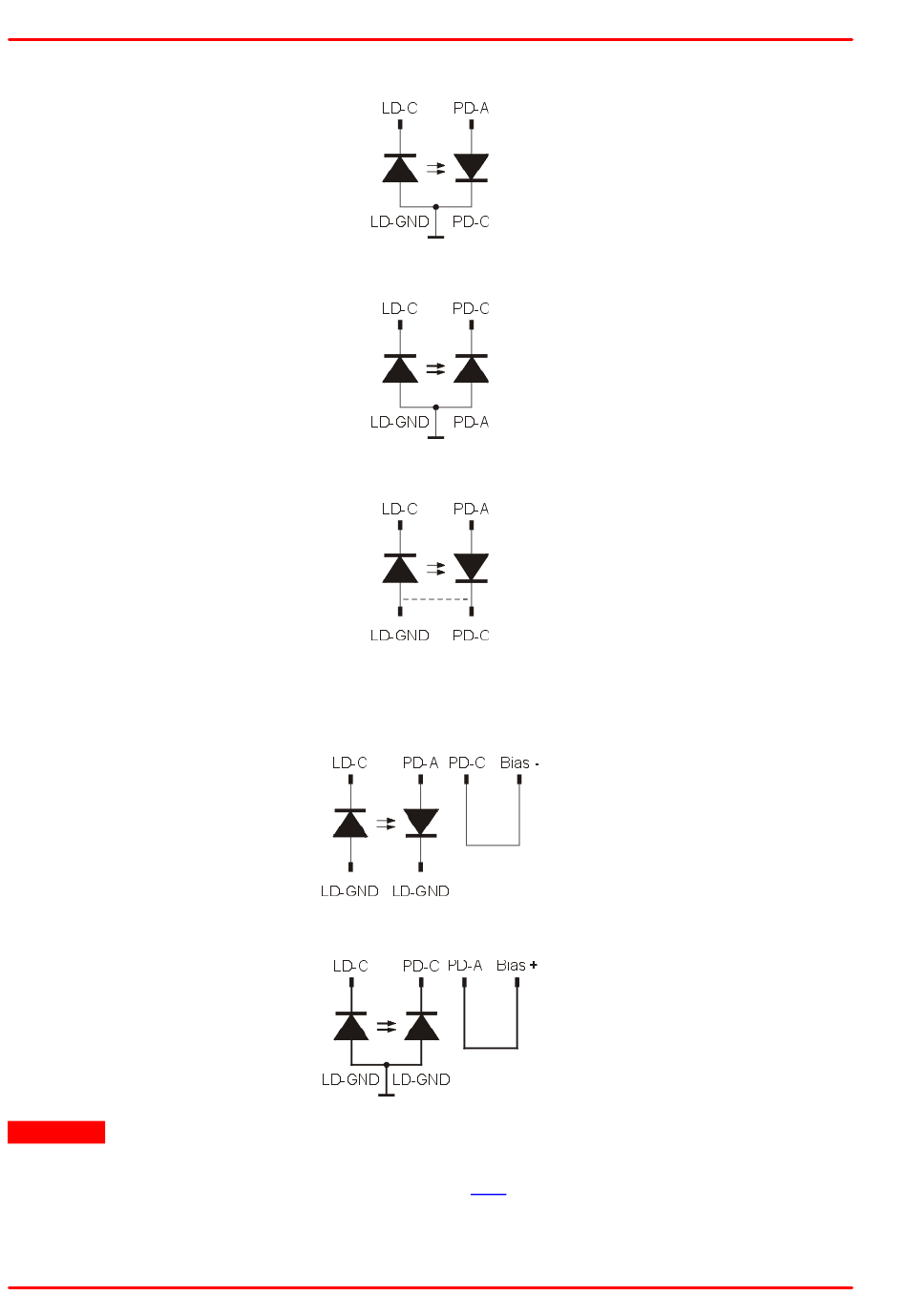

Laser diode AG, photo diode CG, no bias:
Laser diode AG, photo diode AG, no bias:
Laser diode AG, photo diode floating, no bias:
The connection, shown as dashed line, can be made either at the laser or at the ITC1xx con-
nector.
Laser diode AG, photo diode CG, -5 V bias:
Laser diode AG, photo diode AG, +5 V bias:
Attention
Reverse connection of the photo diode can permanently damage the photo diode when using a
bias voltage. Check the control voltage output I
(A19) prior to enabling a bias voltage. The
PD
output voltage must be positive!
