ITC1xx

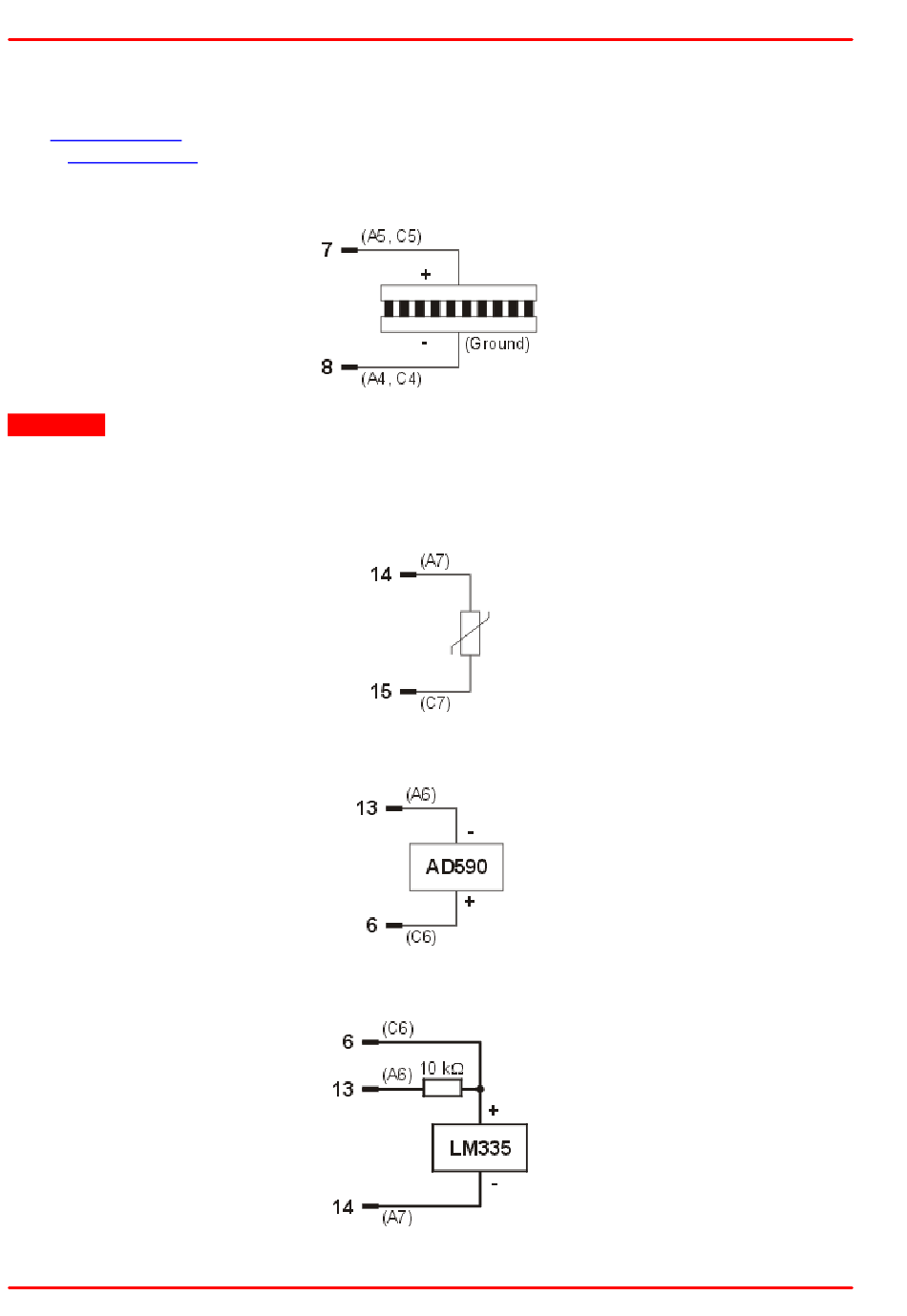

4.3 Connecting TEC and Temperature Sensor
In the drawings below, the bold pin numbers correspond to the numbering of the 15 pin D-
Sub
connector
ST2, while pin numbers in (parantesis) correspond to the pin numbering of the
64 pin
connector
ST1.
Connecting the TEC Element
Attention
Make sure that the polarity of the TEC element (Peltier) is correct! Otherwise, the temperature
will run into the wrong direction, this way leading to a thermal damage of the laser diode!
Connecting a thermistor (NTC temperature sensor)
Connecting an AD590 temperature sensor
Connecting a LM335 temperature sensor
18
© 2018 Thorlabs GmbH
