Save Image: Take a screenshot and save it as a PNG image file for later transfer off of the Mini XT.
Drill Hole: Allows you to position and "drill" a hole into your data set. The hole will display green if considered safe, and
red if the system expects the hole to contact a high amplitude signal which could represent a target. This should not be
considered as a definitive answer, but rather as an interpretive tool. Do not rely solely on this feature for your
interpretations. Please refer to the StructureScan Mini XT manual for details.
Slicing

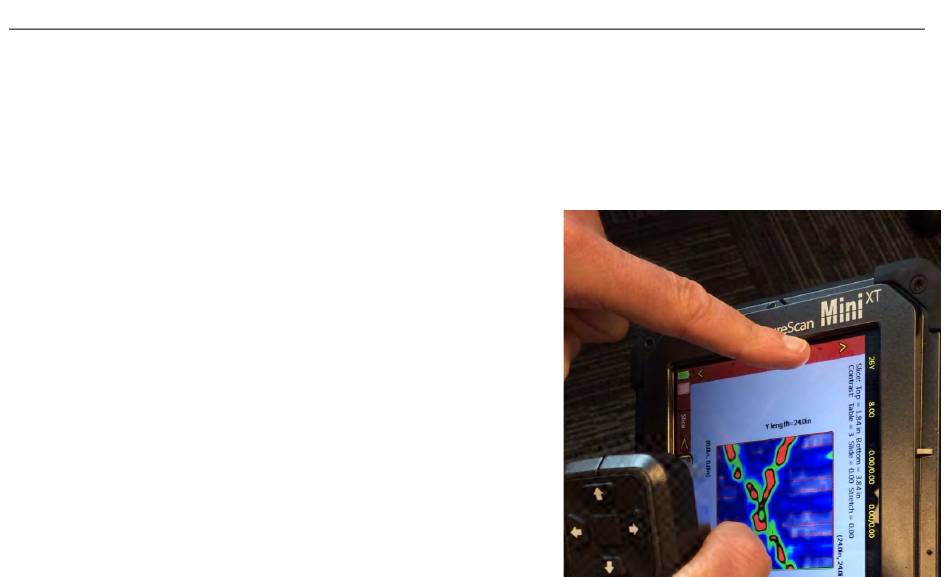

To slice through the data, select a viewpoint which shows a clear
image of the horizontal plane. Move your finger along the Slicing Bar
to drag the view slice through the data. To jump to a particular depth,
just tap the slicing bar at point corresponding to the desired depth.
As you slice, note the slice depth information displayed above the grid
view. You will see the Slice Top depth and Bottom depth. This means
that everything between those two values is displayed in the current
view. In full thickness Slice mode, the Top value will be fixed at the
surface (0).
Press the screen to reveal a crosshair you can then manipulate with
your finger.
Alternatively, you can select "Position" from the menu carousel and
use the Up/Down keypad arrows to change your slice.
