StructureScan Mini XT Quick Start Guide

Playing Back 2D Data

1
To play back previously saved files, select Playback
from the ScanEZ Main menu using the handle keypad.

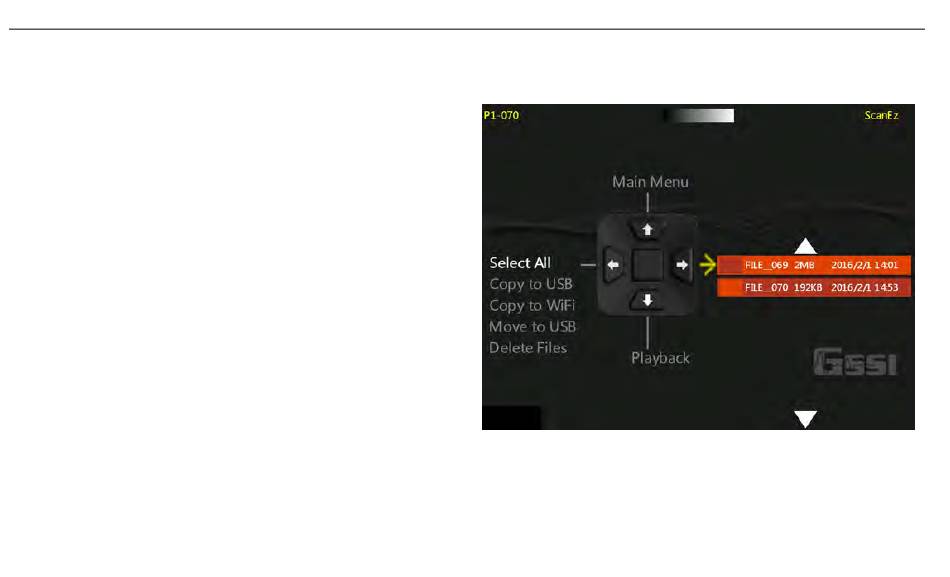

This will open the Playback and File Transfer menu
(at right).
2
Click the Right arrow on the handle keypad to activate
the file browser. You can either click the Up and Down
arrows or swipe the touchscreen to browse files.
3
Select the file(s) you want scrolling them to the top of
the list and clicking the center handle keypad button or
touching the box to the left of the file name.
4
Display the file by clicking the Left arrow to activate
the handle keypad and then down to play back the data.
5
To scroll through very long files, select Cursor from the
Menu Carousel. You will see crosshairs on the screen. You can move the crosshairs with either the arrow keys
or by touching the screen and dragging your finger. If you prefer to use the arrows keys, you can change the distance
interval per key push by changing the V-Step. Tap the +/- icons on the touchscreen to change between 1, 3, 5, 10, and
20. The value here is "scans" so if you collect 10 scans/inch and set this to 10, then each key push will move the
vertical crosshair by 1 inch. Push the middle keypad button to exit the cursor menu.
Page 13
