StructureScan Mini XT Quick Start Guide

Section 2: Using ScanEZ Mode

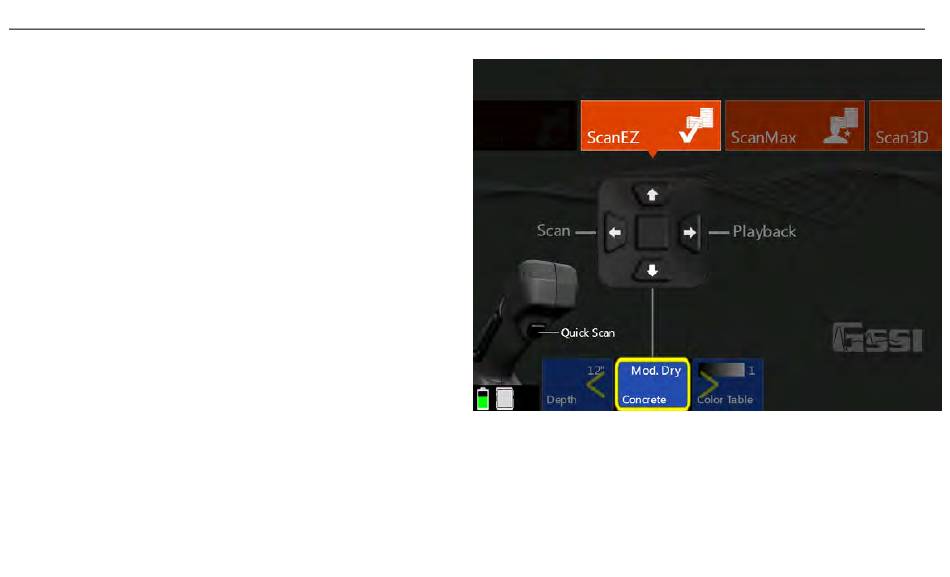

Before collecting any data, you may want to configure
your Mini XT. Choose ScanEZ from the App Carousel.
1
Choose Inspection Depth: Possible options are
4, 8, 12, 16, 20, 24 inches or 10, 20, 30, 40, 50, 60 cm.
GSSI recommends setting the inspection depth a little
deeper than required.
2
Set Concrete Curing Level: GPR energy travels at
different speeds though concrete which is at different
cure levels. Setting this accurately will allow for more
accurate depth readings. These names refer to the
concrete's cure, not any surface water. See Appendix
A in this guide for details.
3
Choose Color Table: This will set the data display
color. GSSI recommends that new users choose Color Table 1.
4
Once you have configured the XT, pull the trigger or select Scan from the handle keypad to begin collecting data.
Page 7
