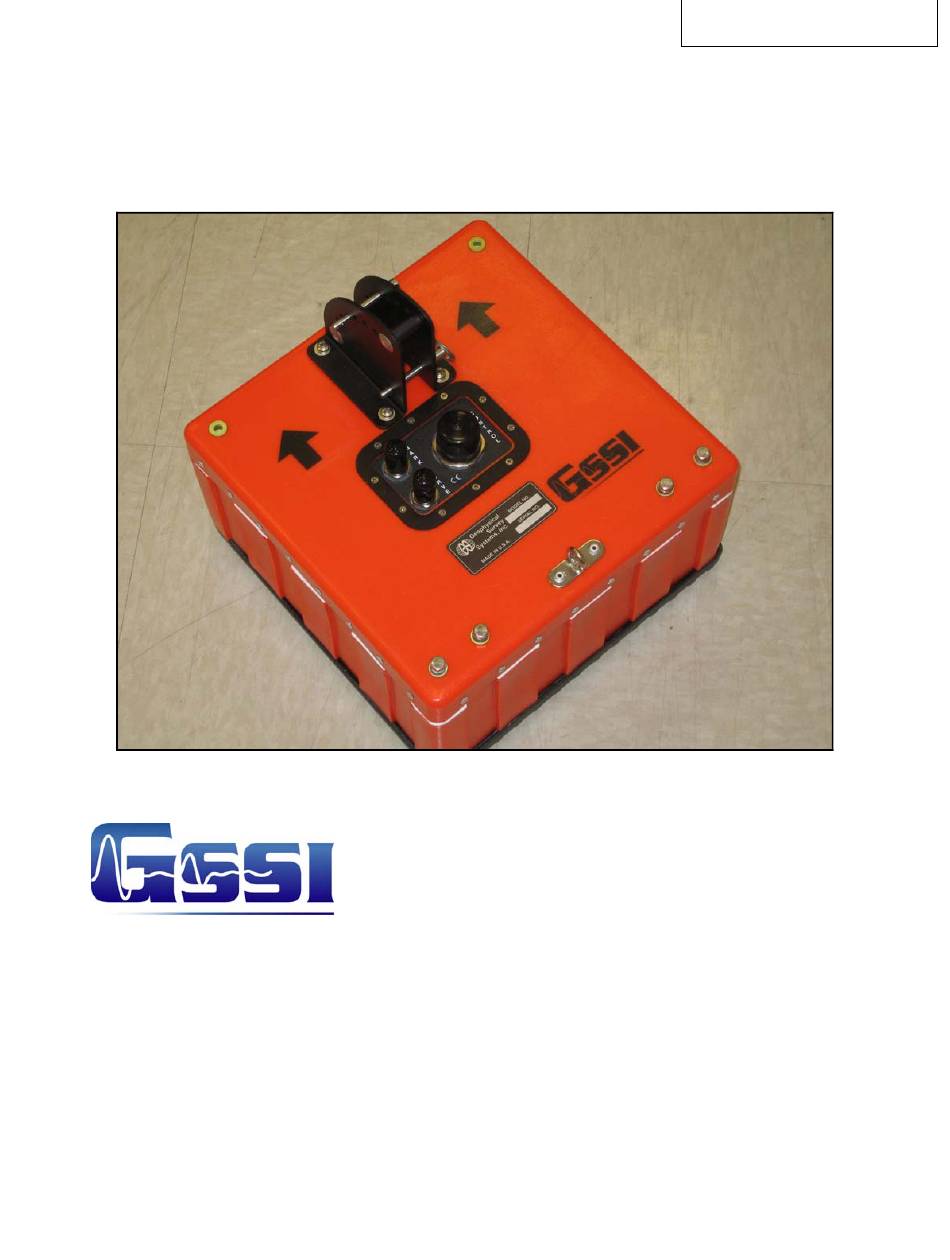

- Page 1 Pending FCC Appproval Model 5103A System Settings and User Notes The World Leader in Subsurface Imaging™ Geophysical Survey Systems, Inc. Tel 603.893.1109 • Fax 603.889.3984 sales@geophysical.com www.geophysical.com June, 2008...
- Page 2 Published by Geophysical Survey Systems, Inc. 12 Industrial Way Salem, New Hampshire 03079 Printed in the United States GSSI, RADAN, and SIR are registered trademarks of Geophysical Survey Systems, Inc.
- Page 3 System Settings and User Notes Limited Warranty, Limitations Of Liability And Restrictions Geophysical Survey Systems, Inc. hereinafter referred to as GSSI, warrants that for a period of 24 months from the delivery date to the original purchaser this product will be free from defects in materials and workmanship.
- Page 4 Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes FCC Notice (for U.S. Customers): This device complies with part 15, class F of the FCC Rules: Operation is subject to the following conditions: 1. This device many not cause harmful interference, and 2.
- Page 5 Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes For U.S. Customers Ground Penetrating Radar Coordination Notice And Equipment Registration Note: This form is only for Domestic United States users. The Federal Communications Commission (FCC) requires that all users of GPR who purchased antennas after July 15 , 2002 register their equipment and areas of operation.
- Page 6 Receipt Date Of Equipment: Fax this form to the FCC at: 202-418-1944 Mail to: Frequency Coordination Branch, OET Federal Communications Commission 445 12 Street, SW Washington, D.C. 20554 ATTN: UWB Coordination Do not send this information to GSSI. MN30-265 Rev -...
- Page 7 Geophysical Survey Systems, Inc. (GSSI) DO NOT constitute a safety or health hazard to operating personnel. Emissions from GSSI transducers are below the 10mW/cm² (100W/m²) level specified by the United States Occupational Safety and Health Administration (OSHA) regulations Paragraph 1910.97 states:...
- Page 8 Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes This page intentionally left blank. MN30-265 Rev -...
-
Page 9: Table Of Contents
Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes Table Of Contents Model 5103A Antenna ....................1 System Setup - Standard Settings ................1 Signal Position ....................2 Gain Check ......................2 Specifications ......................2 MN30-265 Rev -... - Page 10 Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes MN30-265 Rev -...
-
Page 11: Model 5103A Antenna
Model 5103A Antenna The Model 5103A antenna has greatly improved resolution performance over previous GSSI mid-frequency antennas, such as the Model 3105 (300 MHz). The Model 5103A can be used in continuous, survey wheel or static stacking modes. System Setup - Standard Settings Preset Settings: Range/Depth is approximately 2.5m (8 ft) assuming a dielectric constant of 9. -
Page 12: Signal Position
Geophysical Survey Systems, Inc. Model 5103A Antenna System Settings and User Notes Signal Position Place the antenna on the ground and use the Automatic Signal Position selection. The system will servo and place the direct coupling pulse at the top of the time range window.
