StructureScan Mini XT Quick Start Guide Page 15

Section 3: Using the Scan3D App

Scan3D is used to collect and view sections of 3D GPR data.
You can collect grids of three preset sizes: 1x1, 2x2, and 2x4 feet (30x30, 60x60, and 60x120 cm).
You can use one of the paper scan pads supplied by
GSSI as a template, create your own, or even draw a
grid on the survey surface. If you create your own or
draw a grid, it must be one of the three preset sizes
and the grid lines must be 2" (5 cm) apart.
Tape your scan template securely to the concrete. If
using a GSSI supplied pad, mark the concrete at the
holes in the corners. This will make it easier to draw
objects onto the concrete during data interpretation.

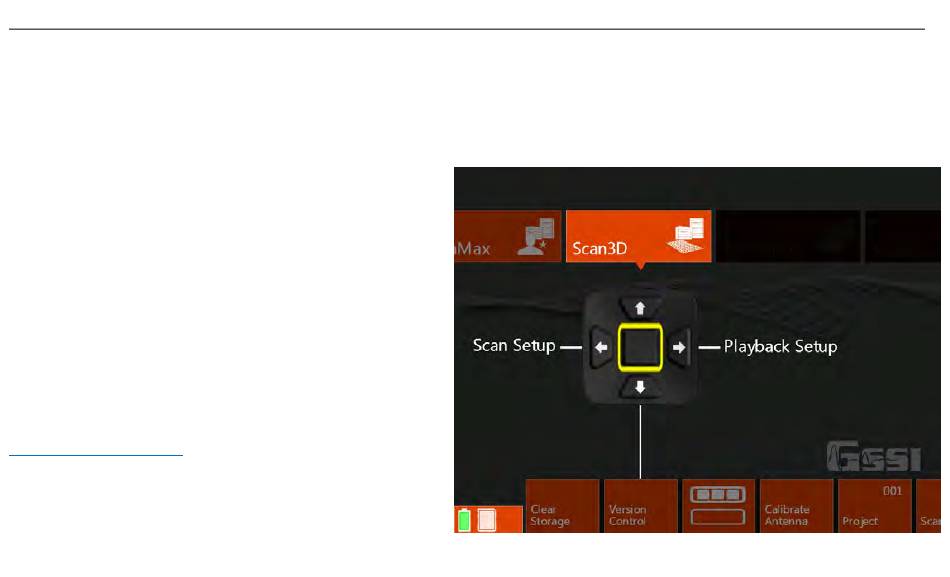

To begin, select Scan3D from the App Carousel and
then select Scan Setup from the handle keypad.
Data Collection Grids are free to download. Go to
www.geophysical.com, select Products > StructureScan
> StructureScan Mini XT. Scroll down the page until
you see "Resources." You can find the 1x1, 2x2, and
2x4 foot (30x30, 60x60, and 60x120 cm) grids available
for download. You can also contact your GSSI sales
representative if you would like a purchase a pack of printed grids.
