StructureScan Mini XT Quick Start Guide

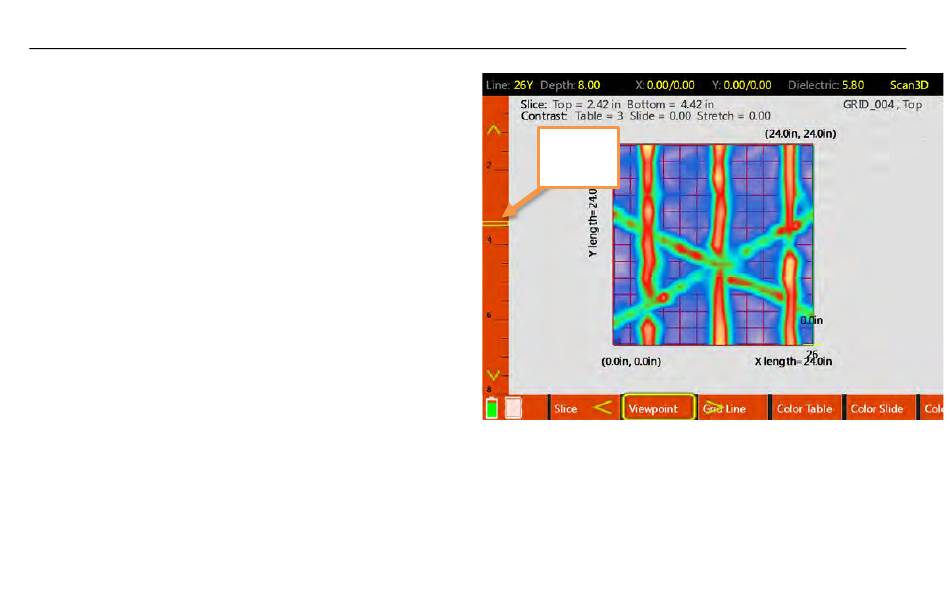

Analyzing 3D Data
The menu carousel will have the following options once the
grid displays:
Cursor: Toggle the crosshairs On/Off.
Position: Selecting this option will allow you to use the
Up/Down keypad arrows instead of running your finger
along the Slicing Bar to change your slice position.
Slice: This toggles between three horizontal plane slice
thicknesses: Thin: ½" (1 cm), Thick: 2" (4 cm) and Full
thickness. A full thickness slice has the top locked at the
surface and you can move the bottom of the slice. This is
useful if you want to core all the way through the slab and
need to see everything in one view (like an X-ray image).
Viewpoint: Toggles through the multiple grid views plus
the 2D linescan image.
Grid Line: Toggles to the individual lines in the grid which are then viewed in the 2D linescan and the oblique 3D views.
The currently selected line is noted at the top-left corner of the screen.
Contrast: Allows you to change the distribution of the color table along the amplitude scale. This is useful for
highlighting certain areas of the data such as bright reflection from metals. The current color values are displayed above
the grid image.
Slicing
Bar
Page 20
