StructureScan Mini XT Quick Start Guide
Recalling a Grid for Review
1

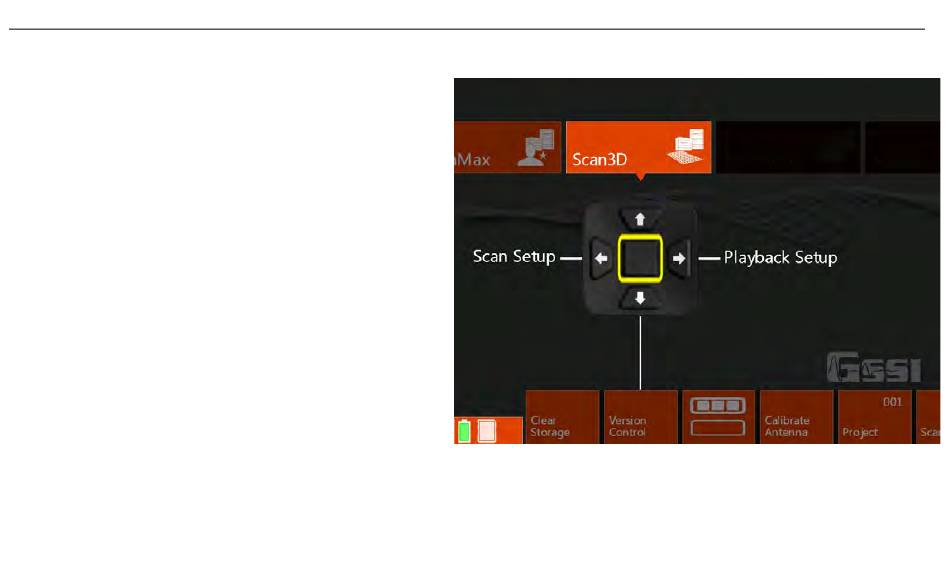

After you have finished collecting a grid and
selected Close Grid, you will see the Scan3D Scan
Setup screen. Click Up on the handle keypad to
return to the Scan3D Main Menu (at right).
2
Click Right to go to Playback Setup.
3
Click Right to go to Files.
4
Click Right to activate the file list and then
Up/Down or scroll with your finger to line up the
desired Grid file with the yellow selection arrow.
5
Click the middle handle keypad button or tap the
empty box next to the Grid file to select it.
6
Click Left to activate the handle keypad and then
Down to select Playback. You will see a status bar
which says "Loading Grid." The grid will automatically display once it is finished loading.
Page 19
